Product Introduction & Engineering Value
Communication failures inside a Mark VI turbine control system rarely originate from field wiring alone. In many cases, the VCMI communication board becomes the critical link between the control processor and distributed I/O, making it one of the most important boards in the cabinet.
The GE IS200VCMIH2BEE is the Master Communication Controller Board designed for GE Mark VI Speedtronic systems. It manages high-speed data exchange across the VME backplane and IONet while supporting Triple Modular Redundancy (TMR) through Software Implemented Fault Tolerance (SIFT), improving system availability in turbine control applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | IS200VCMIH2BEE |
| Series | Mark VI Speedtronic |
| Product Type | Master Communication Controller Board (VCMI) |
| System Architecture | VME Bus |
| Primary Function | Controller-to-I/O Communication |
| Network | Unit Data Highway (UDH) / IONet |
| Redundancy | Triple Modular Redundancy (TMR) |
| Communication Ports | Three IONet Ethernet Ports |
| Processor | Texas Instruments TMS320C32 DSP |
| Memory | Dual-Port Memory, SRAM, Flash Memory |
| Fault Tolerance | SIFT (Software Implemented Fault Tolerance) Voting |
| Installation | 6U VME Rack |
| Application | Gas and Steam Turbine Control Systems |
Field Application & The “Trench” Experience
A combined-cycle power plant experienced intermittent communication alarms during turbine startup. Initial troubleshooting focused on fiber connections and remote I/O racks, but diagnostics eventually identified an aging VCMI board causing inconsistent data synchronization across the TMR network.
After installing a verified IS200VCMIH2BEE, engineers confirmed normal SIFT voting, restored communication with all remote I/O racks, and completed startup without additional controller modifications. Because the existing configuration database remained intact, commissioning time was limited to standard communication verification and redundancy testing.
Typical applications include:
- Gas turbine combustion sequencing
- Steam turbine governor control networks
- Generator protection and distributed turbine I/O communication

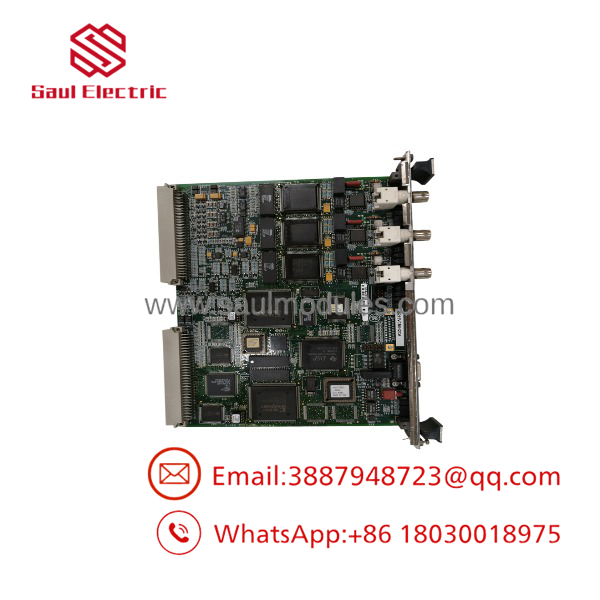

IS200VCMIH2BEE

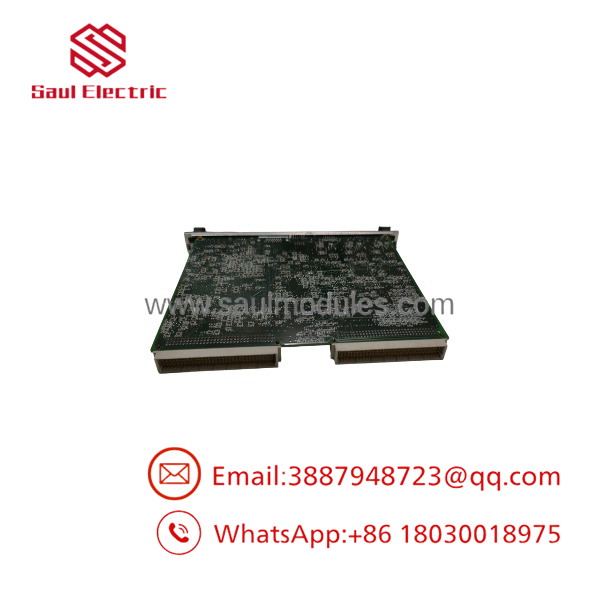

IS200VCMIH2BEE
Transparency SOP: QA & Testing
Inspection Procedure
- Verify part number, hardware revision, and faceplate identification.
- Inspect PCB surfaces for damaged traces, corrosion, connector wear, and unauthorized repairs.
- Check processor, memory devices, and communication circuitry for physical integrity.
- Test communication functions using a compatible Mark VI environment where available.
- Verify LED diagnostics, reset circuitry, and Ethernet communication ports.
- Package the board in anti-static protection with impact-resistant shipping materials.
Both New Surplus and professionally refurbished inventory undergo documented inspection before shipment.
The Veteran’s Tech Trap Guide
⚠️ Don’t Ignore the Hardware Revision
The IS200VCMIH2 family contains multiple hardware revisions. Always confirm the complete suffix (H2BEE) before ordering to avoid compatibility issues with the installed Mark VI controller.
⚠️ Verify the TMR Configuration
The IS200VCMIH2BEE is intended for TMR communication architectures. Installing an incorrect board variant may interrupt controller redundancy or prevent proper IONet communication.
PRO TIP:
Before replacing the VCMI board, document controller diagnostics and verify fiber-optic IONet cables. Communication alarms are frequently caused by damaged fiber connections rather than a failed controller board.
Dynamic FAQ
Q1. What is the primary function of the IS200VCMIH2BEE?
It acts as the Master Communication Controller Board, transferring data between the Mark VI controller, VME backplane, and distributed I/O through the Unit Data Highway (UDH).
Q2. Is this board suitable for TMR systems?
Yes. The IS200VCMIH2BEE is designed for Triple Modular Redundant (TMR) configurations and supports three IONet communication channels with SIFT voting.
Q3. Can it replace every VCMI board?
No. Always verify the complete part number, hardware revision, firmware compatibility, and Mark VI system configuration before installation.
Q4. Is New Surplus inventory genuine?
Reputable suppliers inspect serial numbers, labels, physical condition, and functional performance before shipment. Original factory packaging may be available for some New Surplus units.
Q5. What should be checked before replacing the board?
Review controller diagnostics, inspect fiber-optic IONet connections, confirm VME rack compatibility, and back up the turbine control configuration before removing the existing board.
Q6. Does the module include a warranty?
Most authorized industrial automation suppliers provide a warranty for both New Surplus and refurbished inventory, with the coverage period depending on the product condition and supplier policy.
