GE IS410SRLYS2A Mark VIe Relay Output Terminal Board

Description

Product Introduction

The GE IS410SRLYS2A is a compact, simplex relay output terminal board engineered for GE Speedtronic Mark VIe turbine and DCS control platforms. Positioned as a direct field termination layer, it hosts 12 Form C electromechanical relays designed to switch field solenoids, motor contactors, annunciator panels, and safety interlocks.

Automation leads and turbine engineers utilize the SRLYS2A module in Mark VIe distributed I/O topologies because it eliminates complex interconnect cabling. By allowing an I/O pack (such as a YDIO or YRLY processor module) to plug directly onto the board’s embedded connectors, field commands are converted seamlessly from digital network packets to physical dry-contact switching right at the terminal strip.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It’s 2:10 AM during a heavy load adjustment at a combined-cycle facility, and an auxiliary lube oil pump fails to start on auto-demand. The Mark VIe software logic issued the start command, but the field pump contactor never pulled in. Diagnostics isolate the fault to a welded output contact on Channel 4 of an aging relay terminal board caused by inductive arc erosion over thousands of cycles. Replacing the faulty IS410SRLYS2A board and snapping the existing Mark VIe I/O pack onto the new board restores clean contact execution in minutes without requiring software re-flashing.

• Gas Turbine Systems – GE Frame 6/7/9 Units – Driving fuel purge valves, ignition transformers, and trip solenoids.
• Steam Turbine Controls – Combined-Cycle Plants – Actuating gland steam control valves and extraction non-return valve solenoids.
• Balance of Plant (BOP) DCS – Industrial Utilities – Controlling high-power field starters, breaker trip coils, and alarm horns.

Field Case Study

A gas compression station experienced intermittent tripping on its master safety loop due to contact chatter on a worn terminal relay. We shipped a fully tested IS410SRLYS2A replacement board within 12 hours. The instrument technician unplugged the top-mounted I/O pack, unlanded the terminal block harness, swapped the terminal base, and re-attached the pack—eliminating the intermittent trip and securing an estimated $110,000 in continuous pipeline throughput.

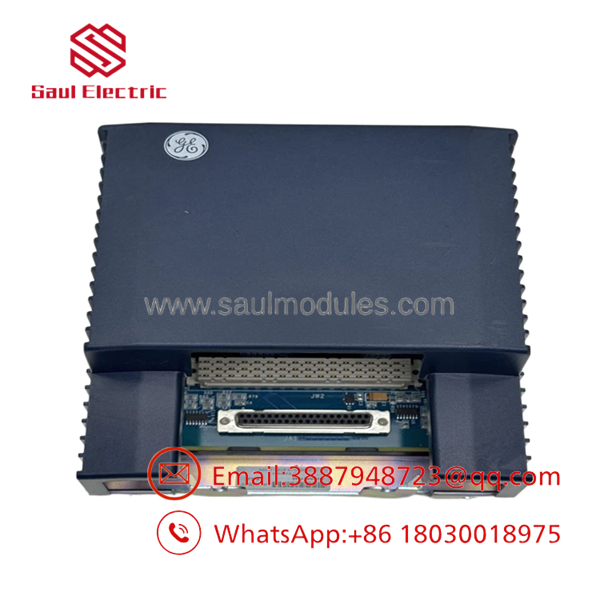

IS410SRLYS2A

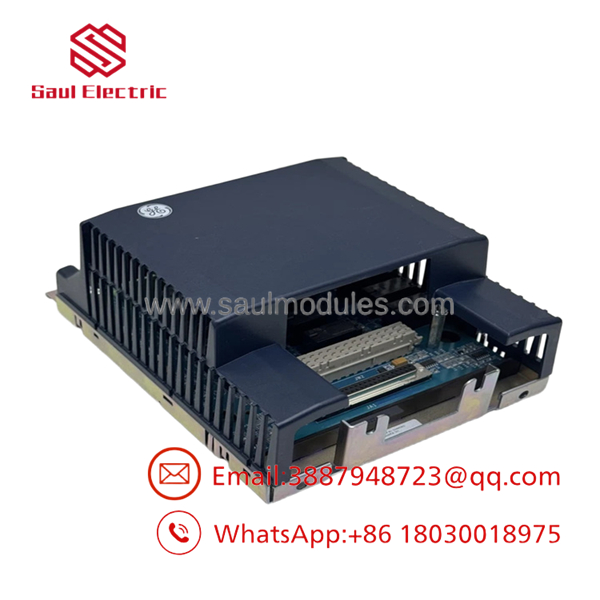

IS410SRLYS2A

Transparency SOP: Quality Assurance & Testing

We test every Mark VIe terminal board before shipment. Here is our exact internal verification process for the IS410SRLYS2A:

1. Visual & Mechanical Inspection: Check terminal screw threads, inspect plastic housing latches, and audit multi-pin I/O pack connectors for bent or recessed pins.
2. Cold Coil & Contact Resistance Audit: Measure DC coil resistance across all 12 relays and check un-energized Form C contact continuity (NC positions).
3. Power-On & Relay Actuation Sweep: Connect a live Mark VIe I/O test pack to the board. Sequentially energize and de-energize all 12 channels, verifying < 0.05 Ω contact resistance across NO and NC terminals under load.
4. Isolation Voltage Test: Perform high-potential insulation testing between field terminal channels and the low-voltage logic interface to guarantee total electrical isolation.
5. Revision Level Verification: Document the exact S2A revision tag on the QA certificate.
6. ESD Packaging: Enclose inside static-shielding bags with fresh desiccant prior to custom foam packaging.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ 1. Always Install External RC Snubbers Across Inductive Loads!

The relays on the IS410SRLYS2A drive pilot-duty loads, but switching large DC solenoids or heavy relay coils directly creates severe back-EMF voltage spikes. Without an external suppressor (flyback diode for DC, or RC snubber for AC) across the field load, inductive arcing will rapidly pit or weld the relay contacts!

❗ 2. Verify Simplex vs. Redundant System Architecture

The SRLYS2A is a Simplex terminal board designed for single I/O pack configurations. Do not attempt to use this card in place of a TMR (Triple Modular Redundant) or Dual-redundant terminal board like the TRLY series, as the bus connector pinouts and voting architectures differ completely!

⚠️ 3. De-energize External Pilot Power Before Disconnecting Terminals!

While the Mark VIe I/O pack operates on low-voltage 28V DC bus power, the contacts on the SRLYS2A board often carry 120 VAC or 125 VDC plant control power. Always isolate field contact breakers before unlanding wires or removing the terminal cover to avoid electrical arc flash hazards.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the hot-swappable?

A: The top-mounted I/O pack can be un-clipped while powered in certain Mark VIe architectures, but replacing the underlying terminal board requires de-energizing field pilot power and unlanding field wiring. Always follow site-specific safety and LOTO procedures.

Q: What is the difference between IS400SRLYS2A and ?

A: In GE Mark VIe nomenclature, IS400 typically designates the bare printed circuit board assembly, whereas IS410 represents the complete manufactured assembly including the protective plastic base housing and terminal hardware.

Q: Can this board be mounted on standard DIN rail?

A: Yes, the base housing includes integrated DIN-rail mounting clips for standard 35 mm DIN rail installation, as well as mounting holes for direct panel surface attachment.

Q: Is this unit new or refurbished, and what warranty covers it?

A: We supply this module as New Surplus stock (unused factory original surplus). Every unit includes our full 12-month operational replacement warranty.

Q: Why choose New Surplus over OEM factory lead times?

A: Sourcing New Surplus from our available inventory eliminates multi-month factory lead times, avoids rush surcharges, and provides an immediate drop-in replacement unit to keep your turbine online.
