GE VMIVME1150 VME Digital I/O Module

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The GE VMIVME1150 is a VMEbus digital input module used in industrial control and embedded systems. It is designed for high-noise environments where optically isolated inputs help protect the control architecture from field-side disturbances.

Buying this as New Surplus is a practical TCO decision for older VME installations. It reduces stock-out risk, shortens recovery time, and avoids the higher cost of emergency sourcing when lead time variability and obsolescence pressure are both high.

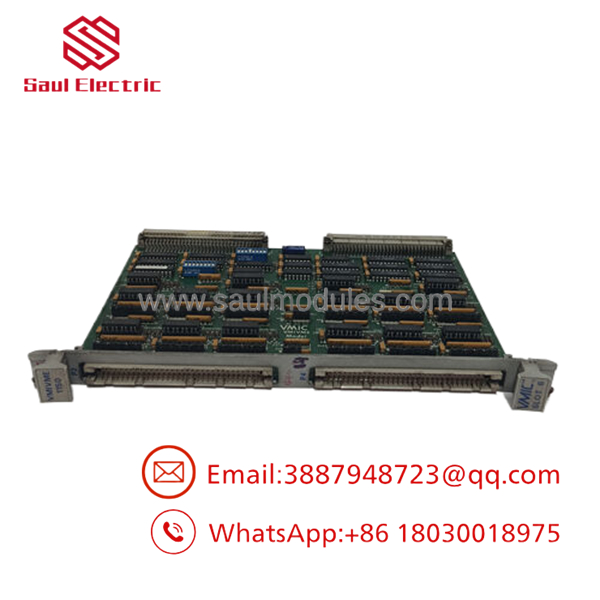

VMIVME1150

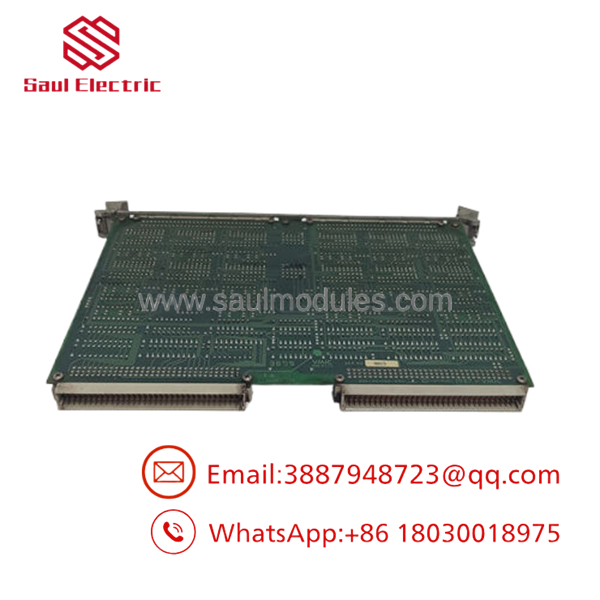

VMIVME1150

Installation & Configuration Guide

Stage 1: Pre-Installation

1. Apply lock-out/tag-out and confirm the system is de-energized.
2. Use an ESD wrist strap and insulated tools.
3. Photograph the board, connectors, jumpers, and cabling before removal.
4. Record the installed channel mapping and any site-specific configuration details.

Stage 2: Removal

1. Shut down the host system using the approved sequence.
2. Label every cable and module position before disconnecting it.
3. Remove the module straight out to avoid bending VME connector pins.
4. Inspect the backplane, card guides, and connectors for damage or contamination.

Stage 3: Installation

1. Match the replacement module to the documented original configuration.
2. Insert the module evenly into the VME backplane and secure it.
3. Reconnect all cables exactly as recorded.
4. Confirm all terminal or field connections match the original layout.

Stage 4: Power-On & Testing

1. Check supply rails for shorts before energizing.
2. Power up and verify normal status indications.
3. Confirm each input channel responds correctly to field signals.
4. Run a controlled functional test before returning the system to service.

Firmware/Software Versions & Upgrade Notes

This module should be matched to the same board-level configuration and host software baseline already validated at the site. In legacy VME systems, the main failure mode is usually configuration mismatch rather than raw hardware failure.

Avoid firmware changes during replacement unless you already have compatibility data and rollback coverage. The safest approach is a like-for-like swap with the existing configuration preserved.

Frequently Asked Questions

Q: Is this really New Surplus?
A: It should be supplied as New Surplus / Original New, not refurbished. That means traceable legacy inventory rather than a repaired module.

Q: Why is it cheaper than OEM new but not as cheap as refurb stock?
A: New Surplus usually comes from excess inventory, project closeout, or secured distributor stock. That lowers price versus OEM list while keeping a stronger reliability profile than uncertain-condition parts.

Q: Is VMIVME1150 obsolete?
A: Treat it as a legacy VME spare and check the installed platform’s lifecycle status. If your system still depends on it, keep buffer stock and plan for last-time-buy coverage.

Q: Can I hot-swap it?
A: No, not as a default assumption. VME I/O modules should be replaced under a controlled outage unless the site procedure explicitly allows otherwise.

Q: Will my settings transfer automatically?
A: No. Record the channel mapping and any site-specific logic before removal. The replacement should mirror the original setup exactly.

Q: What warranty terms are typical?
A: New Surplus industrial parts often carry vendor-backed warranty coverage, but the exact term depends on the supplier. Confirm warranty length, return policy, and serial traceability before purchase.
