Product Introduction
The Hakko Fuji Electric V810T (commonly ordered as part of the Monitouch V810iT series) is a high-performance 10.4-inch industrial Human-Machine Interface (HMI) panel engineered for demanding process automation environments. Functioning as a centralized operator console, it translates real-time PLC register data into clear dynamic graphics, trending charts, recipe configurations, and active alarm displays.
Designed with robust serial and Ethernet connectivity, the V810T supports simultaneous communication with multiple controller brands (such as Siemens, Allen-Bradley, Mitsubishi, and Omron). Its IP65-rated front bezel withstands liquid splash and dust exposure, making it a reliable visualization workhorse for factory floor control enclosures.
Key Technical Specifications
| Parameter | Value / Feature |
| Manufacturer | Hakko Electronics / Fuji Electric |
| Product Series | Monitouch V8 Series |
| Model Variants | V810T, V810iT, V810iT-10 |
| Display Size & Type | 10.4-inch TFT LCD |
| Colors | 65,536 colors (TFT Display) |
| Resolution | VGA (640 × 480) or SVGA (800 × 600) depending on sub-model |
| Touch Screen Type | Analog Resistive |
| Serial Ports | COM1 (RS-232C), COM2/COM3 (RS-422/485) |
| Ethernet & Storage | Built-in 10/100 Mbps Ethernet (iT models), CompactFlash (CF) slot, USB |
| Supply Voltage | 24 V DC (±10%) |
| Protection Rating | IP65 equivalent (front panel water/dust proof) |
Application Scenarios & The “Trench” Experience
During a fast-paced production run on an automated packaging line, the touchscreen digitizer on the main operator panel fails, leaving operators unable to clear jam resets or select product recipes. Because the line relies on multi-driver comms to both a PLC and a servo drive, dropping in a drop-in replacement Hakko Fuji V810T and flashing the saved screen project via CF card restores full line operation within 30 minutes, avoiding extended downtime.
- Automated Packaging Machinery: Manages fill rates, cartoner indexing, and product count visualization.
- Plastic & Rubber Injection Molding: Displays real-time temperature profiles, pressure curves, and clamp position tracking.
- Food & Beverage Processing: Serves as a CIP (Clean-in-Place) and batch mixing terminal with IP65 washdown protection.
- Material Handling & Conveyor Systems: Provides line status overview, sensor monitoring, and emergency fault diagnostics.
Transparency SOP: Quality Assurance & Testing
- Inbound Physical Inspection: Inspect display glass for scratches or keying damage, verify corner gasket integrity, and check terminal blocks and serial connectors.
- Benchtop Power & Boot Check: Apply 24 V DC power; monitor POST sequence, check backlight intensity and evenness, and verify zero dead pixels.
- Touch Grid & Calibration Sweep: Perform full-surface resistive touch test across all screen quadrants to confirm accurate point registration.
- Comms & Peripheral Port Test: Download test project files using V-Server / Component Builder via USB/Ethernet; exercise COM1/COM2 ports under load to verify transceiver health.
- ESD & Protective Shipping Packaging: Enclose unit in anti-static shielding bags, cushion with customized foam inserts, and place in rigid corrugated export boxes.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Check Model Suffixes (T vs. iT): “iT” variants include an integrated Ethernet port, whereas standard “T” variants may rely solely on serial communications unless an expansion unit is installed. Verify your network cabling before purchasing a replacement.
- ❗ Backlight Aging & Replacement: Older V8 units utilize CCFL backlights. If the screen appears dim or has a pinkish hue upon boot up, the backlight tube is near end-of-life and should be serviced or replaced before total screen blackout occurs.
- ⚠️ Use Correct Programming Software: V8 Series HMIs require Monitouch V-SFT (Version 5 or higher) for screen design and firmware updates. Attempting to upload using older UG-Series software tools will result in transfer errors.
- ❗ Retain System Memory Battery: The internal lithium battery retains real-time clock (RTC) data and SRAM recipe memory. Replace the battery every 3–5 years to prevent recipe data loss during prolonged facility power shutdowns.

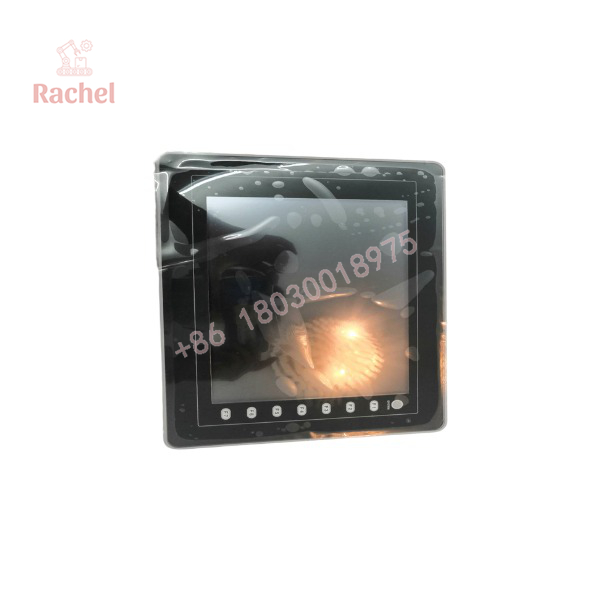

V810iT

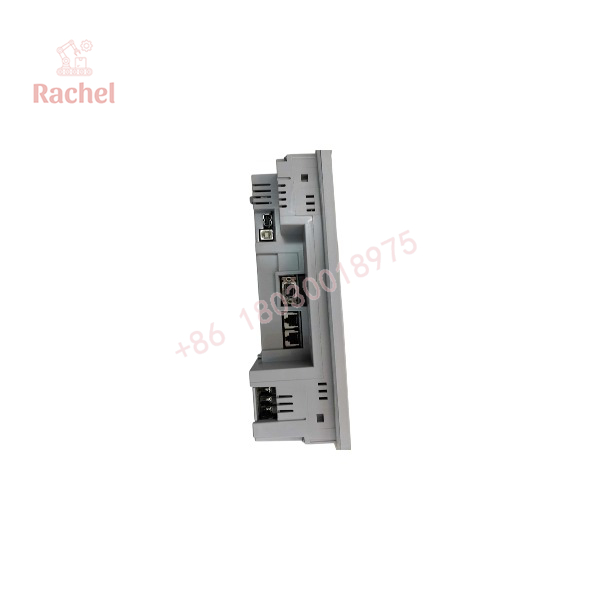

V810iT
Frequently Asked Questions (FAQ)
Q: Is the Hakko V810T panel a direct drop-in replacement for older UG330 or V710 panels?
A: Physical cutout sizes and panel dimensions may differ slightly. V-SFT software features built-in project conversion utilities to convert older UG/V7 screen projects to the V8 architecture.
Q: Can I backup the runtime project directly from a V810T panel without source files?
A: Yes, provided the original system integrator did not upload the project with password protection or disable the upload function during transfer.
Q: What power supply requirement does the V810T require?
A: The panel requires a regulated 24 V DC power supply. Operating outside the 21.6 V DC to 26.4 V DC window can trip internal fuse protection.
Q: What memory card format does the V810T support for data logging?
A: The panel features a standard CompactFlash (CF) card slot for memory logging, project transfer, and recipe backups.
Q: What warranty applies to this surplus Fuji/Hakko display module?
A: All clean surplus and bench-tested Hakko Fuji V810T operator interfaces include a full 12-month replacement warranty from the delivery date.
