Hilscher CIF 104-DNM DeviceNet Master Card | PC/104 Bus Interface

Description

Product Introduction & Engineering Value

Trying to tie an older PC/104 embedded controller into a sprawling DeviceNet sensor network without redesigning the backplane? The Hilscher CIF 104-DNM interface card bridges that gap by slotting directly into standard PC/104 stacks, giving legacy systems full DeviceNet master capabilities.

Engineered with onboard dual-port memory and an independent processor core, this communication board handles protocol processing locally. Plant engineers rely on its deterministic data handling to keep distributed I/O drops synchronized across high-speed packaging lines and automated material handling systems.

Technical Specifications

• Bus Interface: PC/104 standard bus architecture (8/16-bit data bus)
• Network Protocol: DeviceNet Master (compliant with ODVA specifications)
• Microcontroller Core: High-performance local communication processor with zero host CPU load
• Memory Architecture: Dual-port RAM for fast, deterministic data exchange with the host system
• Physical Connection: Standard 5-pin open-style connector for DeviceNet trunk lines
• Baud Rates Supported: 125 kbps, 250 kbps, and 500 kbps (automatically selectable or fixed via software)
• Diagnostic Indicators: Dual LED array for module status and network communication health
• Power Supply Requirements: +5 VDC supplied directly via the PC/104 stack bus
• Operating Temperature Range: 0°C to 55°C (32°F to 131°F) standard industrial threshold

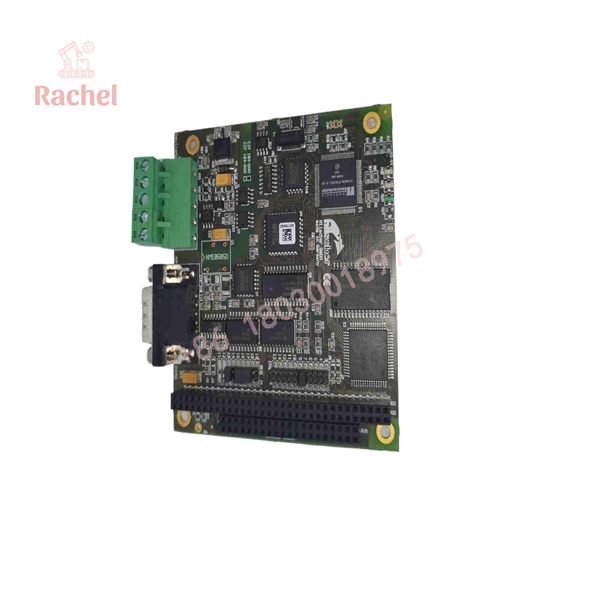

CIF 104-DNM

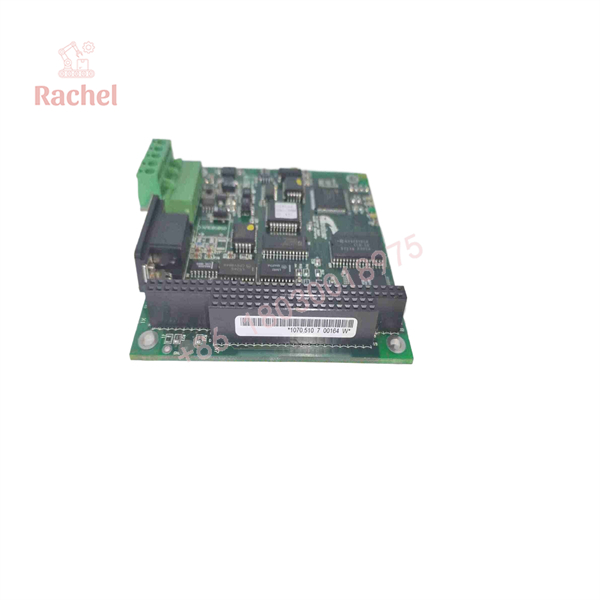

CIF 104-DNM

Field Application & The “Trench” Experience

During a scheduled weekend overhaul at an automotive parts stamping facility, an embedded PC/104 rack controlling a DeviceNet conveyor line suffered a total communication card failure. The replacement lead time from the OEM was quoted at four weeks, risking a catastrophic missed delivery window. The automation lead pulled a verified surplus Hilscher CIF 104-DNM from the facility’s spare stock, mounted it into the stack, loaded the network configuration files, and restored full DeviceNet master polling before the Monday morning shift change.

Specific Niche Application Scenarios:

• Embedded Mobile AGV Controllers: Managing real-time DeviceNet floor sensor communication on automated guided vehicles.
• Packaging Machine PC/104 Racks: Polling remote valve islands and photo-eye clusters across high-speed wrapping skids.
• Semiconductor Wet Bench Sub-Systems: Interfacing legacy PC/104 automation computers with distributed I/O valve manifolds.

Transparency SOP: QA & Testing

1. Visual Bus Pin Audit: Inspect all PC/104 stacking pins and the 5-pin DeviceNet connector under optical magnification for bending, oxidation, or solder bridging.
2. Static Continuity Check: Verify power rail isolation across the +5V bus pins and ground plane to ensure no internal short circuits exist.
3. Dual-Port RAM Bench Test: Place the card onto a specialized test fixture running Hilscher diagnostic software to read and write memory sectors, verifying zero bit errors.
4. Network Protocol Stress Loop: Connect the board to a live DeviceNet test loop operating at 500 kbps, simulating maximum master polling traffic for 24 continuous hours.
5. Thermal Chamber Burn-In: Run the interface board inside an active 50°C thermal cabinet to screen out premature component failure.

The Veteran’s Tech Trap Guide

⚠️ PRO TIP: Always verify your node address (MAC ID) and network baud rate configurations in the configuration software before mounting the card into a sealed enclosure. Accessing physical jumpers or switches on a deeply stacked PC/104 board after installation often requires tearing down half the chassis.

Warning: Never stack or unstack PC/104 modules while the system power supply is active. Doing so can cause electrical arcing across sensitive bus pins, instantly frying the dual-port RAM controller and permanently damaging the host motherboard.

Dynamic FAQ

1. Is this Hilscher CIF 104-DNM unit brand new or surplus? We supply verified New Surplus and fully bench-tested refurbished stock, backed by complete historical traceability.
2. What warranty comes with this communication board? Every unit includes our standard 12-month replacement warranty covering technical defects and operational performance.
3. Does this card function as a DeviceNet Master or Slave? The CIF 104-DNM is specifically engineered as a full DeviceNet Master (Scanner) node, capable of controlling multiple slave devices on the network.
4. What software tools are required to configure the card? Configuration and diagnostic tests are managed using Hilscher’s standard configuration software utility suite and driver packages for the host operating system.
5. How is power supplied to the communication board? The module draws its required operating power directly from the +5V DC rail of the PC/104 stack backplane.
