Core Product Summary
The HIMA F3 DIO 16/8 01 is a safety-related remote I/O module within the HIMatrix product family, designed for functional safety and process automation control architectures up to SIL 3 (IEC 61508) and PL e (EN ISO 13849-1). Housed in a compact metal enclosure, this module integrates 16 digital inputs, 8 two-pole digital outputs, and 2 pulsed outputs to process field signals and drive safety-critical actuators.
Engineered for distributed safety networks, the unit connects directly via two RJ-45 Ethernet ports supporting safeethernet communication for safety-related data exchange and standard protocols for configuration. It operates on a 24 V DC power supply and features line diagnosis functions capable of detecting open circuits and short circuits on the field outputs. The module is suitable for decentralized mounting in industrial automation control systems and Zone 2 hazardous areas.
Key Technical Specifications
| Parameter | Specification Value |
| Product Type | Safety-Related Remote I/O Module |
| System Series | HIMatrix F3 |
| Safety Compliance | SIL 3 (IEC 61508), PL e / Cat. 4 (EN ISO 13849-1) |
| Digital Inputs | 16 non-galvanically separated digital inputs (24 V DC) |
| Input Voltage Levels | High signal: 15 to 30 V DC; Low signal: max. 5 V DC |
| Digital Outputs | 8 non-galvanically separated, 2-pole switching digital outputs |
| Output Rating | 2 A max. per channel (< 40 °C); 1 A max. (40 to 60 °C); 8 A total permissible |
| Pulsed Outputs | 2 pulsed outputs (approx. 60 mA) for sensor circuit testing |
| Network Communication | 2 x RJ-45, 10BASE-T / 100BASE-Tx with integrated switch |
| Network Protocols | safeethernet (safety communication), PADT, SNTP |
| Operating Voltage | 24 V DC nominal (-15% to +20% tolerance) |
| Current Consumption | Idle: 0.45 A; Maximum load: 11 A |
| Enclosure & Protection Class | IP20 rating, metal casing |
| Dimensions (W x H x D) | 205 x 114 x 88 mm (without plugs) |
| Weight | Approx. 1.3 kg |
| Operating Temperature | 0 °C to +60 °C |
Detailed Product Overview
The HIMA F3 DIO 16/8 01 functions as a remote safety I/O subsystem designed to expand safety controllers across distributed Ethernet networks. Signal processing is handled through its non-galvanically separated digital input channels and two-pole switching output channels. The 2-pole digital outputs utilize dual internal switches connected in series (one switching L+ and one switching L-), ensuring safe power disconnection to connected field devices upon fault detection.
For signal integrity and line monitoring, the module incorporates pulsed outputs that allow mechanical contacts to be monitored for cross-circuits and wiring breaks without needing external potential sources. Integrated line diagnosis actively monitors output circuits for short circuits (< 10 Ω) and open circuits (> 4 kΩ). Data transmission over the dual RJ-45 Ethernet switch uses HIMA’s safeethernet protocol, enabling safety-relevant data transfer between HIMatrix components while operating concurrently with standard network services.
Dimensions, Mounting & Connection Notes
- Physical Dimensions: Measures 205 mm wide x 114 mm high x 88 mm deep (excluding plug connectors).
- Weight: Approximately 1.3 kg.
- Mounting Configuration: Compact metal housing designed for cabinet or enclosure panel mounting providing IP20 ingress protection.
- Network Interface Connections: Front-accessible dual RJ-45 connectors with auto-negotiation and auto-crossover capabilities.
- Status Indicators: LED status displays for operating voltage, system status, Ethernet communication links, and channel-level I/O states.

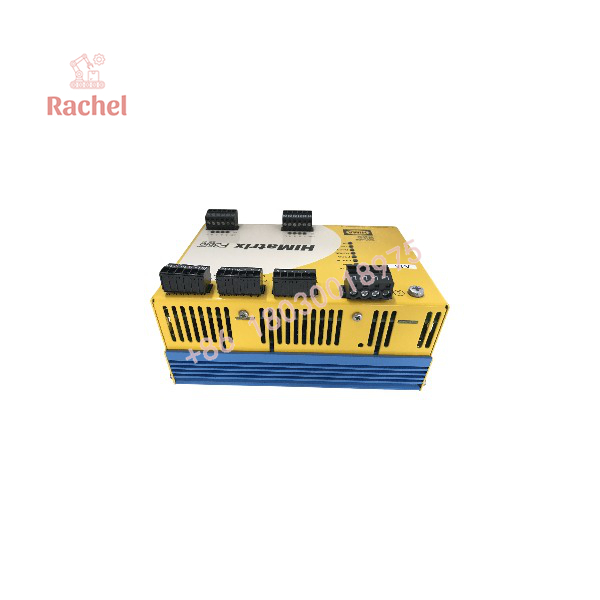

F3 DIO 16 8 01
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Safety Controller Compatibility | HIMatrix safety system controllers and safeethernet devices | Integrates over safeethernet protocol for safety-related input and output signal transfer. |
| Network Architecture | Ethernet 10BASE-T / 100BASE-Tx via 2 x RJ-45 ports | Integrated 2-port switch allows daisy-chaining multiple safeethernet modules. |
| Power Supply & Fusing | 24 V DC power source; 12 A time-lag (T) external fuse | System operating voltage tolerance ranges from 20.4 V DC to 28.8 V DC (24 V DC -15%/+20%). |
| Programming Tool | SILWorX or ELOP II Factory engineering software | Used for configuration, parameter setting, and module network setup via PADT protocol. |
| Hazardous Location Scope | Zone 2 hazardous areas | Certified for installation in Zone 2 locations when mounted in an appropriate enclosure. |
FAQ
What is the HIMA F3 DIO 16/8 01?
The F3 DIO 16/8 01 is a remote safety digital I/O module belonging to the HIMA HIMatrix system series.
How many digital inputs and outputs does this module provide?
The module contains 16 digital inputs, 8 2-pole digital outputs, and 2 pulsed outputs.
What functional safety level does the F3 DIO 16/8 01 support?
It is designed for safety-critical applications requiring up to SIL 3 according to IEC 61508 and PL e / Cat. 4 according to EN ISO 13849-1.
What communication interfaces and protocols are used?
It features two RJ-45 Ethernet ports with an integrated switch and communicates via the safeethernet safety protocol, along with standard PADT and SNTP protocols.
What is the current capacity of the digital outputs?
Each digital output channel supports up to 2 A at ambient temperatures below 40 °C (derated to 1 A from 40 °C to 60 °C), with a maximum total permissible load current of 8 A.
Can the F3 DIO 16/8 01 detect field wiring faults?
Yes, the module supports line diagnosis for short circuits (< 10 Ω) and open circuits (> 4 kΩ) on its digital outputs.
