HIMA F35 Safety Controller HIMatrix F35 PLC

Description

Product Introduction & Engineering Value

The HIMA F35 belongs to the HIMatrix family of compact safety controllers. It is intended for applications where safety logic must be executed independently and predictably, with communications and I/O interfaces integrated into the control architecture.

The important procurement issue is not simply whether an F35 powers up. A replacement must match the installed hardware revision, application configuration, firmware requirements, communication setup, and safety project. Treat the controller as a certified safety component, not as an ordinary PLC.

Technical Specifications

Engineering note

The designation F35 alone is not sufficient to establish every electrical and communication specification for a replacement unit. HIMA hardware revisions and project configurations matter.

Before purchasing, verify the complete ordering code, hardware revision, firmware level, installed project, and associated I/O architecture. For a safety controller, compatibility has to be demonstrated—not assumed.

Field Application & the “Trench” Experience

A common maintenance scenario is a legacy safety controller that has developed a hardware fault while the plant is approaching a scheduled outage. The maintenance team has an F35 spare in stores, but simply swapping controllers is not the whole job.

The replacement has to receive the correct safety application and configuration. Network addressing and communication parameters also need to be restored, followed by the required safety validation before the system is returned to service.

That’s the difference between having a spare controller and having a usable safety-system spare.

Niche application scenarios

• Burner management and combustion safety: shutdown logic and permissive monitoring.
• Compressor package protection: trip logic, permissives, and emergency shutdown functions.
• Process-unit emergency shutdown: safety logic coordinating field shutdown devices and distributed safety I/O.

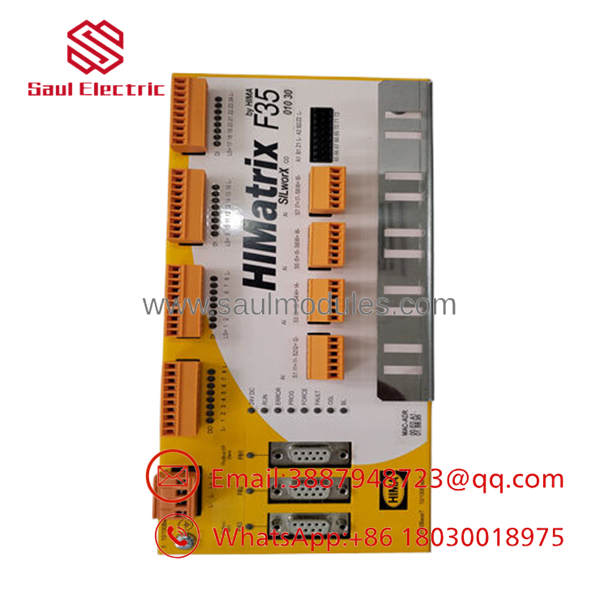

F35

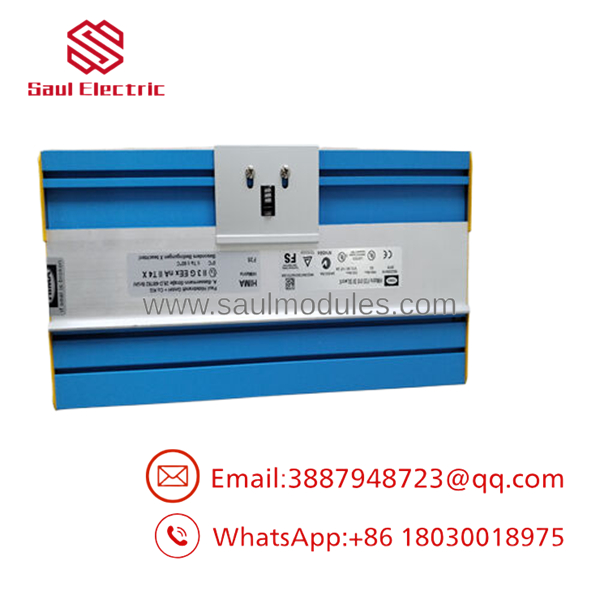

F35

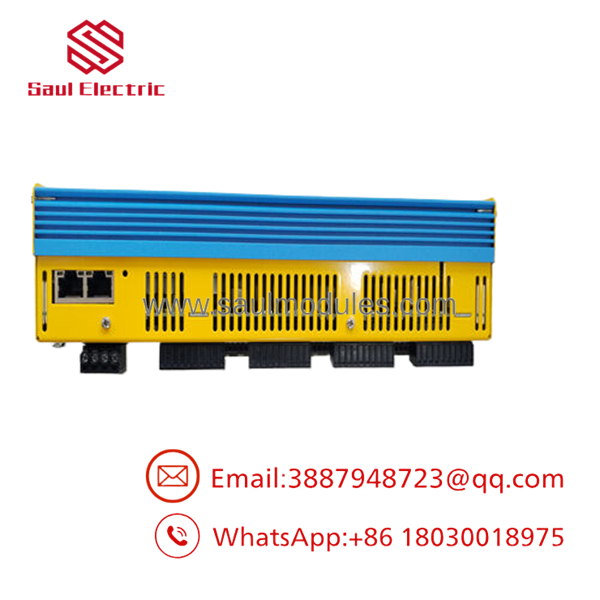

F35

Transparency SOP: QA & Testing

For New Surplus or Refurbished HIMA F35 inventory, QA should go beyond a basic power-up test.

1. Part identification — Confirm the complete F35 ordering information and hardware revision.
2. Visual inspection — Check housing, connectors, terminals, indicators, and mounting hardware.
3. Power-up verification — Confirm normal startup behavior and diagnostic indications.
4. Communication test — Verify applicable Ethernet communication interfaces.
5. Configuration check — Confirm the unit can accept the intended project/configuration.
6. I/O simulation — Where suitable HIMA test equipment is available, exercise representative safety inputs and outputs.
7. Diagnostic review — Check for hardware, communication, and configuration faults.
8. Documentation — Record hardware revision, firmware information, test scope, and warranty.

A bench power-up proves very little by itself. For safety hardware, the meaningful test is whether the controller behaves correctly within the intended application architecture.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Assuming any F35 is a direct replacement

Do not treat every F35 unit as identical. Hardware revision, firmware, configuration, and project compatibility need to be checked.

PRO TIP: Capture the complete identification label from the failed controller before ordering its replacement.

⚠️ Trap #2 — Forgetting the safety application

A replacement controller without the correct validated application configuration is not a ready-to-run spare.

Do not modify or download safety logic casually. Follow the site’s approved safety lifecycle and validation procedures.

⚠️ Trap #3 — Treating Ethernet communication as ordinary PLC networking

Safety-related communications require configuration and validation appropriate to the installed safety architecture. A successful Ethernet link does not prove that the safety communication path is correctly configured.

⚠️ Trap #4 — Skipping post-replacement validation

After replacing an F35, verify the complete safety function, including field inputs, logic, outputs, communication, diagnostics, and required proof-test procedures before returning the system to operation.

Dynamic FAQ

What is the HIMA F35?

The HIMA F35 is a HIMatrix safety controller used for safety-related industrial automation and control applications.

Is F35 a standard PLC?

No. It is safety-oriented programmable control hardware designed for safety-related applications. Its replacement and commissioning should follow the applicable HIMA documentation and site safety procedures.

Can I replace a failed F35 with any F35 from stock?

Not automatically. Verify the exact hardware version, firmware compatibility, application configuration, communication architecture, and associated I/O.

Does a replacement F35 require the original safety program?

Typically, the replacement controller must be loaded/configured with the correct project application before it can perform its intended function. The transfer and validation process should follow the approved HIMA and site procedures.

How should New Surplus F35 inventory be tested?

At minimum, verify the physical identification, power-up behavior, diagnostics, communications, and applicable configuration capability. A complete application-level test is preferable where the appropriate HIMA test environment is available.

What should I request when buying a refurbished F35?

Request photographs of the actual controller, complete part-number and revision markings, firmware information where available, test results, condition classification, and written warranty terms.

Does the F35 carry a safety certification?

HIMA safety controllers are designed and certified for defined safety applications, but the exact certification scope depends on the specific hardware and system configuration. Always verify the applicable certificate and technical manual for the exact F35 variant being installed.
