Description
Core Product Summary
The HIMA F3221 984322102 is a 16-channel digital input module designed to interface compatible field contacts and sensor signals with HIMA control systems. Its documented input options include single-signal inputs rated at 8 mA when used with the specified cable plug, or mechanical contacts operating at 24 V. The module has a typical switching time of 10 ms and occupies four TE of rack space.
For maintenance teams sourcing a replacement, the most important checks are the exact module designation, input signal type, cable and connector arrangement, rack compatibility, and system configuration. The F3221 should not be assumed to provide a particular SIL rating solely because it is installed in a safety-related control system.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | HIMA |
| Model | F3221 |
| Order number | 984322102 |
| Product type | Digital input module |
| Number of input channels | 16 |
| Supported input types | Single-signal input or mechanical contact |
| Single-signal input rating | 8 mA, including cable plug |
| Mechanical contact input | 24 V |
| Typical switching time | 10 ms |
| Rack space requirement | 4 TE |
| 5 V DC operating current | 70 mA |
| 24 V DC operating current | 130 mA |
| Channel behavior | Documented as non-interacting |
| Input design | Specified as having safety isolation |
| Connection arrangement | Front cable plug; confirm the required cable and connector |
| System association | HIMA H41q/H51q and related legacy I/O environments; verify the exact configuration |
Specifications are based on available F3221 technical documentation. Confirm the applicable hardware revision and system manual before installation.
Engineering Selection Highlights
digital input channels
The F3221 provides 16 inputs for acquiring discrete field signals. This channel count can help maintenance teams match an existing rack configuration without redesigning the complete input architecture.
Defined input requirements
The module documentation identifies two input arrangements: an 8 mA single-signal input used with the specified cable plug, or a 24 V mechanical contact. The field-device type and wiring method must match the applicable connection diagram.
Typical 10 ms switching time
The published typical switching time provides a reference for understanding input behavior. It should not be treated as the total response time of a control or protection function, which also depends on the controller, application logic, communications, and final output device.
Compact rack installation
With a space requirement of four TE, the F3221 is intended for a specific rack layout. Check the target slot, backplane interface, adjacent modules, and available space before replacing hardware.
Defined power consumption
The documented operating currents are 70 mA at 5 V DC and 130 mA at 24 V DC. These values can assist with checking the relevant supply capacity, but the complete rack load must be calculated using the requirements of all installed modules.

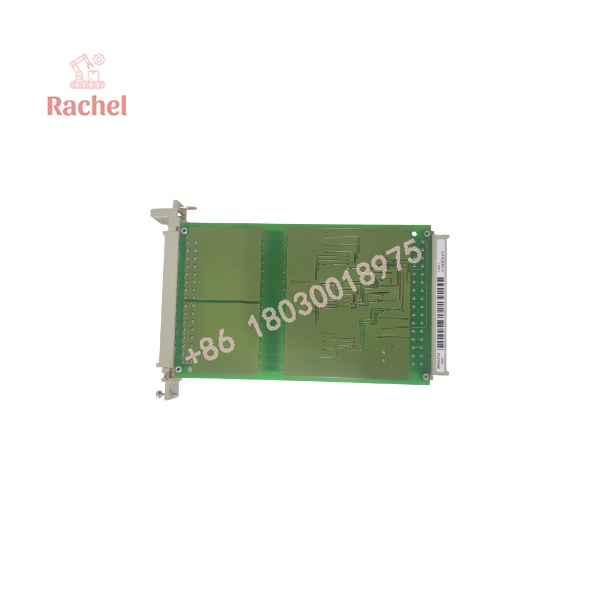

F3221 984322102

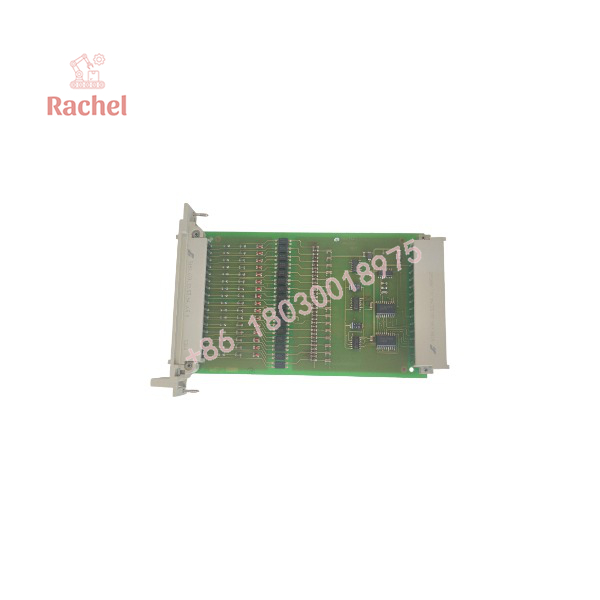

F3221 984322102
System Compatibility and Integration Requirements
Before purchasing or installing the HIMA F3221 984322102, verify the following:
- Controller and rack: Confirm that the installed HIMA system supports the F3221 hardware revision.
- Signal type: Establish whether the field devices use the documented single-signal input arrangement or 24 V mechanical contacts.
- Cable and connector: Check the front cable plug, pin assignment, cable specification, and terminal wiring against the system documentation.
- Power supply: Confirm that the applicable 5 V DC and 24 V DC supplies can support the module and the overall rack load.
- Application approval: Verify the module’s permitted role in the actual control or protection design. Do not infer a SIL capability from the controller family alone.
- Replacement revision: Compare the existing module label, order number, hardware revision, and any configuration requirements before substituting a unit.
The exact order number supplied for this product is 984322102. Compatibility should still be established against the installed equipment rather than relying on model-name similarity alone.
Dimensions, Mounting, and Connection Notes
The available technical documentation specifies a rack space requirement of 4 TE. A reliable dimensional drawing for the exact order-number and hardware revision should be consulted before planning enclosure clearances or mechanical replacement.
The documented connection arrangement uses a front cable plug. The original datasheet references a cable arrangement designated Z 7116/3221/C.. and a cable type of LiYY 16 × 0.25 mm². Confirm the exact cable variant and connector assignment against the relevant wiring diagram before reuse or replacement.
Installation should be performed by qualified personnel using the applicable HIMA instructions. Isolate the relevant power supplies, follow the site’s lockout/tagout procedures, and observe electrostatic-discharge precautions when handling the module.
Detailed Product Overview
Digital signal acquisition for established HIMA systems
The HIMA F3221 is a 16-channel input module used to bring discrete field signals into a compatible control-system rack. Its defined input arrangements allow engineers to assess whether connected field devices match the module’s electrical interface before installation.
For maintenance and procurement teams, matching the module accurately is essential. A similar-looking input module may have a different signal range, isolation design, channel behavior, or safety classification. Substituting a module based only on channel count or nominal voltage can introduce wiring and functional compatibility problems.
Electrical and wiring considerations
The documented 8 mA single-signal input specification includes the cable plug. The alternative input arrangement is specified for 24 V mechanical contacts. These details should be used when checking existing field wiring, not as a basis for assuming support for unlisted sensor technologies.
The specified typical switching time is 10 ms. In an operating system, the complete response interval may be longer because the input module is only one part of the signal path. Engineers should assess the full application timing requirements where signal timing affects process operation or a protection function.
Replacement and maintenance planning
When sourcing a replacement, record the existing module’s complete designation and order number. Inspect the connector and cable arrangement, verify the rack configuration, and compare the applicable technical documentation. After installation, carry out the required wiring checks and functional tests under the site’s approved procedures.
The F3221’s role in a larger system must also be distinguished from the safety classification of the overall installation. Available HIMA product information lists the F3221 as a 16-channel digital input module but does not assign it a SIL value in the relevant overview. Do not treat it as interchangeable with a safety-rated input module without explicit design approval.
Applications and System Role
The F3221 is intended for discrete field-signal acquisition within compatible HIMA control-system installations. Typical signal sources may include mechanical contacts and other devices that conform to the documented input requirements.
Potential application contexts include:
- Industrial process control: Monitoring contact states from field equipment.
- Plant equipment monitoring: Acquiring discrete status signals from compatible devices.
- Control-system maintenance: Replacing a failed or damaged input module in an existing installation.
- Legacy system support: Maintaining compatible HIMA rack configurations where the F3221 is already specified.
These are application contexts, not a blanket approval for every safety-related function. The suitability of the F3221 for a particular protection loop must be confirmed against the system’s approved design and safety documentation.
Frequently Asked Questions
What is the HIMA F3221 984322102?
It is a HIMA 16-channel digital input module for acquiring compatible discrete field signals in supported control-system configurations.
How many input channels does the F3221 provide?
The module provides 16 digital input channels.
What input signals does the F3221 support?
Its documentation specifies single-signal inputs rated at 8 mA, including the cable plug, or mechanical contacts operating at 24 V. Verify the wiring diagram before connecting field devices.
What is the typical switching time?
The documented typical switching time is 10 ms. This is not necessarily the total response time of the complete control or protection function.
How much rack space does it require?
The specified space requirement is four TE. Confirm the rack and mounting arrangement for the target installation.
What are the documented operating currents?
The available datasheet lists 70 mA at 5 V DC and 130 mA at 24 V DC. Check the power budget for the complete rack before installation.
Is the F3221 a SIL 3 module?
Do not assume that it is. The available HIMA technical overview does not assign a SIL rating to the F3221. Confirm the module’s approved application and safety classification in the documentation applicable to the installed system.
What should be checked before ordering a replacement?
Verify the model and order number, hardware revision, rack compatibility, input signal type, cable plug, pin assignment, power requirements, and approved system application.
