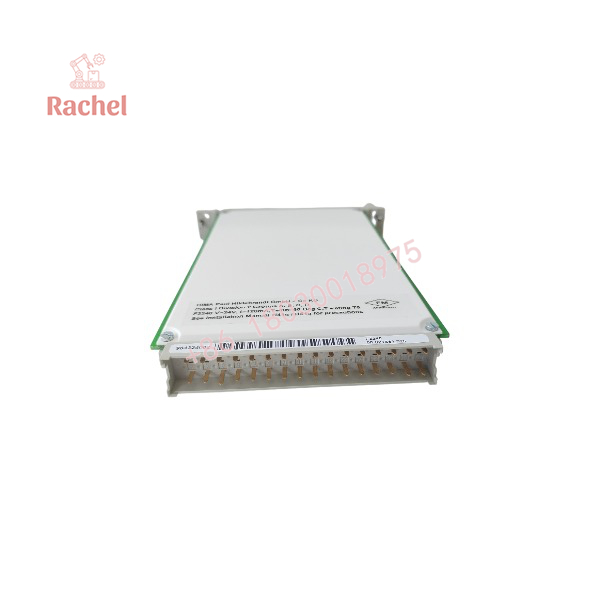

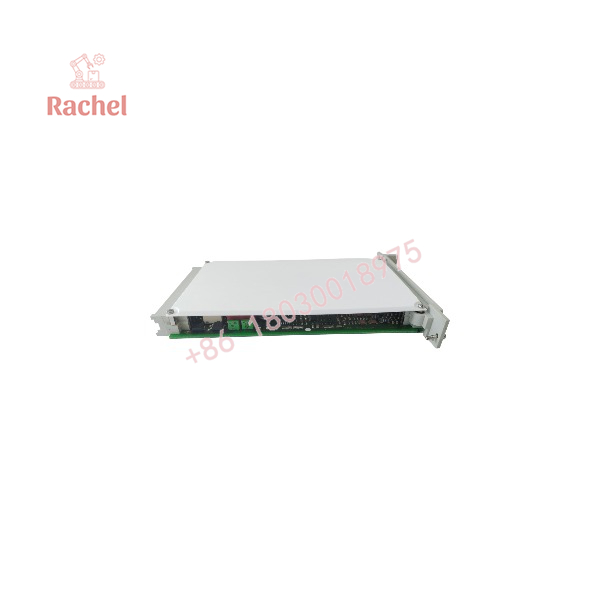

HIMA F3240 Safety-Related Digital Input Module

Description

Core Product Summary

The HIMA F3240 is a 16-channel, safety-related digital input module designed for compatible HIMA control systems. It accepts discrete field signals in the documented 110 V DC and 127 V AC voltage classes and incorporates safe electrical separation. HIMA’s product documentation identifies the F3240 as a SIL 3 safety-related input module.

The F3240 is intended for applications where discrete signals must be acquired by a safety-related control architecture. Before ordering a replacement, verify the installed system family, field voltage, wiring arrangement, module revision, and approved safety configuration. Its high-voltage input interface distinguishes it from other HIMA input modules designed for 24 V DC or 48 V AC/DC signals.



Key Technical Specifications

Parameter	Specification
Manufacturer	HIMA
Model	F3240
Product type	Safety-related digital input module
Number of channels	16 digital inputs
DC input voltage class	110 V DC
AC input voltage class	127 V AC
Safety classification	SIL 3, as identified in HIMA product documentation
Electrical separation	Safe separation (SafeS)
Input signal types	Contacts and single-signal inputs
Module space requirement	T4, as listed in the applicable approval schedule
Compatible system context	HIMA H41q/H51q and documented HIQuad X configurations; verify exact hardware support

The 120 V AC/DC description found in some documentation is a general input-module classification. For engineering selection, use the specific documented values of 110 V DC and 127 V AC and verify the applicable manual and hardware revision. Detailed current consumption, dimensions, connector pinout, and switching times should be confirmed from the relevant technical documentation rather than assumed.



Main Features and Engineering Advantages

channel digital input acquisition

The F3240 consolidates 16 discrete field signals into one input module. This arrangement supports centralized signal acquisition in compatible HIMA control racks and can simplify replacement planning where the existing system already uses this module type.

High-voltage field-signal compatibility

Unlike 24 V DC digital input modules, the F3240 is specified for 110 V DC and 127 V AC field circuits. Matching the actual field voltage is essential: a module designed for a different voltage class is not an equivalent substitute.

Safety-related design

HIMA identifies the F3240 as a safety-related digital input module with SIL 3 capability and safe electrical separation. Its suitability for a specific safety instrumented function still depends on the approved system configuration, application design, and applicable safety documentation.

Safe electrical separation

The SafeS designation identifies the module’s documented separation architecture. During installation, engineers must still observe the specified insulation, wiring, and separation requirements for the field circuits and rack.

Designed for established HIMA installations

The F3240 appears in HIMA documentation for established H41q/H51q systems and in the HIQuad X approval schedule. Before replacement, verify that the target system, rack, operating system, and module revision are approved for the intended configuration.

System Compatibility and Integration Requirements

The following checks should be completed before ordering or installing an F3240.

• System family: Identify the exact HIMA controller and rack. Do not infer compatibility solely from the module’s appearance or channel count.
• Field voltage: Confirm whether the connected circuit uses 110 V DC or 127 V AC.
• Input wiring: Verify the supported contact or single-signal arrangement and the applicable terminal or connector assignment.
• Electrical separation: Follow the system manual’s requirements for insulation, cable routing, and separation between field circuits and other equipment.
• Safety configuration: Confirm the module’s permitted role in the approved safety design. SIL 3 capability does not automatically establish that the complete safety function meets SIL 3.
• Hardware revision: Compare the installed module’s label and revision against the replacement documentation.
• Commissioning: Complete the prescribed wiring inspection, configuration checks, functional tests, and safety validation before returning the system to service.



Installation and Connection Considerations

The F3240 is a safety-related input module intended for use in a compatible HIMA rack. Its exact mechanical dimensions and connection details should be taken from the applicable hardware documentation.

Before installation:

1. Record the existing module designation, revision, and rack position.
2. Isolate the relevant power sources and follow the site’s lockout/tagout procedure.
3. Verify the field voltage and wiring against the F3240 connection diagram.
4. Confirm that the rack, backplane, and associated system configuration support the module.
5. Inspect the connector and field wiring before reconnecting.
6. Perform the required functional and safety checks under the site’s approved commissioning procedure.

Important: The F3240 is intended for higher-voltage field signals than the F3221’s documented 24 V mechanical-contact input arrangement. Do not treat the two models as interchangeable.



Detailed Product Overview

Role in the control system

The F3240 provides a 16-channel digital input interface for compatible HIMA safety-related automation systems. It is designed to acquire discrete signals from field circuits using the specified 110 V DC or 127 V AC input classes.

In a typical signal path, field contacts or other supported discrete devices provide the input states, the F3240 interfaces those signals with the control system, and the configured application logic processes the information. The module is one element of that overall signal path; it does not independently define the response of the complete safety function.

Selection based on electrical requirements

The principal selection criterion is the field-circuit voltage. The F3240 should be evaluated for applications requiring its documented high-voltage input class, rather than selected simply because another HIMA module has 16 channels.

The field-device type, wiring arrangement, and applicable input requirements must also be checked. Where the input is part of a safety function, engineers should verify the required fault response and testing arrangements against the appropriate system manual.

Safety integration and maintenance

HIMA identifies the F3240 as a SIL 3 safety-related module with safe electrical separation. Actual safety performance depends on the complete architecture, including field devices, wiring, controller hardware, application logic, final elements, diagnostics, and validation.

For maintenance teams, accurate identification is particularly important in legacy systems. Record the module’s full designation and hardware revision, verify its compatibility with the installed rack, and retain the relevant configuration and test records after replacement.



Applications and System Role

The HIMA F3240 is intended for discrete signal acquisition in compatible safety-related automation systems.

Typical application contexts include:

• Industrial process control: Acquiring discrete field states for process logic.
• Plant protection systems: Feeding compatible field signals into an approved safety-related control architecture.
• Energy and utility installations: Monitoring discrete equipment conditions where the field voltage matches the module specification.
• Legacy control-system maintenance: Replacing an existing F3240 in a supported HIMA rack.
• Industrial equipment monitoring: Collecting contact signals from compatible field devices.

These examples describe possible application contexts, not automatic approval for a particular safety function. The final application must comply with the system’s certified configuration and project-specific safety requirements.



Frequently Asked Questions

What is the HIMA F3240?

The HIMA F3240 is a 16-channel safety-related digital input module designed for compatible HIMA control systems.

How many input channels does the F3240 have?

It provides 16 digital input channels.

What input voltage does the F3240 support?

The documented field-signal classes are 110 V DC and 127 V AC. Confirm the actual field voltage before installation.

Is the HIMA F3240 SIL 3 rated?

HIMA product documentation identifies the F3240 as a safety-related SIL 3 input module. The complete safety function must still be designed and validated to meet its required safety integrity level.

What does SafeS mean for the F3240?

SafeS denotes the module’s documented safe electrical separation architecture. Installation must follow the applicable insulation and wiring requirements.

Can the F3240 replace an F3221?

Do not assume direct interchangeability. The F3221 and F3240 have different documented input requirements and safety-related characteristics. Check field voltage, wiring, system compatibility, and the approved design before substitution.

Which HIMA systems support the F3240?

The F3240 is documented in connection with H41q/H51q systems and appears in the HIQuad X approval schedule. Confirm compatibility with the exact controller, rack, hardware revision, and system documentation.

What should be checked before purchasing?

Confirm the model, hardware revision, required quantity, field voltage, connector arrangement, rack compatibility, and application requirements. If replacing an installed module, a clear photograph of its label can help verify the correct designation.



Procurement Checklist

For a quotation or replacement request, prepare the following information:

• Product model: HIMA F3240
• Required quantity
• Existing module’s complete label and hardware revision
• Installed HIMA controller and rack family
• Field input voltage: 110 V DC or 127 V AC
• Connector and wiring details
• Required condition and delivery destination

Confirm the exact order number from the existing label or the applicable HIMA documentation before placing an order. This reduces the risk of receiving a module with a similar designation but an incompatible electrical interface.
