Description
Core Product Summary (Brand / Model / Key Attributes)
The HIMA F 6706 is a safety-related analog output module for classic HIMA planar systems. It provides 0/4…20 mA current outputs with individual galvanic isolation and safety isolation, supporting both source and sink operating modes.
The module offers 12-bit resolution and is designed for applications requiring high integrity analog actuation signals. It occupies 4 TE of rack space and draws power from the system 5 V and 24 V supplies.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product type | Safety-related analog output module |
| Output signal | 0/4 … 20 mA |
| Operating modes | Source or sink |
| Resolution | 12 bits (4095 steps) |
| Scaling | 0 = 0 mA, 3840 = 20 mA |
| Isolation | Individual galvanic isolation + safety isolation |
| Burden (source mode) | ≤ 750 Ω (including line resistance) |
| Burden (sink mode) | ≤ (UQ – 5 V) / 21.2 mA |
| Basic error | ≤ 0.1 % (20 µA) at 25 °C |
| Operating error | ≤ 0.4 % (0 … +60 °C) |
| Electric strength | 250 V against Analog-GND |
| Space requirement | 4 TE |
| Power consumption | 5 V DC: 40 mA; 24 V DC: 100 mA |
| Max. line length | Up to 1000 m (burden-dependent) |
Detailed Product Overview
The F 6706 is a classic HIMA analog output module intended for safety-related applications. It converts digital values from the safety controller into precise 0/4…20 mA current signals. Each output channel is individually galvanically isolated and incorporates safety isolation, allowing the module to be used in systems requiring high integrity analog outputs.
The module supports both source and sink modes, giving flexibility in field wiring. In source mode the maximum burden is 750 Ω (including cable resistance). In sink mode the burden limit depends on the external source voltage UQ. Resolution is 12 bits, with the digital value 3840 corresponding to 20 mA.
Accuracy is specified as ≤ 0.1 % basic error at 25 °C and ≤ 0.4 % operating error across the 0…60 °C range. The outputs remain at a very low residual current (≤ 20 µA) when the module is in the basic/reset state. Maximum recommended cable length is 1000 m, subject to burden limitations.
The module occupies 4 TE in the HIMA rack and is powered from the system 5 V logic supply (40 mA) and 24 V field supply (100 mA).

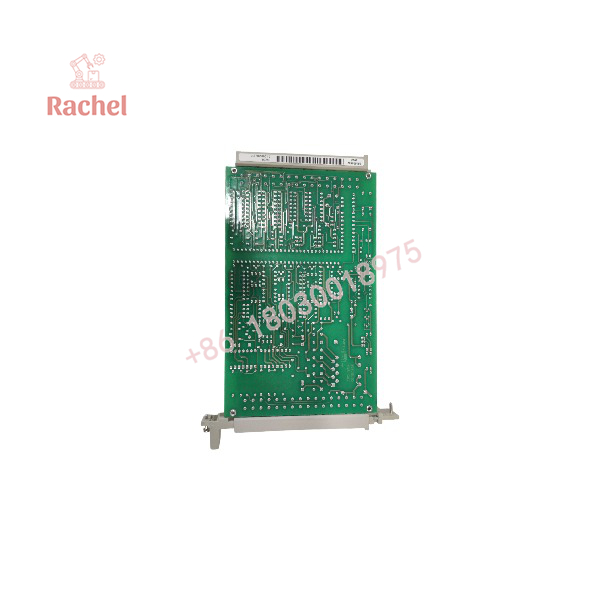

F6706

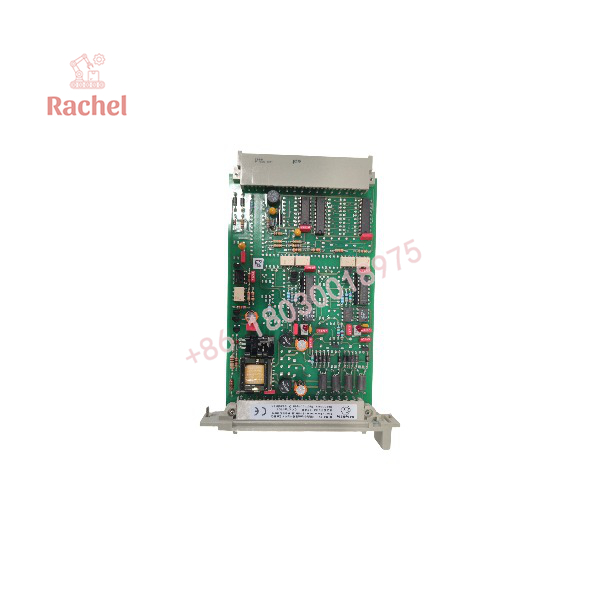

F6706
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
|---|---|---|
| Host system | Classic HIMA planar / rack systems | 4 TE slot required |
| Output signal | 0/4…20 mA | Source or sink selectable |
| External supply (sink mode) | 10 … 30 V | Required only in sink configuration |
| Power supplies | 5 V DC and 24 V DC from system | 40 mA at 5 V; 100 mA at 24 V |
| Isolation | 250 V against Analog-GND | Observe system earthing rules |
| Cable length | Max. 1000 m | Limited by total burden |
Engineering Selection Highlights
- 0/4…20 mA analog outputs with 12-bit resolution.
- Individual galvanic isolation plus safety isolation on each channel.
- Supports both source and sink operating modes.
- Low basic error (≤ 0.1 % at 25 °C) suitable for precise control loops.
- Compact 4 TE form factor for classic HIMA planar racks.
- Residual output current ≤ 20 µA in the safe/off state.
- Suitable for cable lengths up to 1000 m (burden permitting).
Dimensions, Mounting & Connection Notes
The F 6706 is a plug-in module requiring 4 TE of rack space. Field connections are made according to the official HIMA pin assignment for the module. When operating in sink mode, an external voltage source (10–30 V) must be provided. Ensure the total burden (including cable resistance) remains within the specified limits for the selected mode. Follow HIMA guidelines for shielding and earthing of analog circuits.
FAQ
What is the HIMA F 6706?
It is a safety-related analog output module that provides isolated 0/4…20 mA current outputs for HIMA planar systems.
What output range does it support?
0/4…20 mA, with 12-bit resolution (0 = 0 mA, 3840 = 20 mA).
Can it operate in both source and sink modes?
Yes. Source mode burden is limited to 750 Ω; sink mode burden depends on the external source voltage.
What is the accuracy?
Basic error ≤ 0.1 % at 25 °C; operating error ≤ 0.4 % over 0…60 °C.
How much rack space does it require?
4 TE.
What are the power requirements?
40 mA from the 5 V supply and 100 mA from the 24 V supply.
Verification & Troubleshooting Notes
Confirm the selected operating mode (source or sink) matches the field wiring and that the total burden is within limits. Verify that both 5 V and 24 V supplies are present and within tolerance.
Check residual output current when the channel is commanded off (should be ≤ 20 µA). If accuracy or stability issues occur, inspect cable length, shielding, and burden resistance. Refer to the official HIMA documentation for the complete connection diagram, scaling details, and any specific safety application notes for the F 6706.
