Description
Core Product Summary
The HIMA F8650X is a safety-related central processing unit engineered for deployment within HIMA H41q and H51q programmable electronic safety systems. It serves as the core computing element for high-integrity industrial automation applications, including emergency shutdown systems, fire and gas monitoring, and burner management controls.
The processor architecture is designed to execute safety-critical application logic with integrated fault tolerance and self-diagnostic capabilities. It operates within the standard HIMA 19-inch rack infrastructure, interfacing directly with backplane buses, power supplies, and communication modules such as Ethernet processors. System configuration and programming are handled via the ELOP II engineering environment, enabling structured design and deployment of safety functions in compliance with relevant industrial safety standards.
Key Technical Specifications
| Specification Parameter | Verified Value / Detail |
| Product Type | Central Processing Unit (CPU) |
| System Family | HIMA H41q and H51q Safety Control Systems |
| Function | Safety-Related Controller Processing |
| Programming Environment | ELOP II |
| Mounting Form Factor | 19-inch rack modular card (H41q/H51q rack infrastructure) |
| Standards Compliance | IEC 61508 (SIL 3), IEC 61131-2 |
Detailed Product Overview
The HIMA F8650X operates as the computational heart of safety instrumented functions within the H41q and H51q modular controller families. Designed to meet stringent functional safety requirements, it processes input signals from safety sensors, executes user-defined safety logic, and commands safe-state outputs for critical process industries.
Integration within an automation architecture requires careful coordination with system backplanes, power supply units, and appropriate I/O modules. The processor works in conjunction with dedicated communication processors to manage safe cross-communication and higher-level supervisory data access. Engineering teams configure and manage the controller using the ELOP II software suite, ensuring that application logic adheres to verified safety guidelines and diagnostic coverages required for safety lifecycle management.
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| System Series | HIMA H41q and H51q safety control systems | Designed exclusively for integration within these specific modular rack architectures. |
| Engineering Software | ELOP II | Required for software development, logic compilation, and system configuration. |
| Rack Infrastructure | H41q / H51q standard backplane and chassis | Mounts directly into designated processor slots within the 19-inch rack system. |
| Companion Modules | HIMA communication and I/O modules | Operates alongside compatible system communication cards (such as Ethernet processors) and digital/analog I/O modules. |

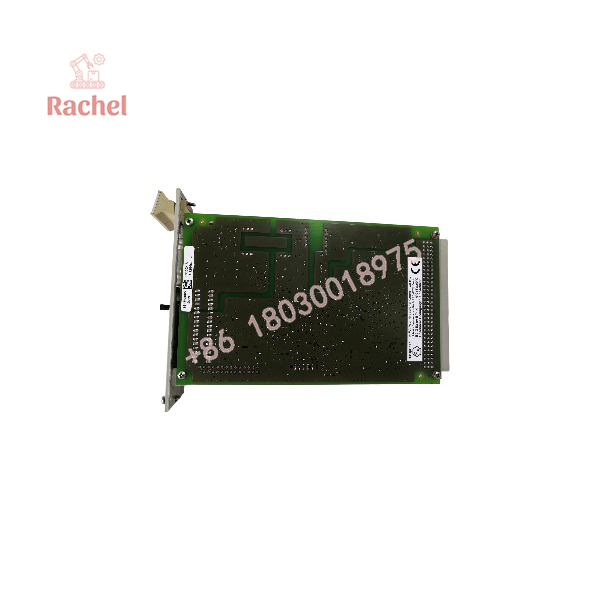

F8650X

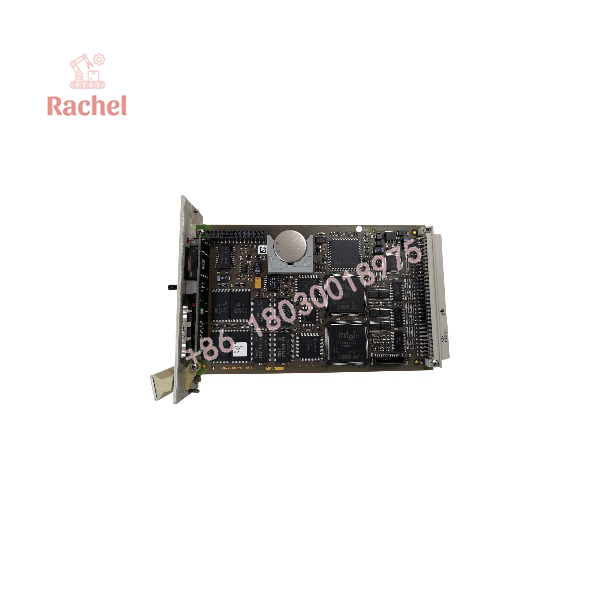

F8650X
Dimensions, Mounting & Connection Notes
- Form Factor: Standard modular card designed for insertion into the 19-inch rack chassis of H41q and H51q systems.
- Slot Assignment: Must be installed in designated central processing unit slot positions on the system backplane.
- Handling: Observe standard electrostatic discharge (ESD) precautions during installation, maintenance, or replacement.
FAQ
What is the HIMA F8650X?
The HIMA F8650X is a safety-related central processing unit module designed for use in HIMA H41q and H51q safety programmable logic controller systems.
Which system families are compatible with the F8650X?
It is compatible with the HIMA H41q and H51q modular safety controller series.
What software is used to program the F8650X?
System configuration and application programming are performed using the HIMA ELOP II engineering software environment.
Where is the module installed within the control assembly?
It is installed directly into the designated CPU slot positions within the 19-inch rack infrastructure of the H41q or H51q chassis.
What is the primary application scope for this processor?
It is utilized in safety-critical industrial applications, including emergency shutdown systems, fire and gas protection, and burner management architectures requiring high safety integrity levels.
