Hitachi 9289398 MC2-C1 EX8000-6 Controller Board

Description

Product Introduction

The Hitachi 9289398 (Designation: MC2-C1) is a primary machine controller module engineered specifically for the ultra-class Hitachi EX8000-6 mining excavator. As a core intelligence unit within the machine’s electronic control framework, the MC2-C1 conditions sensor feedback, executes electro-hydraulic pump displacement algorithms, manages real-time engine load distribution, and routes CAN-bus diagnostic telemetry between the cab monitoring system and sub-controllers.

Housed in a ruggedized, vibration-damped enclosure designed for severe heavy-mining conditions, the 9289398 controller withstands extreme thermal cycling, high-G mechanical shocks, and harsh atmospheric exposure. Swapping a damaged, liquid-ingress faulted, or thermally degraded MC2-C1 unit clears persistent machine communication fault codes, eliminates erratic hydraulic spool responses, and restores maximum breakout force and productivity to ultra-class mining operations.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It is 3:00 AM at an open-pit oil sands or iron ore mine. The site’s primary 800-ton Hitachi EX8000-6 excavator suddenly drops into limp-home protection mode, locking out main boom hydraulics and throwing a persistent “MC2 Communication Timeout / Hydraulic Pump Control Error” on the operator’s display screen. With haul trucks stacking up and downtime costing thousands of dollars per hour, field technicians must quickly isolate whether the issue lies in external harness damage or internal MC2-C1 controller failure.

• Open-Pit Mining Operations – Main Excavator Control – Regulates twin-engine load management and multi-pump hydraulic flow distribution under peak digging forces.
• Severe Environment Fleet Maintenance – Component Overhaul – Replaces degraded controller hardware on high-hour machines operating in extreme sub-zero or high-ambient desert environments.
• Mining Equipment Rebuilds – Fleet Life Extension – Provides a drop-in replacement ECU module during full mid-life machine overhauls without requiring complete wiring loom replacements.

Field Case Study

During peak production at a high-altitude copper mine, an EX8000-6 experienced intermittent hydraulic pressure loss across the bucket cylinder circuit whenever ambient temperatures spiked. Maintenance teams traced the issue to internal thermal trace failure on the original 9289398 (MC2-C1) controller board after 22,000 engine operating hours. A pre-tested, flash-verified replacement 9289398 module was installed during a scheduled shift change. Following parameter verification via Hitachi software tools, the excavator resumed 100% digging capacity with zero recurring CAN-bus errors.

Transparency SOP: Quality Assurance & Testing

We do not just ship boxes; we test them on actual equipment-compatible test benches before they ship to your job site. Our 5-step bench verification process includes:

1. Inbound Visual & Structural Inspection: Detailed audit of header pins, enclosure seals, mounting points, and PCB traces for corrosion, thermal discoloration, or pin bent issues.
2. Conformal & Moisture Seal Audit: Verification that the environmental IP-sealing and PCB protective potting/coating remain completely intact.
3. Static Resistance & Circuit Checks: Multi-point resistance checks across 24V DC power input lines and sensor ground rails to verify zero internal short circuits.
4. Live Bench Simulation & Signal Testing: Board energization on specialized test benches to verify CAN-bus transceiver handshake, input sensor signal processing, and output driver actuation.
5. ESD-Safe Sealed Packaging: Deep cleaned, labeled with part and revision numbers, and vacuum-sealed inside anti-static ESD bags inside heavy-duty foam-padded boxing.

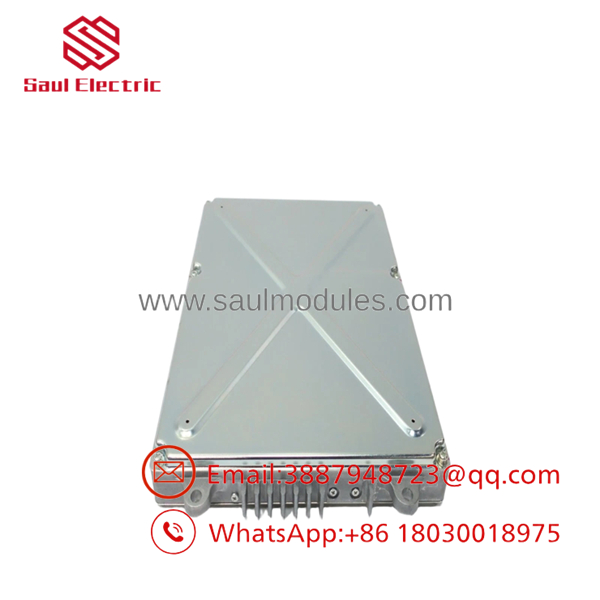

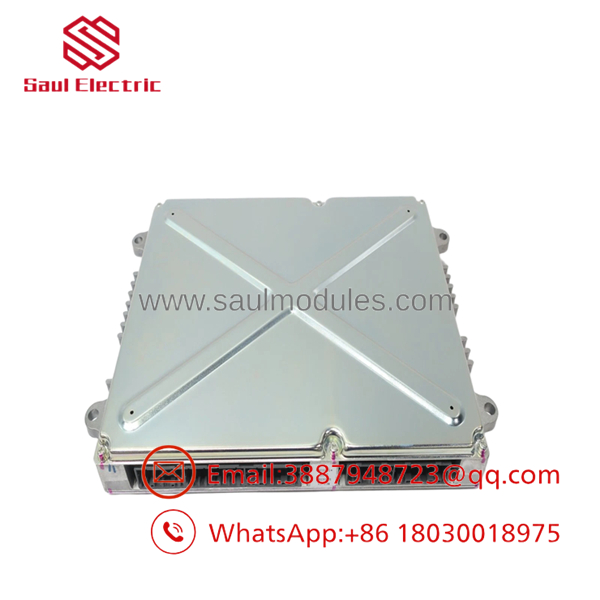

9289398 MC2-C1 EX8000-6

9289398 MC2-C1 EX8000-6

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Verify Firmware Parameters Before Full Load Operation: After physically mounting the 9289398 board, connect the official diagnostic tool (MPDr. / Hitachi Service Tool) to verify that software parameters match your machine’s exact engine configuration, pump setup, and regional serial number prefix.
• ❗ Isolate Master Battery Disconnect Before Swap: Never plug or unplug the main harness connectors while the machine’s 24V master electrical switch is ON. Voltage spikes or inductive kickback during live connector mating can permanently damage input/output pins on the ECU.
• ⚠️ Inspect Connector Plugs for Moisture Corrosion: Before locking the multi-pin harness connectors into the new 9289398 housing, inspect the female pin cavity seals for oil, water, or blue copper corrosion. Clean with electrical contact cleaner and apply dielectric grease to prevent future harness-side communication drops.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the Hitachi 9289398 plug-and-play, or does it require calibration?

A: While the physical module drops directly into the mounting bracket and harness headers, you must connect the Hitachi MPDr. diagnostic tool to confirm/upload machine-specific calibration parameters and zero-point pump settings for smooth operation.

Q: How do I verify this is the correct controller for my EX8000 excavator?

A: Verify the physical metal tag or printed label on the controller housing. It must explicitly state Part Number 9289398 and Model Code . Check your machine serial number manual to ensure revision compatibility.

Q: What condition are these replacement controllers supplied in?

A: We offer both New Surplus (unused original OEM spares) and fully reconditioned/bench-tested units. Every module undergoes rigorous physical and electronic signal verification before shipping.

Q: What warranty is provided with this mining controller module?

A: All mining and heavy equipment industrial control modules are backed by a comprehensive 12-month replacement warranty. If the unit exhibits internal component failure or diagnostic communication fault codes within 1 year, we replace it or issue a full refund.
