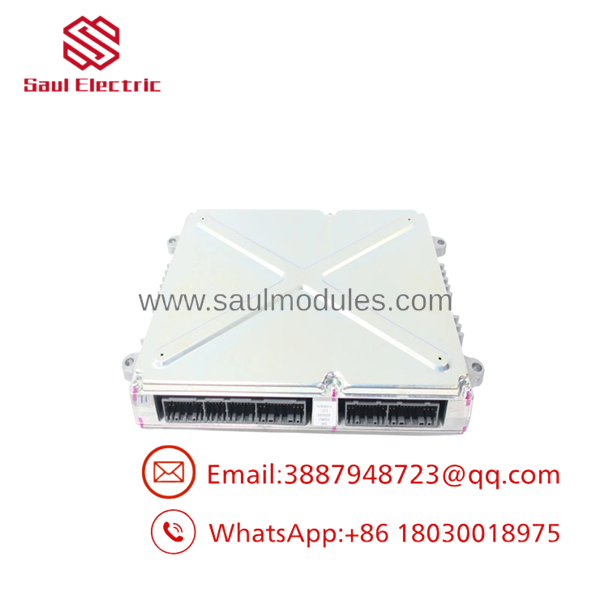

Hitachi 9289399 MC2-EHU EX8000-6 Controller

Description

Product Introduction & Engineering Value

The Hitachi 9289399 MC2-EHU is a controller module for the EX8000-6 ultra-large mining excavator. This is not a generic Hitachi automation card; the part is tied to a specific heavy-equipment control architecture. Hitachi’s parts catalog currently identifies 9289399 specifically as an EHU Controller.

For replacement work, the complete designation matters: 9289399 / MC2-EHU / EX8000-6. Secondary-market listings independently identify the same combination and describe the item as an EX8000-6 controller module.

Technical Specifications

• Manufacturer: Hitachi
• Part Number: 9289399
• Controller: MC2-EHU
• Functional Designation: EHU Controller
• Machine: EX8000-6
• Equipment Class: Ultra-large hydraulic mining excavator
• Component Type: Electronic controller module
• Control System Role: Machine control electronics
• Related Part: 9289398 — MC2/C1 controller
• Related Part: 9289400 — HMU controller
• Installation: EX8000-6 control system
• Replacement Basis: Exact controller designation and part-number matching

Hitachi’s parts catalog lists 9289399 as an EHU Controller, while the EX8000-6 parts data distinguishes it from the 9289398 MC2/C1 and 9289400 HMU controllers.

Important: Public documentation does not provide enough information to safely specify the controller’s processor, memory capacity, communication protocol, firmware version, I/O allocation, or internal electrical ratings. Those details should be verified against the machine’s service documentation and the controller’s actual identification label.

Field Application & the “Trench” Experience

The difficult part of replacing an controller is rarely the physical installation. The real risk is installing the wrong controller into a machine with multiple closely related control modules.

The available parts data lists 9289398 as MC2/C1, 9289399 as MC2/EHU, and 9289400 as HMU. That is a good example of why a technician should match the complete controller designation rather than simply ordering a Hitachi controller with a similar part number.

A plausible field scenario: an develops a controller fault during a mining shift. Maintenance has a spare cabinet controller available, but the spare is 9289398 rather than 9289399. The connectors may look familiar, yet the controller designation is different. The correct response is to verify the machine configuration and service documentation—not to force a substitution because the module physically fits.

Specific applications include:

1. hydraulic excavator control-system maintenance
2. Mining shovel electronic controller replacement
3. Critical spare inventory for large-scale open-pit mining fleets

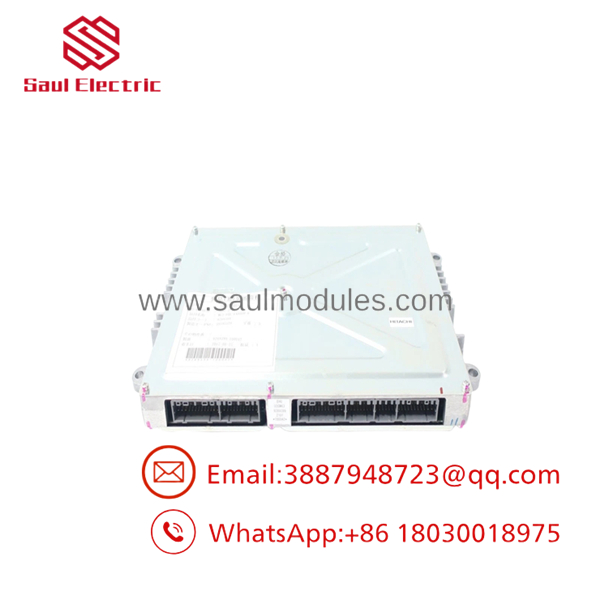

9289399 MC2-EHU EX8000-6

Transparency SOP: QA & Testing

For New Surplus or Refurbished Hitachi 9289399 inventory, testing should be structured around the controller’s actual application.

1. Identification

• Verify 9289399.
• Verify MC2-EHU where marked.
• Confirm the intended machine is .
• Record serial and revision information.

2. Physical inspection

• Examine connectors and locking mechanisms.
• Inspect the housing and PCB for impact, contamination, corrosion, or thermal damage.
• Check for evidence of previous component-level repair.

3. Electrical inspection

• Check for obvious shorts, damaged components, connector damage, and other abnormalities.
• Do not apply arbitrary voltage to a controller without the correct service procedure.

4. Functional validation

• Where the appropriate Hitachi test environment is available, verify controller startup, communication, and system-level operation.
• Record the exact test scope rather than using an undefined “tested” label.

Hitachi’s official catalog currently lists 9289399 as an available EHU Controller, while secondary suppliers also list new and used examples.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Confusing MC2-EHU with MC2-C1.
The parts data distinguishes 9289399 MC2-EHU from 9289398 MC2-C1. Treat them as different controller references unless Hitachi documentation explicitly establishes interchangeability.

⚠️ Trap #2 — Ignoring the machine model.
A Hitachi controller number should be matched against the application. Do not assume that a controller from another EX-series excavator is interchangeable.

⚠️ Trap #3 — Firmware/configuration.
A physically correct controller may still require machine-specific configuration, parameterization, or commissioning procedures. Before removing the failed controller, preserve available machine configuration data.

PRO TIP: Put “Hitachi 9289399 ” on the purchase order rather than simply “Hitachi 9289399.” The complete designation removes considerable ambiguity.

Dynamic FAQ

What is Hitachi 9289399?

Hitachi 9289399 is an EHU Controller used in the excavator control system. Hitachi’s official parts catalog lists the part under that description.

What does mean?

is the controller designation associated with Hitachi part 9289399 in parts listings. It distinguishes this unit from other controllers such as MC2/C1 and HMU.

Is 9289399 interchangeable with 9289398?

Do not assume so. Available parts data identifies 9289398 as MC2/C1 and 9289399 as MC2/EHU, indicating distinct controller designations.

Is 9289399 still available?

Yes. Hitachi’s current construction-equipment parts catalog lists 9289399 EHU Controller as available, and secondary-market suppliers also list the part.

Can I install a New Surplus 9289399 directly?

The hardware must first be verified against the machine configuration. Depending on the machine’s control architecture, configuration or commissioning procedures may be required after installation.

What warranty should I request?

For a high-value mining-equipment controller, request the warranty period, exact condition (New Surplus, Refurbished, or Used), test scope, and return terms in writing. One secondary supplier currently advertises a 12-month warranty on its new/refurbished automation parts, but that is a supplier-specific policy rather than a universal Hitachi warranty.
