Product Introduction & Engineering Value
The Hitachi E12978651 is not a generic Hitachi PLC card. Available product records identify it as a Diginter Module PCB associated with Hitachi Euclid mining trucks. That distinction is important when building a spare-parts database or sourcing a replacement for an operating haul truck.
For procurement, retain the full E12978651 number and verify the associated truck model, cabinet location, board markings, and revision. Public listings establish the Diginter-module identification, but they do not provide enough evidence to assign detailed electrical ratings or communication specifications.
Technical Specifications
- Manufacturer: Hitachi
- Part Number: E12978651
- Equipment Brand/Family: Hitachi Euclid
- Component Designation: Diginter Module
- Product Type: PCB / circuit board module
- Equipment Category: Mining truck electronics
- Primary Application: Euclid mining-truck control electronics
- Service Role: Electronic replacement module
- Stock Type: New Surplus / NOS available in the secondary market
- Compatibility: Machine- and system-dependent
- Electrical Ratings: Not reliably established from the available public records
- Firmware / Configuration: Verify against the installed truck system
A current surplus listing reports E12978651 as a Hitachi Euclid Diginter PCB and indicates NOS/surplus condition. Another listing independently uses the same Diginter Module description.
Field Application & the “Trench” Experience
A mining truck sitting idle is an expensive problem. The technician may have a failed Diginter board in hand, but the replacement search turns up generic Hitachi circuit boards with no clear machine association.
With E12978651, the important clue is the Diginter Module designation. A supplier listing specifically associates the part with Hitachi Euclid Truck Mfg Ltd, rather than describing it as a general-purpose automation PCB.
A practical replacement workflow is:
- Record E12978651 exactly as printed.
- Photograph the complete board label and connector side.
- Record the truck model and serial number.
- Compare PCB revision and secondary markings.
- Verify the replacement before removing configuration-dependent hardware.
Niche application scenarios include:
- Mining haul-truck electronic control maintenance
- Euclid truck control-cabinet PCB replacement
- Long-term spare inventory for legacy mining fleets

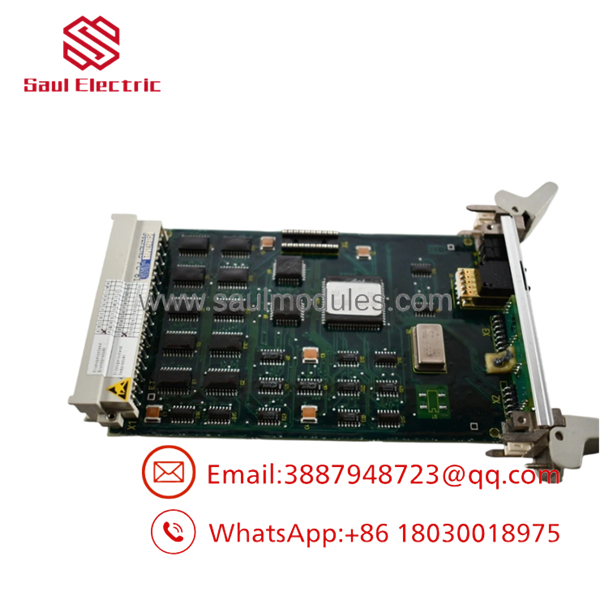

E12978651
Transparency SOP: QA & Testing
For New Surplus/NOS inventory, the inspection should focus on preserving the distinction between unused stock and tested equipment.
Identification: Confirm , manufacturer markings, PCB references, and revision information.
Condition: Inspect the PCB for oxidation, moisture exposure, bent connectors, damaged components, cracked solder joints, and evidence of previous installation.
Storage history: Ask whether the board has remained in controlled storage. Long-term shelf storage can matter even when a board has never been installed.
Electrical testing: Perform only tests supported by the applicable Hitachi/Euclid service procedure or approved test fixture.
Functional testing: If a compatible truck or bench test system is available, document actual operational testing. Do not label a board “functionally tested” based only on visual inspection.
A current supplier explicitly describes its units as NOS, surplus, while marketplace listings classify the item as New/Other.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Calling it a generic Hitachi PCB.
The available identification is much more specific: Diginter Module for Hitachi Euclid equipment.
⚠️ Trap #2 — Ignoring the truck model.
A correct part number should still be checked against the exact machine configuration. Do not assume every Euclid/Hitachi mining truck uses the same controller architecture.
⚠️ Trap #3 — Confusing NOS with tested.
NOS/surplus means unused inventory; it does not automatically mean functionally tested. Ask the supplier exactly what testing was performed.
PRO TIP: Put “Hitachi Diginter Module PCB – Euclid Mining Truck” on the RFQ. Include photographs of the original board and truck nameplate whenever possible.
Dynamic FAQ
What is Hitachi ?
Hitachi is identified in current secondary-market records as a Diginter Module PCB / circuit board associated with Hitachi Euclid mining-truck equipment.
Is a PLC module?
It should not be classified as a standard PLC I/O module based on the available evidence. Current listings identify it specifically as a Diginter Module PCB for Hitachi Euclid equipment.
Is available as New Surplus?
Yes. Current listings describe units as NOS/surplus, and marketplace records also show new/other inventory. Actual condition should be confirmed for the specific unit being quoted.
Can be installed directly?
Verify the exact Hitachi Euclid truck model, board revision, connectors, and system configuration first. A part-number match is necessary but should still be checked against the machine documentation.
What should I provide when requesting a quotation?
Provide , the complete board label, PCB revision if present, truck model, machine serial number, and photographs of the original assembly.
What warranty should I request?
Request the warranty period, stock condition, test scope, and return terms in writing. For a mining-truck control PCB, specifically ask whether the unit has been functionally tested or is simply NOS/visual-inspection stock.
