Hitachi LYA210A Thermocouple Analog Input Module

Description

Product Introduction

The Hitachi LYA210A is a specialized thermocouple analog input module engineered for high-precision process control and industrial automation systems. Designed to slot into standard Hitachi industrial control racks, this board conditions, isolates, and digitizes low-level millivolt signals from field-installed thermocouples (e.g., Type K, J, T, E, or R/S).

Built for critical processing environments such as power plants, chemical facilities, and manufacturing lines, the LYA210A provides high galvanic isolation across channels to prevent ground loops and electrical noise interference. Replacing a failed or drifting LYA210A module clears system analog input fault alarms, fixes erratic temperature feedback readings, and restores tight closed-loop thermal control across your operation.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It is 1:30 AM during continuous kiln or boiler operations at a processing plant. The central supervisory control system suddenly flags a series of “Temperature Input Range Faults” across multiple heating zones. Field checks reveal the heating element thermocouples are fine, but the LYA210A input card in the local I/O rack has suffered A/D converter drift due to thermal aging of onboard reference capacitors.

• Power & Thermal Processing Plants – Temperature Monitoring – Converts thermocouple voltage into precise temperature readings for boiler, turbine, or furnace monitoring.
• Chemical & Refining Operations – Process Control – Delivers noise-isolated thermal telemetry to central PLC/DCS controllers for closed-loop valve and heater control.
• Legacy System Upgrades & Maintenance – Direct Replacement – Replaces failing analog input cards in legacy Hitachi racks without requiring software logic rewrites.

Field Case Study

A steel heat-treatment line experienced periodic temperature spikes on its main control display, triggering false high-temp alarm shutdowns. Diagnostics isolated the issue to high-frequency common-mode noise breaking through a degraded isolation circuit on the existing LYA210A card. Replacing the faulty board with a fully bench-tested unit stabilized all temperature readings immediately, allowing the plant to resume normal 24/7 production.

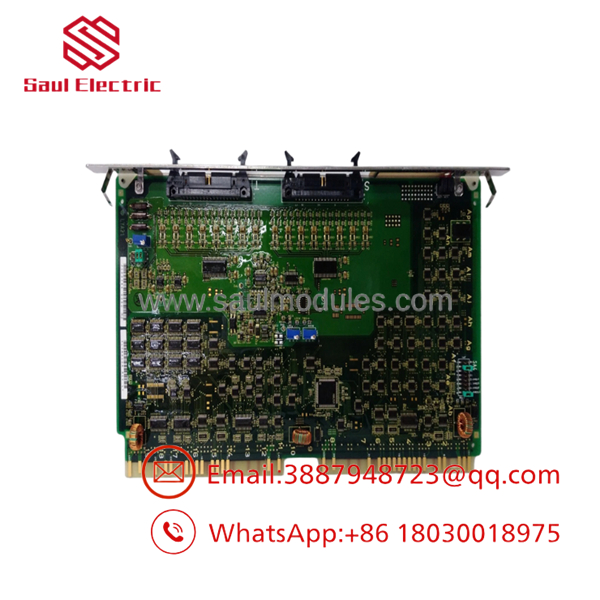

LYA210A

LYA210A

Transparency SOP: Quality Assurance & Testing

We do not just ship boxes; we test them on actual equipment-compatible test benches before they ship to your job site. Our 5-step bench verification process includes:

1. Inbound Visual & Optical Inspection: Detailed audit of gold edge connector fingers, solder joint integrity, terminal block interfaces, and onboard ICs for physical damage or heat stress.
2. Conformal Coating Audit: Verification that protective coatings remain intact to shield high-impedance analog pathways from atmospheric dust and humidity.
3. Static Resistance Checks: Multi-point resistance checks across power supply inputs and signal ground rails to confirm zero internal short circuits.
4. Live Precision Signal Injection: Board energization inside a test rack with multi-point millivolt DC signal injection across all channels to verify A/D accuracy and Cold-Junction Compensation.
5. ESD-Safe Sealed Packaging: Deep cleaned, labeled with part and revision numbers, and vacuum-sealed inside anti-static ESD shielding bags with custom foam protective boxing.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Match Hardware Jumpers & DIP Switches: Before removing the failed board from the rack, document the positions of all onboard DIP switches or configuration jumpers (such as thermocouple type selection or line frequency filtering). The replacement board must match these hardware settings identically.
• ❗ De-Energize Cabinet Power Before Removal: Always turn off power to the rack or isolate the I/O backplane before pulling the card. Hot-plugging non-hot-swappable analog cards can damage sensitive input operational amplifiers and A/D converters.
• ⚠️ Verify Shield Grounding on Field Wiring: Ensure that thermocouple extension wires are grounded at a single point (typically at the cabinet entry). Double-grounding shield wires creates ground loops that can degrade the accuracy of the new card.

Frequently Asked Questions (FAQ for Conversion)

Q: Does the Hitachi require external Cold-Junction Compensation (CJC)?

A: The features integrated onboard Cold-Junction Compensation circuitry designed to work directly with compatible rack terminal blocks for accurate room-temperature offset correction.

Q: How do I confirm is the correct replacement for my system?

A: Check the silkscreened part number or physical metal faceplate label on your existing module. It should explicitly state Model .

Q: Are these replacement modules supplied as new or reconditioned?

A: We offer both New Surplus (unused factory spares) and fully reconditioned, bench-tested surplus modules. Every unit undergoes live signal injection testing prior to shipment.

Q: What warranty coverage is included with this Hitachi module?

A: All industrial control and automation replacement parts are backed by a comprehensive 12-month full replacement warranty. If the card exhibits any operational defect within one year, we replace it or issue a full refund.
