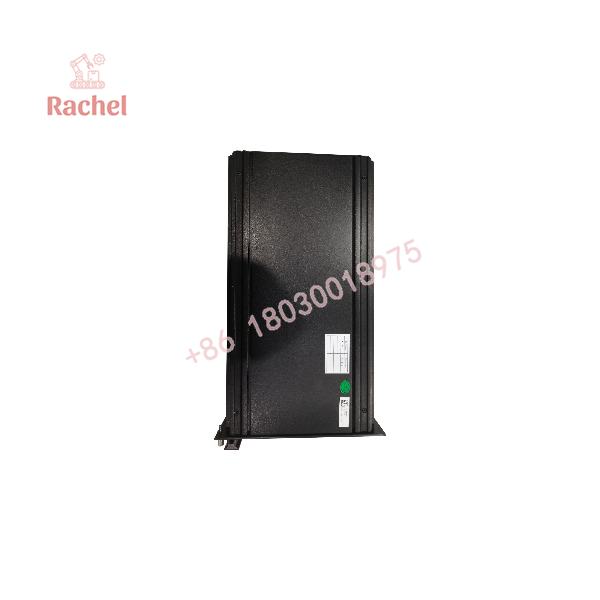

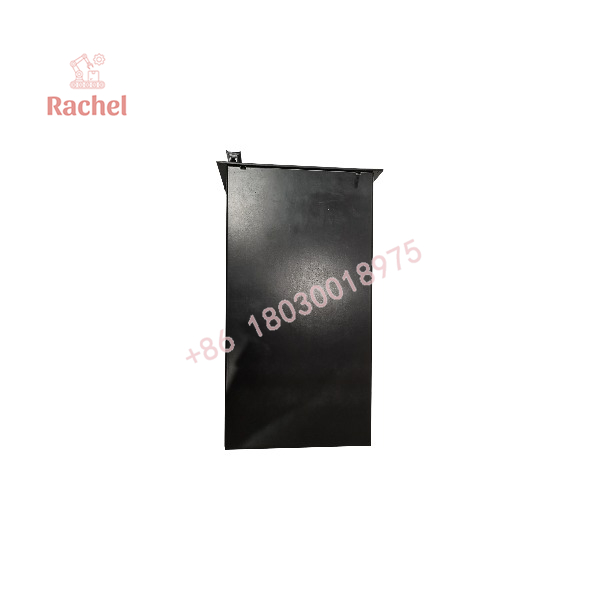

Hollysys FM801 DCS Controller with PROFIBUS-DP Interface

Description

Core Product Summary

The Hollysys FM801 is a main controller module designed for the HOLLiAS MACS distributed control system. It executes control functions within the DCS architecture and communicates with the system network and field-control network. Its documented hardware configuration includes an embedded x86-compatible processor operating at 100 MHz, 16 MB of DRAM, 1 MB of battery-backed SRAM, and an 8 MB solid-state disk.

The FM801 supports a redundant industrial Ethernet system network (SNET) and a PROFIBUS-DP control network (CNET). It can be installed in a compatible FM-series controller rack and used in a redundant controller configuration where supported by the system design. Its published specifications include a 24 VDC ±5% operating supply, maximum power consumption of 10 W, and dimensions of 71.12 × 177.8 × 305 mm.

For replacement projects, verify the existing controller configuration, rack compatibility, communication connections, and control-system software requirements before ordering.



Key Technical Specifications

Parameter	Specification
Manufacturer	Hollysys
Model	FM801
Product type	Main controller module
System family	HOLLiAS MACS FM series
Processor	Embedded x86-compatible processor
Processor frequency	100 MHz
DRAM	16 MB
SRAM	1 MB, battery-backed
Solid-state disk	8 MB
System network	SNET, redundant industrial Ethernet
SNET communication rate	10 Mbps in the documented configuration
Control network	CNET, PROFIBUS-DP
CNET communication rate	500 kbps
Operating supply	24 VDC ±5%
Maximum power consumption	10 W at 24 VDC
Operating temperature	0 to 45°C
Operating humidity	5–90% RH, non-condensing
Storage temperature	−15 to 65°C
Storage humidity	5–95% RH, non-condensing
Dimensions (W × H × D)	71.12 × 177.8 × 305 mm
Installation	Controller-cage rail mounting with bolt fixation

Specifications reflect published FM801 hardware documentation. Confirm the applicable manual and hardware revision for the installed system.



Engineering Selection Highlights

• Dedicated DCS control: Designed for the HOLLiAS MACS FM-series control architecture rather than as a general-purpose PLC CPU.
• Defined processing and memory resources: The 100 MHz processor, 16 MB DRAM, battery-backed SRAM, and solid-state storage form the documented controller hardware configuration.
• Redundant system-network capability: SNET supports communication across the industrial Ethernet system network.
• Field-network integration: CNET uses PROFIBUS-DP for communication within the field-control architecture.
• Redundancy support: FM801 can be used in a redundant controller arrangement when the rack, system configuration, and application support it.
• Compact controller-cage installation: Its specified dimensions and rail-and-bolt mounting arrangement help engineers check physical fit before replacement.



System Compatibility and Integration Requirements

The FM801 should be evaluated as part of the complete control-system configuration, not as an isolated electronic component.

Integration area	Selection consideration
Controller platform	Confirm the existing HOLLiAS MACS FM-series hardware architecture.
Controller rack	Verify the exact controller cage and mounting arrangement.
SNET	Check the existing redundant Ethernet topology and network connections.
CNET	Confirm PROFIBUS-DP configuration and the associated field-network devices.
Redundant operation	Verify main/standby assignment, configuration, and controller synchronization requirements.
System software	Confirm compatibility with the installed MACS software and engineering environment.
Power	Verify the specified supply at the controller connection and check the installed power arrangement.
Application configuration	Confirm that the required control logic and project configuration can be restored or transferred appropriately.

Do not assume that a controller is a direct plug-in replacement solely because its model number matches. Hardware revision, software configuration, network setup, and the condition of the existing system may affect replacement procedures.

Dimensions, Mounting, and Connection Notes

Published dimensions: 71.12 mm wide × 177.8 mm high × 305 mm deep.

Mounting method: Rail installation within the controller cage, with bolt fixation.

Before installation:

1. Compare the replacement module’s label and hardware revision with the installed unit.
2. Check the controller cage, retaining hardware, and available clearance.
3. Verify the required power supply and the relevant rack connections.
4. Identify the SNET and CNET connections and confirm the installed network arrangement.
5. For redundant systems, document the active and standby controller roles before removing hardware.
6. Follow the site’s approved shutdown, isolation, commissioning, and configuration-restoration procedures.

Although the FM801 is documented as supporting redundant configurations, do not assume that every installation supports live replacement or that a module swap requires no configuration work. Confirm the applicable system manual and site procedures.



Applications and System Role

The Hollysys FM801 is intended for DCS applications in which a HOLLiAS MACS FM-series controller performs control processing and coordinates communication with the broader automation system.

Typical system-level roles include:

• Process control: Executes configured control functions within the DCS.
• System communication: Connects to the system network through SNET.
• Field-control communication: Uses the PROFIBUS-DP-based CNET architecture.
• Redundant control arrangements: Supports deployments designed around main and standby controllers.
• Industrial plant automation: Serves as a controller component in a compatible HOLLiAS MACS installation.

The module’s suitability for a particular plant depends on the original system design, configured control functions, field-network architecture, and required software environment.



Detailed Product Overview

Controller architecture

The FM801 is a main controller in the HOLLiAS MACS FM-series hardware family. Its embedded x86-compatible processor operates at 100 MHz. The documented memory configuration includes 16 MB of DRAM and 1 MB of battery-backed SRAM, together with an 8 MB solid-state disk.

The SRAM’s battery-backed design is relevant to maintenance planning. Follow the manufacturer’s procedures for battery inspection or replacement, and confirm how controller data and configuration are preserved before servicing the module.

Communication architecture

The controller uses two distinct network roles in the documented system architecture:

• SNET: A redundant industrial Ethernet system network operating at a documented rate of 10 Mbps.
• CNET: A PROFIBUS-DP control network operating at a documented rate of 500 kbps.

These interfaces serve different purposes within the DCS architecture. During replacement or troubleshooting, verify network wiring, topology, configuration, and the condition of associated equipment instead of assuming a communication fault originates in the controller itself.

Power and environmental requirements

The published FM801 supply specification is 24 VDC ±5%, with maximum power consumption of 10 W at 24 VDC. The documented operating temperature range is 0 to 45°C, with operating humidity of 5–90% RH, non-condensing.

Confirm actual cabinet temperature, ventilation conditions, power quality, and grounding arrangements during installation. Environmental compliance alone does not guarantee reliable operation if the rack, connections, or supporting power system are defective.

Redundant operation and maintenance

FM801 hardware documentation describes redundant controller configurations. In a redundant installation, controller roles, system communication, configuration consistency, and changeover behavior must be managed according to the installed system’s design.

For maintenance or replacement, record the existing module identification, inspect connections, verify the controller’s operational state, and follow the approved recovery procedure. Avoid removing a controller from a running system unless the system documentation and plant procedure explicitly permit it.



Frequently Asked Questions

Q1: What is the Hollysys FM801?

The FM801 is a main controller module for the HOLLiAS MACS FM-series distributed control system.

Q2: What processor does the FM801 use?

Published hardware specifications identify an embedded x86-compatible processor operating at 100 MHz.

Q3: What are the FM801’s memory specifications?

The documented configuration includes 16 MB DRAM, 1 MB battery-backed SRAM, and an 8 MB solid-state disk.

Q4: Which communication interfaces does the FM801 support?

The documented architecture includes redundant industrial Ethernet for SNET and PROFIBUS-DP for CNET.

Q5: What is the FM801’s power requirement?

The published specification is 24 VDC ±5%, with maximum power consumption of 10 W at 24 VDC.

Q6: Can the FM801 be used in a redundant controller system?

Yes. FM801 is documented for redundant controller arrangements. Actual operation depends on the compatible rack, configuration, network setup, and installed system design.

Q7: What are the FM801’s dimensions?

The published dimensions are 71.12 × 177.8 × 305 mm (width × height × depth).

Q8: What should be checked before purchasing a replacement FM801?

Verify the exact model and hardware revision, controller-cage compatibility, network connections, supply requirements, software environment, and the ability to restore the existing project configuration.

Q9: Is the FM801 a direct replacement for every controller in the FM series?

No. Similar product-family membership does not establish interchangeability. Check the original model, system documentation, and configuration requirements before substituting another controller.

Q10: What information should be provided when requesting a quotation?

Provide the exact model number, label or nameplate details, required quantity, condition preference, delivery destination, and any available photographs of the existing module. These details help the supplier confirm the item being quoted.
