Description
Product Introduction & Engineering Value
The 05701-A-0325 is not a signal-acquisition card. Its job is power distribution. External DC power enters the System 57 sub-rack through this card, then passes through the Engineering Card and backplane to the rest of the system. Honeywell specifies a nominal 24 VDC external supply arrangement for the rack.
That makes this card a particularly important component during troubleshooting. A problem here can look like multiple failed control cards when the actual fault is at the common power-entry point. The card also provides RFI filtering and reverse-polarity protection, while its detachable TB1 terminal arrangement allows the card to be removed without individually disconnecting all connected wires.
Technical Specifications
- Manufacturer: Honeywell Analytics / Sieger
- Part Number: 05701-A-0325
- System Family: Honeywell System 57
- Primary System: 5701 / 5704-related rack architecture
- Card Type: DC Input Card
- Nominal Input Supply: 24 VDC
- Power Entry: External DC supply
- Main Terminal: TB1, two-part detachable terminal block
- Auxiliary Supply: Provision for standby/backup battery connection
- Protection: Fuse protection
- Polarity Protection: Reverse-polarity protection
- EMI/RFI Protection: RFI filtering
- Engineering Interface: TB2 connection to Engineering Card plug-in modules
Honeywell documentation also shows the 05701-A-0325 in both front-access and rear-access System 57 rack configurations, including 8-way and 16-way versions.
Power-distribution detail
The DC Input Card routes the incoming supply through the Engineering Card and sub-rack backplane. The PSU and auxiliary input paths are isolated by diodes, allowing a standby supply to be incorporated into the rack architecture.

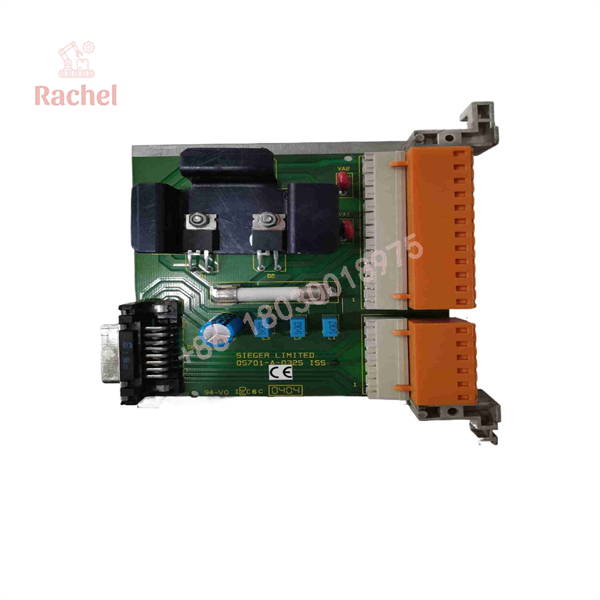

05701-A-0325

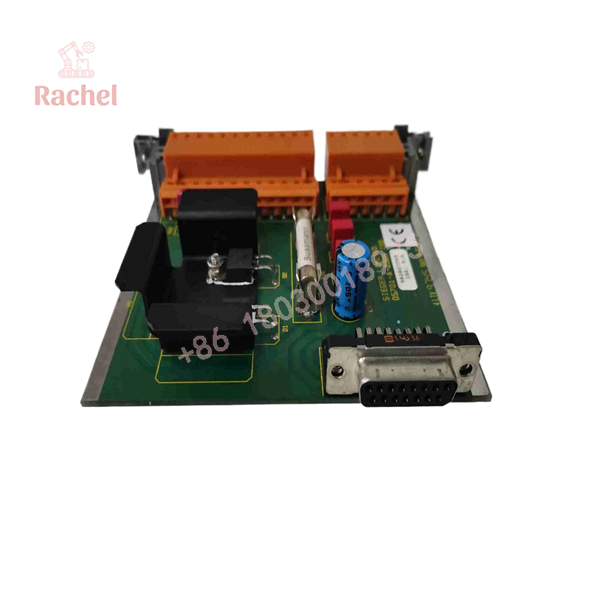

05701-A-0325
Field Application & the “Trench” Experience
A common legacy-system failure looks like this: several System 57 cards suddenly show abnormal behavior after a cabinet power event. Individual detector channels may appear dead, yet replacing channel cards produces no improvement. The technician eventually traces the problem upstream to the common DC input section.
The 05701-A-0325 is the card to inspect in that situation. Before replacing multiple expensive control cards, check the incoming 24 VDC supply, fuse condition, terminal connections, polarity, auxiliary supply arrangement, and voltage distribution through the rack. A bad common power interface can create symptoms across several otherwise healthy modules.
Specific application scenarios
- System 57 gas-detection rack power entry — distributing external 24 VDC to the rack’s control infrastructure.
- 5704 catalytic detection systems — providing the rack-level DC input path for systems containing multiple control cards.
- Legacy fire-and-gas cabinets — maintaining the original power architecture when the System 57 rack remains in service.
- Backup-powered detection installations — supporting an auxiliary DC source through the dedicated input arrangement.
Honeywell’s documentation explicitly lists the 05701-A-0325 among System 57 spares and associates it with the rack’s Engineering Card and sub-rack assemblies.
Transparency SOP: QA & Testing
For New Surplus 05701-A-0325 stock, inspection should concentrate on power integrity rather than attempting to characterize it like a conventional PLC I/O module.
Inspection sequence:
- Identity verification — confirm the PCB and label correspond to 05701-A-0325.
- Terminal inspection — check TB1/TB2 terminals for corrosion, cracked insulation, damaged screws, or evidence of overheating.
- Fuse inspection — verify the onboard protection components are intact and correctly fitted.
- PCB inspection — examine solder joints, connectors, tracks, and protection circuitry.
- Polarity/protection checks — perform appropriate offline electrical tests before energizing.
- Rack test — where the correct System 57 test rack is available, verify DC input and downstream power distribution under controlled conditions.
The part is now commonly listed as discontinued, so condition terminology deserves attention. Some aftermarket listings separately identify unused original packaging and refurbished stock. Those categories should not be treated as equivalent.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Assuming every 24 VDC card is interchangeable.
The 05701-A-0325 is specifically designed for the System 57 rack power-entry architecture. It is not simply a generic 24 VDC power distribution PCB.
⚠️ Trap #2 — Forgetting the auxiliary supply.
The System 57 documentation describes a standby battery connection and diode isolation between the main PSU and auxiliary supply. Disconnect and verify both sources before removing the card.
PRO TIP: If a rack has multiple apparently failed cards, measure the common DC distribution first. Do not start replacing individual channel cards until the rack-level supply path has been proven.
⚠️ Trap #3 — Ignoring rack loading.
Honeywell documentation warns about current flow through the backplane. In larger configurations or installations with substantial sensor power requirements, control cards may need to be powered through their associated relay-interface cards rather than relying entirely on the DC Input Card/backplane path.
⚠️ Trap #4 — Treating the terminal block as permanently fixed wiring.
TB1 is a two-part detachable terminal arrangement specifically intended to simplify card removal. Confirm the terminal orientation and wiring identification before reconnecting the replacement card.
Dynamic FAQ
What is Honeywell 05701-A-0325?
It is the DC Input Card for Honeywell System 57, providing the rack-level connection point for external DC power and its distribution through the Engineering Card and backplane.
What voltage does the 05701-A-0325 use?
The System 57 documentation describes an external nominal 24 VDC supply for the rack. Some third-party listings publish specific operating ranges, but the Honeywell documentation should be used as the primary reference when validating the installed system.
Does the 05701-A-0325 provide reverse-polarity protection?
Yes. Honeywell’s system documentation states that the DC Input Card provides RFI filtering and reverse-polarity protection, in addition to fuse protection.
Can the card accept a backup battery?
Yes. The System 57 documentation describes auxiliary DC input connections for a standby supply, with PSU and AUX inputs isolated from one another by diodes.
Is 05701-A-0325 still manufactured?
Current distributor and aftermarket documentation identifies the part as discontinued, while Honeywell’s published System 57 documentation continues to identify it as the original DC Input Card. Replacement availability therefore depends on remaining original, surplus, refurbished, or service inventory.
Is New Surplus 05701-A-0325 available with a warranty?
It can be, depending on the supplier. The seller should explicitly state whether the card is unused original surplus, new old stock, or refurbished, and provide the applicable warranty period. For this particular part, asking for photographs of the part-number label, PCB condition, and test evidence is worthwhile because it is a discontinued System 57 component.
