Honeywell Experion Series C DC-TUIO31 Universal IOTA

Description

Product Introduction & Engineering Value

Option C (The Veteran’s Take): Ask any control engineer who has spent weeks sorting out separate inventory lists for DI, DO, AI, and AO cards, and they will tell you that the Honeywell DC-TUIO31 is a game changer for simplifying panel space. It allows up to 32 independent field loops to land on a single non-redundant termination platform. The magic happens inside the execution framework, where software instructions determine whether a terminal functions as an analog loop or a discrete indicator switch.

This assembly streamlines your control architecture, cutting down the overall number of specialized spare parts you have to keep in the warehouse. Built precisely to align with the Experion Series C standard, it offers rugged electronic boundaries that isolate hazardous field signals away from delicate processing backplanes.

Technical Specifications

Field Application & The “Trench” Experience

The “Trench” Story

A plastics compounding facility had an exhaust blower assembly catch fire, scorching the field wiring junction box and blowing out three adjacent single-function I/O termination blocks. Standard replacements for those precise analog output modules were backordered by weeks. We provided an emergency DC-TUIO31 baseplate to rebuild the section. Instead of rewiring across separate enclosures to separate discrete status and analog valve signals, the site technician landed all remaining feedback switches and modulating damper signals onto the single DC-TUIO31 deck. By mapping each connection directly inside the Experion Control Builder tool, they resumed the production run before the weekend shift arrived.

Specific Application Scenarios

• Gas Flare Stack Igniter Monitoring: Couples ultra-fast thermocouple tracking loops alongside discrete spark-ignition feedback paths on one panel node.
• Wastewater Sludge Pump Stations: Collects wet-well level probe current loops (4-20mA) and running status dry contacts inside a small, footprint-limited outdoor junction kiosk.
• Distillation Column Reflux Control: Directs 4-20mA output control commands to control valve actuators while monitoring high-level alarm points.

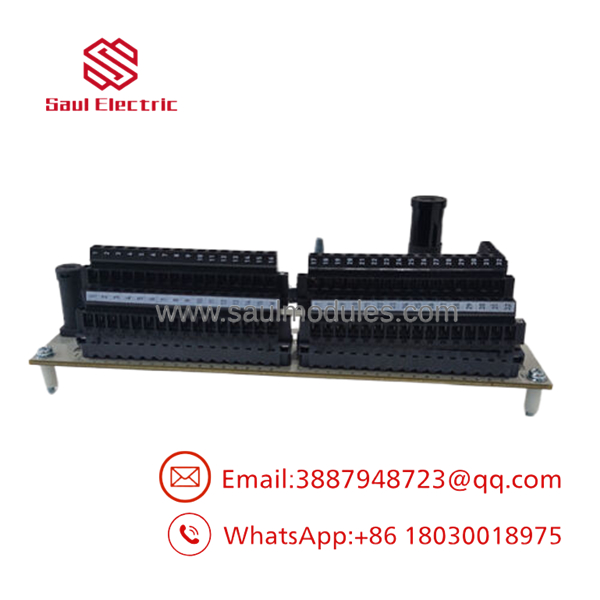

DC-TUIO31

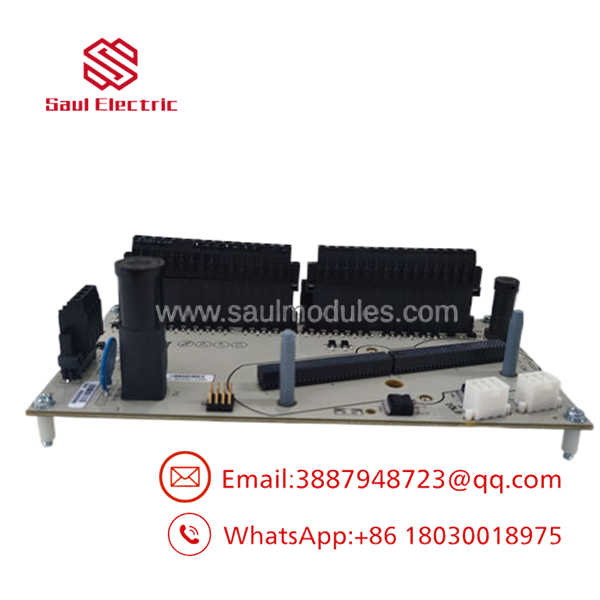

DC-TUIO31

Transparency SOP: QA & Testing

Every DC-TUIO31 baseplate passing through our operations must pass four quality checkpoints before authorization for field delivery:

• High-Definition Trace Audit: Surface-mount components, trace solders, and edge pins are examined under high magnification to rule out microscopic fracturing or corrosion.
• Point-by-Point Continuity Verification: All 32 screw terminal blocks are electrically verified for low resistance paths back to the IOM mounting interface pins.
• Multi-Signal Simulation Run: We dynamically cycle alternating blocks through both analog current loop simulations (4-20mA) and discrete voltage triggers to prove clean internal channel isolation.
• HART Pass-Through Validation: A live instrument communicator tests digital signal transmission through the analog channels to ensure clear pass-through diagnostics.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ The Pulse Channel Allocation: Keep in mind that while all 32 channels handle standard analog and digital signals, high-speed pulse inputs (such as turbine flowmeter frequencies up to 15 kHz) are physically limited to channels 15 through 18. Attempting to assign a high-frequency pulse counter outside of this hardware block will lead to unread inputs and configuration software failures.
• PRO TIP: When terminating 3-wire or 4-wire external-power instruments, verify where your field neutral maps. Landing external power lines onto internal loop-powered terminals can cause the 25 mA current limiter to trip, rendering the specific point dead until power is cycled.
• ⚠️ Extended Temperature Cabinet Layouts: The module is rated down to -40°C for remote panels. However, if it shares an unventilated housing with high-density 24V loop power supplies, localized heat buildup can accelerate component degradation. Always maintain at least two inches of clear vertical space around the non-redundant baseplate edge to ensure optimal cooling airflow.

Dynamic FAQ

•
  • A: “DC” prefix units are typically sized and configured to match specialized footprint patterns (such as 12-inch or distinct system framing variants) or specific regional manufacturing lines within the Experion Series C family, though they execute the same Universal I/O logical parameters.
• Q: Does a channel short-circuit on field wiring risk damaging adjacent operational points?
  • A: No. The DC- features independent electronic current limiting at 25 mA per loop. An active short on channel 4 will isolate that single path without disrupting signal processing on the remaining 31 loops.
• Q: Can this termination assembly be modified for dual-line redunancy later?
  • A: No, this is physically configured as a non-redundant termination assembly. If your control loop strategy changes to require full channel redundancy, you must replace the baseplate with the corresponding redundant module variant.
• Q: How are old configuration profiles handled on your surplus or reconditioned assemblies?
  • A: Every assembly is physically wiped of any lingering field debris, electrically reset to warehouse standards, and confirmed to have no persistent diagnostic faults before being packed in anti-static shipping materials.
