Description
Product Introduction
The Honeywell 05701-A-0351 is a Single-Channel Control Card for the Honeywell Analytics System 57 (5701) gas detection platform. It processes signals from a single field gas detector, displays measured gas concentration, manages alarm thresholds, and interfaces with relay and analog output modules within the System 57 rack.
Unlike interface or relay cards in the same product family, the 05701-A-0351 performs the primary gas measurement and alarm logic for one detection channel. It supports either catalytic bridge sensors or 4–20 mA transmitters, depending on the installed sensor drive configuration. For existing System 57 installations, replacing the correct control card is usually far less disruptive than upgrading the complete fire and gas system.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Honeywell Analytics |
| Model | 05701-A-0351 |
| Product Family | System 57 (5701) |
| Product Type | Single-Channel Gas Control Card |
| Detection Channels | 1 |
| Compatible Sensors | Catalytic Bridge or 4–20 mA (depending on installed configuration) |
| Supply Voltage | 18–32 VDC |
| Power Consumption | Approx. 3.25–3.75 W |
| Display | Backlit LCD with digital and bar graph indication |
| Alarm Functions | Programmable Alarm Levels, Fault Monitoring |
| Remote Functions | Alarm Reset and Inhibit |
| Operating Temperature | -5°C to +55°C |
| Operating Humidity | 20–90% RH (Non-condensing) |
| Dimensions | 3U High × 25 mm Wide |
| Weight | Approximately 165 g |
| EMC Approval | EN50270 |
| Installation | System 57 Front or Rear Access Rack |
Application Scenarios & The “Trench” Experience
A refinery completes detector calibration before startup, yet one gas channel immediately reports a fault. The detector is replaced. The field cable is megger-tested. The power supply is checked.
Nothing changes.
The actual problem is a failed 05701-A-0351 control card. Because only one detection channel is affected, the fault is often mistaken for a field device problem.
Typical Applications
Oil & Gas — Combustible gas monitoring — Processes signals from catalytic or 4–20 mA gas detectors while providing local alarm indication.
Chemical Plants — Toxic gas monitoring — Executes alarm logic for ammonia, chlorine, hydrogen sulfide, and other hazardous gases.
Offshore Platforms — Fire & Gas systems — Provides dedicated single-channel monitoring where system availability is critical.
Power Generation — Hydrogen monitoring — Interfaces with fixed gas detectors protecting generator and battery rooms.
LNG Facilities — Process safety systems — Forms part of the distributed gas detection architecture integrated with plant shutdown systems.
Field Replacement Example
During a scheduled turnaround at a petrochemical plant, one catalytic methane detector consistently indicated 0% LEL despite successful sensor calibration. Maintenance replaced the detector head without resolving the issue. After installing a tested 05701-A-0351 control card, the channel immediately resumed normal operation. Production resumed on schedule, and the original card was later found to have an analog processing fault caused by long-term component aging.

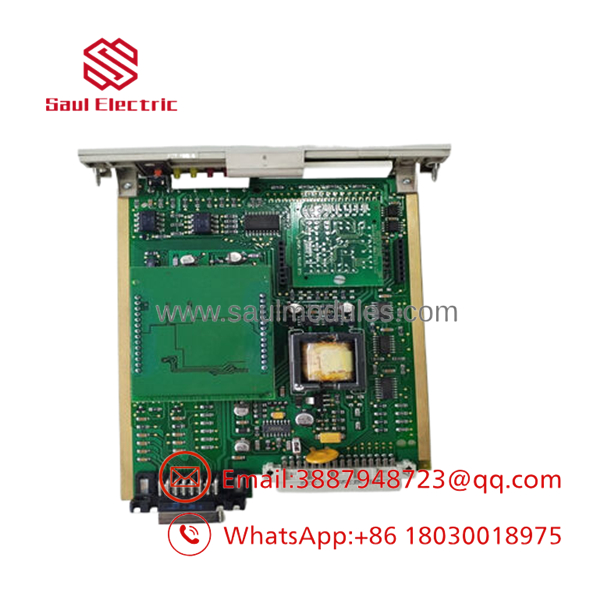

- 05701-A-0351

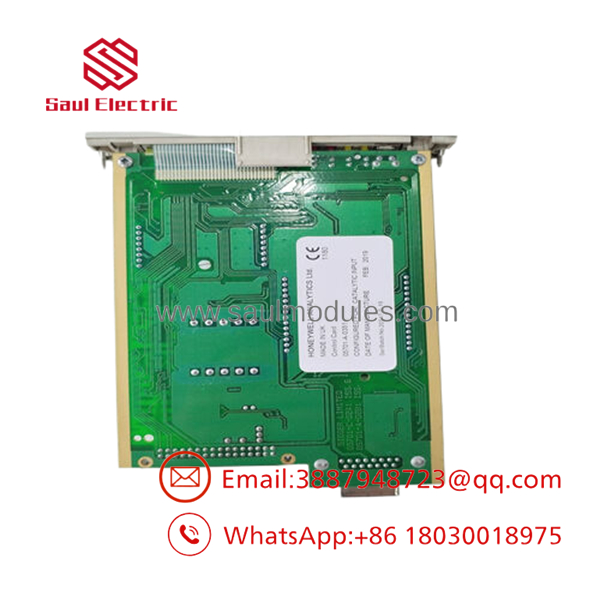

- 05701-A-0351
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Honeywell System 57 racks whenever practical.
- Inbound Inspection
- Verify Honeywell model number and PCB revision.
- Inspect edge connectors and display.
- Examine relay interface connectors.
- Screen for counterfeit markings and previous repair work.
- Live Rig Testing
- Install the card in a System 57 rack.
- Verify successful power-up.
- Simulate detector inputs.
- Confirm LCD operation.
- Verify alarm activation and reset functions.
- Electrical Parameter Checks
- Measure operating current.
- Verify analog signal processing.
- Test alarm outputs through relay interface cards.
- Firmware & Hardware Verification
- Record hardware revision.
- Verify compatibility with the installed System 57 backplane.
- Confirm communication with optional interface modules.
- Final QC & Packaging
- Complete functional inspection.
- ESD-safe packaging.
- Shock-resistant shipping materials.
- Serial number traceability.
The Veteran’s Tech Trap Guide
⚠️ Don’t confuse the control card with the sensor drive module.
The 05701-A-0351 performs control and alarm processing. The sensor drive modules (05701-A-0283 and 05701-A-0284) provide field interface functions. Ordering the wrong module won’t solve the problem.
⚠️ Record alarm settings before replacement.
Alarm thresholds, inhibit functions, and engineering parameters should always be documented before removing the existing card.
❗ Verify the detector type.
Catalytic bridge detectors and 4–20 mA transmitters require different hardware configurations. Installing the wrong configuration will generate immediate faults instead of valid gas readings.
⚠️ Don’t skip a bump test.
Replacing the control card confirms electronics only. Every gas channel should receive a functional bump test and alarm verification before returning the system to service.
Frequently Asked Questions (FAQ)
Q1. What is the Honeywell 05701-A-0351?
It is the Single-Channel Control Card used in the Honeywell Analytics System 57 (5701) fixed gas detection system. It manages one gas detection channel, including measurement, alarm processing, and status indication.
Q2. Does it support both catalytic and 4–20 mA gas detectors?
Yes. The control card can operate with catalytic or 4–20 mA detector configurations when paired with the appropriate System 57 sensor interface hardware.
Q3. Can the control card be replaced while the rack is energized?
No. Honeywell recommends isolating power before removing or installing System 57 modules. Live replacement may damage the card or generate unwanted alarm conditions.
Q4. Is the 05701-A-0351 still manufactured?
No. Honeywell announced the end of life of the System 57 platform. New installations have transitioned to newer fire and gas systems, while replacement cards are generally sourced from surplus inventory and specialist repair providers.
Q5. Why is this module still widely requested?
Thousands of System 57 installations remain operational in refineries, offshore facilities, LNG terminals, and chemical plants. Replacing an individual control card is significantly less expensive than replacing an entire certified fire and gas system.
Q6. What warranty is typically offered?
Most reputable industrial automation suppliers provide a 12-month functional warranty on tested New Surplus or professionally refurbished modules. Warranty coverage varies by supplier.
Q7. What should be verified before installation?
Verify the exact 05701-A-0351 part number, rack position, detector type (catalytic or 4–20 mA), alarm configuration, field wiring, and system documentation. Before returning the gas detection system to service, perform a complete functional test, alarm verification, and detector bump test in accordance with the site’s safety procedures.
