Honeywell 05701-A-0326 System 57 Engineering Card

Description

Product Introduction

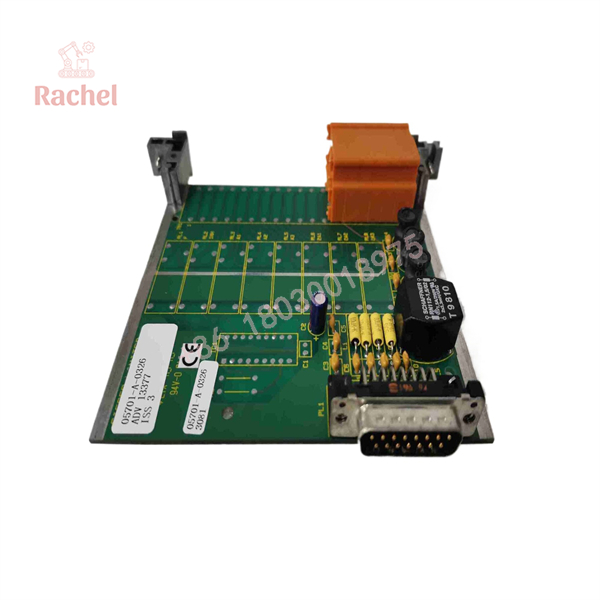

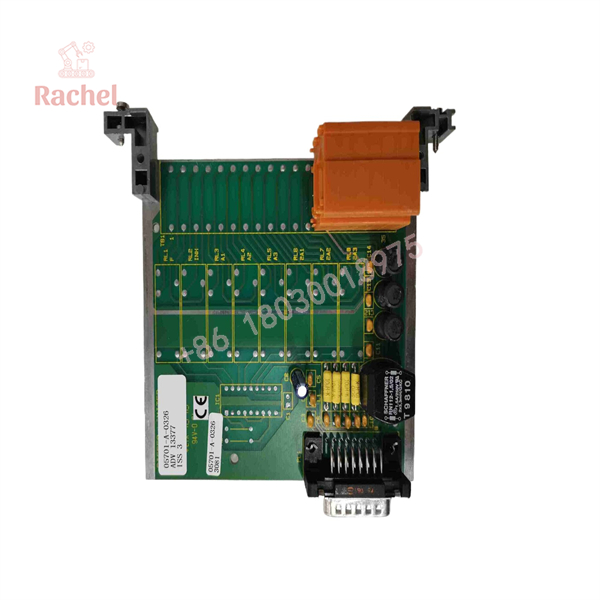

The Honeywell 05701-A-0326 is the dedicated engineering card for the System 57 gas detection and fire monitoring platform. Installed into the master engineering slot of a System 57 sub-rack, it provides the serial communication bridge and central configuration interface required to calibrate, interrogate, and manage individual 5701 single-channel or 5704 four-channel control cards.

Unlike standard I/O processing cards that interface directly with field gas detectors, the 05701-A-0326 serves as the system’s administrative gateway. It allows maintenance personnel to connect configuration software, read live rack diagnostic logs, and pass serial Modbus RTU telemetry upstream to plant DCS or SCADA networks without interrupting active channel monitoring loops.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A LNG terminal in Louisiana lost SCADA visibility across an entire tank farm gas safety rack during a midnight thunderstorm. The main control panel flagged a global serial bus timeout error. While local 5701 cards continued monitoring LEL levels locally, no gas telemetry was reaching the central safety dashboard. The culprit was a blown RS485 transceiver IC on the legacy engineering card caused by a lightning voltage surge on the serial link. Pulling the dead card, verifying the RS485 termination DIP switches on a replacement 05701-A-0326, and seating the new module restored Modbus communication to the main control room in under 20 minutes.

• LNG Regasification Terminals – Centralized SCADA Telemetry – Bridges local gas rack channel data to facility-wide safety monitoring networks.
• Offshore Oil & Gas Racks – System Diagnostics & Configuration – Provides a single local access point for technicians to configure alarm setpoints on multi-channel control cards.
• Chemical Manufacturing Plants – Safety Instrumented Systems (SIS) – Outputs digital fault and status logs directly to safety PLCs via Modbus serial protocol.

05701-A-0326

05701-A-0326

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Honeywell System 57 racks.

1. Inbound Visual & Hardware Audit: Inspect front-panel DB9 connector, latching mechanisms, edge connector tracks, and surface-mount components under optical magnification.
2. Backplane Power-On Diagnostic: Seat the card in a live System 57 rack chassis; verify proper boot sequence, power rail regulation, and LED handshake routines.
3. Serial Communication Loopback Test: Connect via RS232/RS485 using Honeywell System 57 engineering software; perform read/write parameter cycles to verify zero packet loss.
4. Modbus Master-Slave Communication Sweep: Query live 5701 channel status through the engineering card to ensure error-free data pass-through across the backplane bus.
5. ESD Protection & Packaging: Install connector caps, seal inside a heavy-duty anti-static shielding bag with fresh desiccant, and ship in customized foam enclosures.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Check DIP switch settings before installation: The 05701-A-0326 uses onboard DIP switches to set Modbus baud rates, parity, and node addresses. Copy the exact switch positions from the old card onto the replacement card before sliding it into the rack slot.
• ❗ Verify RS485 bus termination: If this card sits at either physical end of a daisy-chained Modbus network, ensure the bus termination resistor jumper is set correctly. Missing or duplicate termination will cause intermittent communication dropouts across the entire serial loop.
• ⚠️ Do NOT unplug serial cables under load without ESD grounding: Static discharge through the front-panel DB9 port will instantly destroy the onboard serial driver chips. Touch a grounded cabinet frame before plugging in your laptop cable.
• ❗ System 57 rack position matters: Ensure the engineering card is inserted into the designated master slot on the backplane (typically the far right slot, depending on chassis layout). Placing it in a standard sensor channel slot will cause a backplane bus conflict.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the Honeywell 05701-A-0326 engineering card required for the System 57 rack to function?

A: No. Individual 5701 and 5704 control cards will continue to monitor sensors and trip local alarm relays without the engineering card present. However, you need the 05701-A-0326 to perform software configurations, system diagnostics, or stream digital telemetry to a SCADA/DCS.

Q: Can I hot-swap the 05701-A-0326 card while the rack is powered?

A: Yes, the engineering card can generally be inserted or removed live without shutting down power to the rest of the rack. However, removing it will temporarily interrupt serial communications to any connected upper-level automation systems.

Q: What software do I need to connect to the 05701-A-0326 card?

A: Configuration and diagnostic procedures require Honeywell’s proprietary System 57 configuration software suite running on a Windows PC connected via the front DB9 port or rear RS232/RS485 terminals.

Q: Why buy a refurbished or new-surplus 05701-A-0326 instead of ordering from Honeywell?

A: As Honeywell has phased out portions of the legacy System 57 line, factory lead times for replacement boards can extend into months. Our certified surplus stock provides immediate, pre-tested replacement hardware to eliminate critical plant downtime.

Q: What warranty comes with this engineering card?

A: We provide a full 12-month replacement warranty on all 05701-A-0326 modules. If the board experiences hardware or communication failures under normal operating conditions within one year, we send out a replacement immediately.
