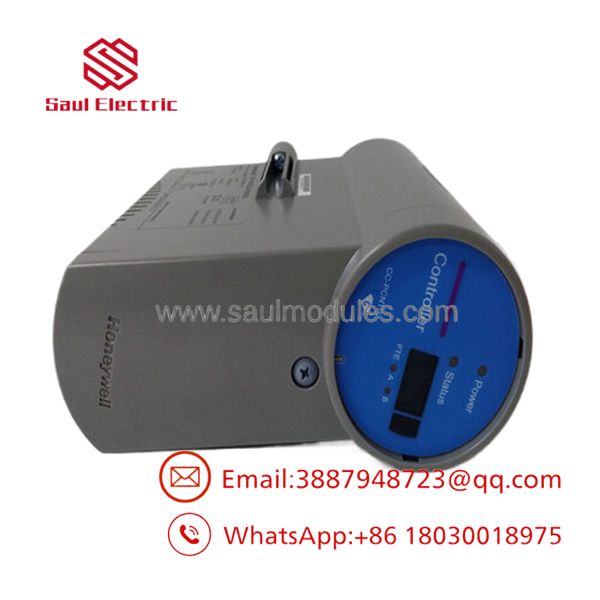

Honeywell CC-PCNT02 51454551-275-1 C300 Controller Module

Description

Product Introduction & Engineering Value

Finding out your main process controller just dropped offline during a midnight shift is a nightmare. The Honeywell CC-PCNT02 is built precisely to prevent that headache, acting as the deterministic core of the Experion PKS architecture. It runs the Control Execution Environment (CEE) flawlessly, ensuring your loops stay closed and your timing remains dead accurate.

This specific revision handles demanding control strategies without breaking a sweat. It mounts directly onto the standard C300 input/output termination assembly, linking smoothly with your existing Series 8 I/O hardware. If you need to drop in a swap-out unit or build out a redundant pair to protect a critical asset, this controller fits right into your current platform without requiring a complete system overhaul.

Technical Specifications

• Operating Voltage: 24 VDC nominal (22 to 30 VDC acceptable range)
• Current Consumption: 1.3 A maximum at 24 VDC
• Processor Framework: Proprietary deterministic execution engine
• Network Interfaces: Dual Fault Tolerant Ethernet (FTE) ports via baseplate
• Execution Sub-interval: Down to 50ms for high-speed loops
• Conformal Coating: Standard on 51454551-275 variants for harsh environment protection
• Operating Temperature Limit: 0°C to 60°C (32°F to 140°F)
• Relative Humidity Range: 5% to 95% RH, non-condensing

Field Application & The “Trench” Experience

The “Trench” Story

A paper mill in the Pacific Northwest faced intermittent freezes on their main bleaching line controller. The older revision module was failing under thermal stress during seasonal ambient shifts. We dispatched a clean, tested CC-PCNT02 51454551-275 as an emergency replacement. Because the plant kept up-to-date checkpoints, the instrument tech swapped the physical module onto the existing IOTA, synchronized the flash firmware via the Experion Control Builder, and restored the redundant pair to “Green” status in under twenty minutes. The mill avoided a multi-day shutdown that would have cost thousands in lost pulp production.

Specific Application Scenarios

• Continuous Catalyst Regeneration (CCR): Manages complex temperature control profiles across multiple heating zones.
• Multi-Effect Evaporator Trains: Regulates critical pressure differentials and liquor density balancing algorithms.
• Boiler Feedwater Deaeration: Executes fast-acting, split-range level and pressure loop logic to prevent thermal shock.

Transparency SOP: QA & Testing

Every CC-PCNT02 module leaving our facility undergoes a strict validation protocol to confirm it performs like new:

1. Visual inspection: We check for micro-cracks on the housing, bent connector pins on the backplane interface, and signs of thermal stress on internal components.
2. Power-up diagnostics: The unit is mounted to a live test IOTA to ensure the internal power distribution circuits stabilize without excessive current draw.
3. Firmware verification: We clear previous configuration residues and verify bootloader integrity using Experion diagnostic utilities.
4. FTE communication burn-in: The module undergoes a 24-hour load test where both physical network channels are flooded with traffic to verify that no packet loss or port dropouts occur.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ The Firmware Lockout: Do not assume a new surplus CC-PCNT02 will talk to your Experion server out of the box. If your engineering station runs R410 and this module ships with R500 firmware, it will refuse to load. You must use the Honeywell Firmware Loader utility over a dedicated point-to-point connection to flash the matching boot and application code before mounting it into a production cluster.
• PRO TIP: Look closely at the backplane pins before pushing the module home on the IOTA. The high-density connector can suffer bent pins if the module is rocked side-to-side during insertion. Push straight, even pressure until the locking levers click.
• ⚠️ Redundancy Mac Address Sync: When replacing one half of a redundant pair, verify that the Redundancy Cable is disconnected until the new module’s firmware matches the primary unit exactly. Connecting them prematurely with mismatched code can cause the primary online controller to fault out.

CC-PCNT02 51454551-275 -1

Dynamic FAQ

• Q: Is this 51454551-275 module a direct replacement for older CC-PCNT01 models?
  • A: No. While they perform similar roles within Experion, the CC-PCNT02 features updated internal hardware architecture and requires checking your specific IOTA baseplate compatibility and minimal Experion software release levels.
• Q: How do you verify the integrity of the onboard battery/RAM backup?
  • A: During our testing cycle, we charge the internal energy storage component, remove main power for a prolonged duration, and verify that the module retains its boot parameters and diagnostic log history without wiping.
• Q: What condition is this unit shipped in, and what warranty covers it?
  • A: We supply this as a fully tested, clean New Surplus or reconditioned unit. It includes a comprehensive 1-year warranty that mirrors the protection period of an OEM part.
• Q: Does this unit come with the IOTA baseline assembly?
  • A: No, this part number represents the CPU controller module only. The input/output termination assembly (IOTA) must be purchased separately if you are doing a greenfield installation.
