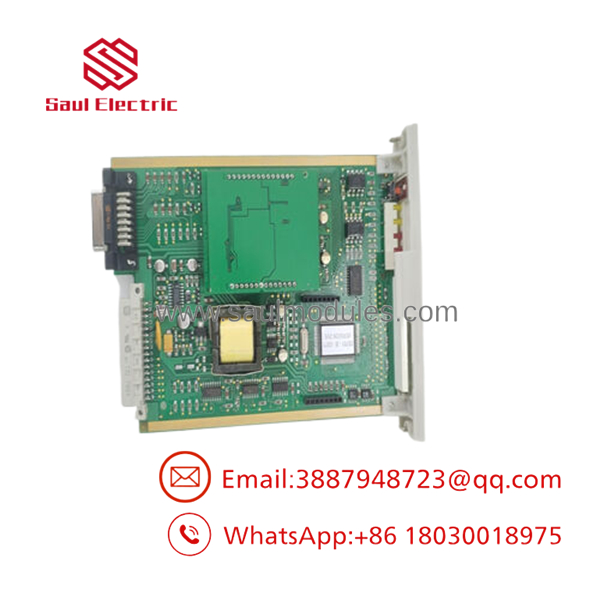

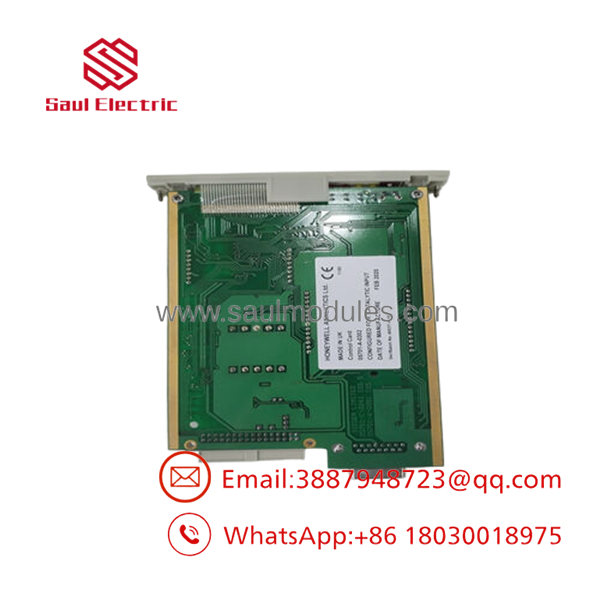

Honeywell 05701-A-0302 System 5701 Single-Channel Control Card

Description

Product Introduction & Engineering Value

Few components carry as much safety responsibility as a gas monitoring processor. When a toxic or combustible gas leak occurs, a delayed or missed signal from an instrument loop can have severe consequences for both personnel safety and facility infrastructure. The Honeywell 05701-A-0302 control card tackles this challenge by providing dedicated, independent processing hardware for a single field detector gas loop.

By processing input signals on its own dedicated circuit board rather than sharing processing cycles on a multi-channel CPU, this card guarantees true signal independence and fast response times. It slides directly into any standard System 57 rack enclosure, making it a reliable solution for maintaining compliance and safety standards without requiring full control loop modifications or complete system engineering overhauls.

Technical Specifications

Field Application & The “Trench” Experience

During a routine maintenance inspection at a chemical storage facility, a technician discovered that an older gas monitoring module on a toxic chlorine vapor loop was suffering from an internal component fault. The module could no longer trigger the exhaust fan relay grid. Because this safety loop monitored an active transfer line, leaving the station blind for even a single shift was not an option.

Our team expedited a New Surplus 05701-A-0302 module to the site. The instrument engineer disabled the specific rack slot, unlatched the top and bottom front screws, pulled the faulty module straight out of the backplane, and slid the fresh card home. After verifying the onboard jumper settings and executing a quick calibration gas injection at the field detector head, the front LED matrix synced correctly, restoring full facility safety monitoring in minutes.

Niche Application Environments:

• Catalytic Cracking Unit Toxic Gas Rings: Monitors hazardous combustible gas accumulation near heavy furnace boundaries.
• Wastewater Digester Methane Monitoring: Tracks localized explosive gas build-ups and activates emergency vent hoods via on-card relays.
• Battery Storage Cleanrooms: Continuously evaluates airborne hydrogen concentrations to prevent ignition conditions.

Transparency SOP: QA & Testing

Every 05701-A-0302 card arriving at our technical diagnostic workshop goes through a rigorous four-stage physical and electrical verification process:

1. Signal Range Step Test: We inject highly precise mA signals (ranging from 4.0mA up to 20.0mA) to confirm the front-panel LCD and internal logic interpret gas concentrations with zero drift.
2. Relay Continuity Under Load: All three onboard alarm relays and the dedicated fault loop are cycled mechanically to verify that the contact fingers close cleanly and show low resistance.
3. Backplane Interface Inspection: The rear edge-connector pins are checked under magnification for oxidation or misalignment, ensuring tight electrical contact upon rack installation.
4. Thermal Stability Evaluation: The module is monitored under continuous power inside an industrial test environment to ensure the analog-to-digital converter circuitry remains completely stable.

05701-A-0302

05701-A-0302

The Veteran’s Tech Trap Guide

⚠️ CRITICAL RETROFIT WARNINGS

• The Part Number Configuration Code: The “0302” suffix at the end of this part number defines the specific factory hardware configuration, including specific input filtering and factory default relay operations (e.g., energized vs. de-energized states). Swapping this card with an older 0102 or alternative variant without thoroughly verifying your field wiring layout can result in reversed alarm relay logic, leaving fans or sirens non-responsive during an actual gas leak.
• Sensor Type Compatibility: This card is explicitly configured for standard 3-wire or 2-wire 4-20mA loop transmitters. Do not attempt to wire low-voltage catalytic bead sensor heads directly into this card’s input pins without a proper field transmitter module, as the raw millivolt signal will fail to register.
• Card-Edge Insertion Guide: When pushing the module into the system rack, ensure it aligns perfectly with the upper and lower plastic guide tracks. Forcing the front face panel when it is misaligned can bend the gold-plated pins on the rack backplane, ruining adjoining safety channels.

Dynamic FAQ

• Q: Are the three alarm relays on the 05701-A-0302 card latched or unlatched by default?
  • A: The card’s default relay operation can be configured via internal board jumpers. You can set them to latching (requiring a manual front-panel reset after a gas leak clears) or non-latching (automatically resetting when gas levels fall below the setpoint).
• Q: Can this specific card handle flammable gas detection as well as toxic gas inputs?
  • A: Yes, provided the field sensor unit outputs a calibrated 4-20mA current loop. The card simply measures the current loop value and scales its front panel display accordingly, whether it is reading LEL (Lower Explosive Limit) or parts-per-million (PPM).
• Q: Does your New Surplus stock for this item include the rear termination module?
  • A: This specific part number represents the plug-in control card itself. If your project installation requires the matching rear terminal block assembly that screws onto the back of the sub-rack frame, please specify that with our team during checkout.
• Q: What is the recommended field testing interval to guarantee this control card functions reliably?
  • A: While the solid-state electronics on the card are highly durable, safety regulations typically require checking the entire gas loop—including injecting test gas at the field transmitter—at least once every 3 to 6 months to ensure proper relay trip response.
