Honeywell 05704-A-0145 System 57 Four-Channel Gas Control Card

Description

Product Introduction & Engineering Value

While the previous 05701 series cards focus strictly on a one-card-per-channel design, the Honeywell 05704-A-0145 changes the architectural equation by delivering four independent processing channels in a single card slot. For facilities facing space constraints in their instrument racks, this quad-channel card offers a major real estate advantage, allowing up to 60 channels of continuous gas monitoring in a standard 19-inch sub-rack.

The engineering trade-off is elegantly handled. Even though the four channels share a front bezel and a sequential LCD screen, the internal microprocessors isolate each 4-20mA sensor loop circuit. A fault or field short on channel 2 will not interrupt the monitoring performance or alarm reporting of channels 1, 3, or 4, giving you high-density panel scaling without compromising fundamental safety isolation.

Technical Specifications

Field Application & The “Trench” Experience

A large offshore production platform was executing a control room expansion to add four new gas sniffers around a newly installed compressor package. The main safety cabinet was tightly packed, with only one physical slot left open in the System 57 sub-rack. Installing four individual single-channel cards would have forced the platform operators to install an expensive secondary expansion chassis and wire new power bus lines.

Instead, the instrumentation crew dropped in a single 05704-A-0145 quad card. They landed the four new 4-20mA sensor pairs onto the matching quad rear termination module, powered up the slot, and configured the zone settings via the front software interface. The single open slot successfully handled all four new field loops, saving thousands of dollars in structural hardware modifications and field engineering labor.

Niche Application Scenarios:

• Multi-Point Perimeter Safety Loops: Ideal for monitoring four separate points along a facility fence line or building exterior using a single slot.
• Quad-Zone Gas Storage Vaults: Tracks distinct concentration readings across four separate storage quadrants simultaneously.
• Automotive Test Cell Arrays: Handles high-density sensor grids inside compact engine evaluation rooms where cabinet footprint space is at a premium.

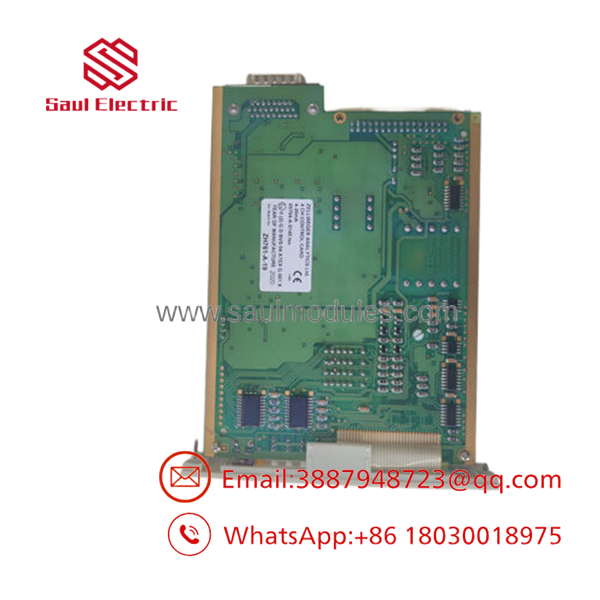

05704-A-0145

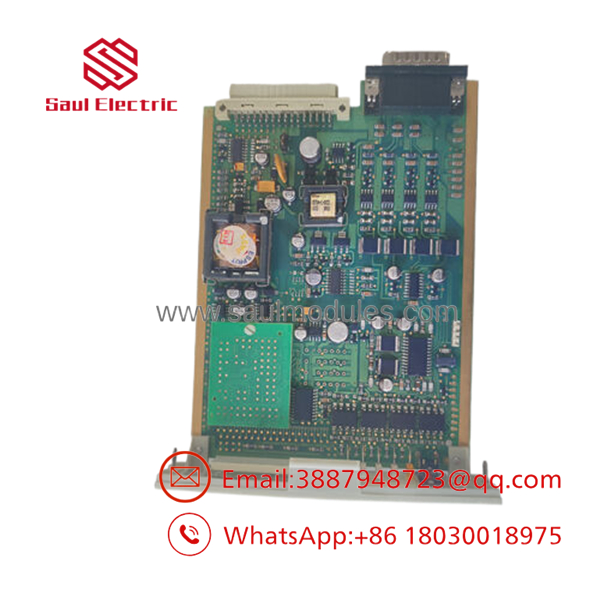

05704-A-0145

Transparency SOP: QA & Testing

Every 05704-A-0145 four-channel card managed by our validation team goes through an intensive multi-point electrical stress routine:

• Simultaneous 4-Channel Input Injection: We apply varying mA signals to all four loop inputs at the same time to ensure the card processes concurrent data streams accurately without cross-talk or processing lag.
• Sequential Display Cycling Verification: The LCD screen firmware is checked to ensure it steps smoothly through all four channel readouts and locks correctly onto a specific channel when an alarm state is triggered.
• Thermal Footprint Scan: Because quad-processing cards pack more components into a slim space, we run the module under full operational load to confirm thermal dissipation remains safely within standard limits.
• Edge Connector Pin-out Calibration: Each backplane pin track is mechanically tested for solid connection seating to avoid intermittent communication dropouts in vibrating industrial environments.

The Veteran’s Tech Trap Guide

⚠️ CRITICAL ARCHITECTURAL WARNINGS

• The Shared Relays Configuration Trap: Unlike single-channel cards that have dedicated on-board physical relays, the 4-channel card typically routes its alarm signals through the rack backplane to drive shared relay output cards or digital bus nodes. When retrofitting or adding this card, you must program the backplane memory mapping correctly so the system knows exactly which of the four channels should trip which specific safety relay.
• Sequential Display vs. Instant View: Because the screen sequentially displays channel values, a technician looking at the card face may have to wait a brief moment for it to rotate to a specific channel’s exact numerical PPM value. Keep this in mind during live calibration loops; always use the per-channel LED lights for immediate status confirmation.
• Pin Alignment Safety: With four separate loops running through one card edge connector, proper alignment is critical. Ensure the card tracks cleanly into the chassis guide slots to avoid bridging adjacent pins and causing false alarms on multiple loops simultaneously.

Dynamic FAQ

• Q: Can I mix different gas types (e.g., Oxygen depletion and Combustible LEL) on the same 05704-A-0145 card?
  • A: Yes. As long as every field sensor transmits its data via a standard 4-20mA linear loop, you can program each channel on the card with independent engineering units, gas names, and alarm thresholds.
• Q: What happens if I only have three sensors active on this 4-channel card?
  • A: You can easily disable the unused channel via the front programming interface. This stops the card from scanning that loop and prevents a continuous “Open Circuit Fault” alarm on the unassigned channel pins.
• Q: Is this module compatible with older Sieger-branded System 57 backplane hardware?
  • A: Yes, the card is fully backward-compatible with legacy System 57 rack footprints. However, you must verify that your rear termination assembly has the proper high-density pin connections required to land four separate wire pairs.
• Q: How do you identify which specific channel is in an alarm state if the screen is mid-cycle?
  • A: Each channel features a dedicated vertical row of status LEDs directly on the front panel face. If channel 3 hits a high alarm state, its specific red LED will light up instantly, even if the central LCD screen is currently displaying the value for channel 1.
