Description
Product Introduction
The Honeywell 10024/I/I is a 24 VDC Fail-Safe Digital Input Module designed for the Honeywell Fail-Safe Controller (FSC) and Safety Manager platforms. Engineered for critical safety instrumented systems (SIS), Emergency Shutdown (ESD), and Fire & Gas (F&G) applications, this card processes discrete inputs from field switches and interlocks while continuously conducting line monitoring and internal diagnostic self-tests.
In high-risk process environments, the 10024/I/I ensures that a single component failure within the card does not prevent a safety trip or cause a false process shutdown. Built on Honeywell’s high-integrity fault-tolerant architecture, it isolates field-side line faults from the central processor backplane, maintaining real-time safety loop availability.
Key Technical Specifications
| Parameter | Value |
| System Compatibility | Honeywell FSC (Fail-Safe Controller) & Safety Manager |
| Input Channels | 16 discrete fail-safe digital input channels |
| Nominal Input Voltage | 24 VDC (18 VDC to 30 VDC operational range) |
| Safety Integrity Level | Certified for use in up to SIL3 safety loops |
| Channel Diagnostics | Real-time open-circuit and short-circuit line monitoring |
| Isolation | Galvanic isolation between field contacts and system bus |
| Power Dissipation | Low internal power consumption (< 10W) |
| Operating Temperature | -0°C to +60°C (32°F to 140°F) |
Application Scenarios & The “Trench” Experience
During a turnaround at an ethylene cracking plant, an outdoor pressure switch field loop suffered water ingress inside the junction box, creating a high-resistance ground path. On a standard PLC input card, this ground fault could cause an undetected “freeze” state or trigger an immediate, unnecessary unit shutdown. The Honeywell 10024/I/I module detected the line impedance anomaly during its routine self-test sweep, flagged a line-monitoring alarm in Safety Builder/FPS software, and allowed maintenance crews to service the junction box without tripping the main process unit.
- Refinery Emergency Shutdown (ESD) – Monitors field pushbuttons, pressure switches, and gas interlocks.
- Offshore Platform Fire & Gas Systems – Handles high-availability flame detector contacts and deluge initiation loops.
- Chemical Plant Burner Management Systems (BMS) – Routes critical boiler fuel trip contacts to safety voting processors.

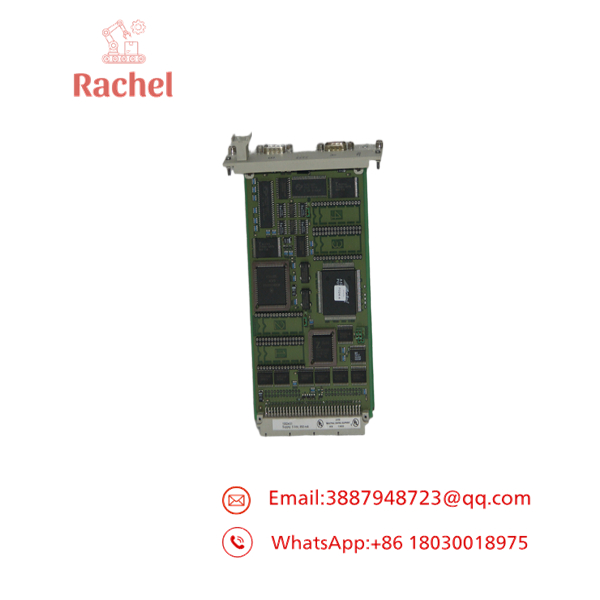

10024/I/I

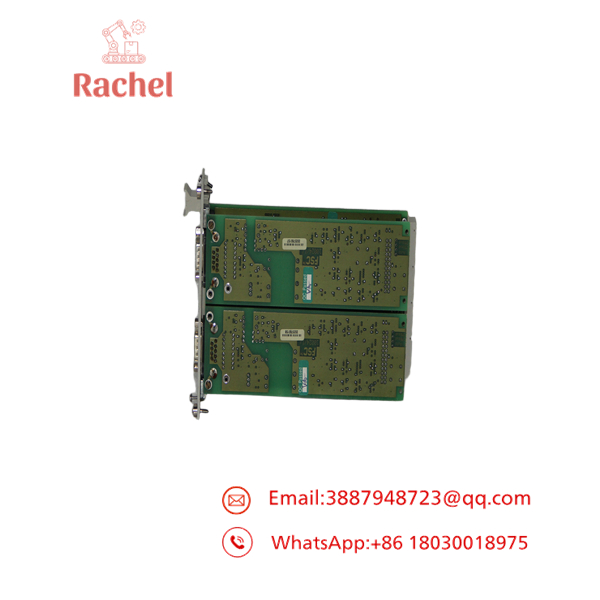

10024/I/I
Transparency SOP: Quality Assurance & Testing
- Visual & Board Component Inspection: We inspect board traces, backplane connector pins, optocouplers, and surface-mount components under magnification for physical wear or heat discoloration.
- Backplane Boot & Self-Test Verification: The module is installed in an FSC test rack to verify initial power-up self-tests and address configuration handshakes.
- 16-Channel Logic & Voltage Sweep: Each input channel is driven across its 0-30V DC range to verify exact logic threshold switching and front-panel status LED indications.
- Line Monitoring Diagnostic Check: Open and short circuits are simulated on each channel to verify that the card correctly reports line fault telemetry to the controller.
- ESD & Heavy Packaging: Cleared boards are cleaned, enclosed in static-shielding bags, and packaged in custom foam shipping containers.
The Veteran’s Tech Trap Guide
- ⚠️ Confirm system syntax and part variations. Honeywell FSC modules often use Roman numerals (10024/I/I), Arabic numbers (10024/1/1), or variant suffixes (such as 10024/I/2). Verify the exact part number and software revision in your Safety Builder system inventory before hot-swapping.
- ❗ Verify line-monitoring resistor requirements. If line monitoring (open/short detection) is enabled in system configuration, the field contacts must have end-of-line (EOL) resistor networks installed. Without these resistors, the 10024/I/I will treat open contacts as channel faults.
- ⚠️ Use proper module extraction handles. Always pull the top and bottom rack latches simultaneously when removing the card from the FSC rack cage to prevent twisting the gold-plated rear backplane pins.
Frequently Asked Questions
- Q: Can the 10024/I/I module be hot-swapped in a live safety rack?
A: Yes, in a redundant or properly bypassed FSC/Safety Manager chassis, cards can be hot-swapped. However, always follow plant bypass procedures before pulling safety inputs to prevent unexpected voting trips.
- Q: What is the difference between 10024/I/I and non-fail-safe 24V input modules?
A: The 10024/I/I includes dedicated internal diagnostic hardware, fault-tolerant circuitry, and line-monitoring capability specifically tested and certified for SIL2/SIL3 safety applications.
- Q: Are these genuine Honeywell OEM modules?
A: Yes, 100%. We only supply original OEM Honeywell FSC hardware, fully inspected and tested to original factory specifications.
