Honeywell 2MLI-CPUU Master Programmable Logic Controller CPU

Description

Product Introduction & Engineering Value

I’ve met plenty of plant managers who dread processor upgrades because they assume it requires migrating their entire distributed I/O network. The Honeywell 2MLI-CPUU bypasses that engineering headache entirely by acting as a high-density, modular control core designed to drop straight into MasterLogic 200X backplanes. This CPU brings deterministic, high-speed execution to localized automated systems, executing complex sequencing loops without breaking a sweat.

The real engineering value of this module is its absolute precision and protocol handling. By managing data processing tasks on a dedicated 32-bit hardware plane, it avoids the scan-time degradation common to lower-tier controllers when running full arrays of analog loops. It is a staple hardware asset for infrastructure setups that require dependable uptime and straightforward ladder-logic stability without overcomplicating the panel layout.

Technical Specifications

Because this hardware serves as the master logic engine for the chassis, its operational parameters are highly numerical and speed-focused:

Field Application & The “Trench” Experience

A critical failure occurred during a midnight production run at a high-volume paper pulp mill: the main processing unit controlling the chemical additive wash line locked up due to an internal chip fault. The module was managing tight proportional valve arrays via specialized backplane modules. Finding an exact hardware replacement that could instantly receive the original project memory structure without a firmware mismatch was non-negotiable.

Our team deployed a New Surplus 2MLI-CPUU directly to the site. The technician powered down the rack, swapped the battery into the new unit to preserve non-volatile tracking markers, seated the module into slot 0, and downloaded the backup project block over the USB link. The chemical line was fully functional and mixing back to spec in under twenty-five minutes.

Niche Application Environments:

• Cooling Tower Fan VFD Arrays: Manages multi-stage fan cycling logic based on ambient dewpoint calculation strings.
• High-Speed Conveyor Sorting Belts: Tracks optical gate inputs and drives high-speed pneumatic diverters with microsecond response times.
• Boiler Feedwater Control Skids: Regulates critical analog level loops to ensure consistent steam drum inputs.

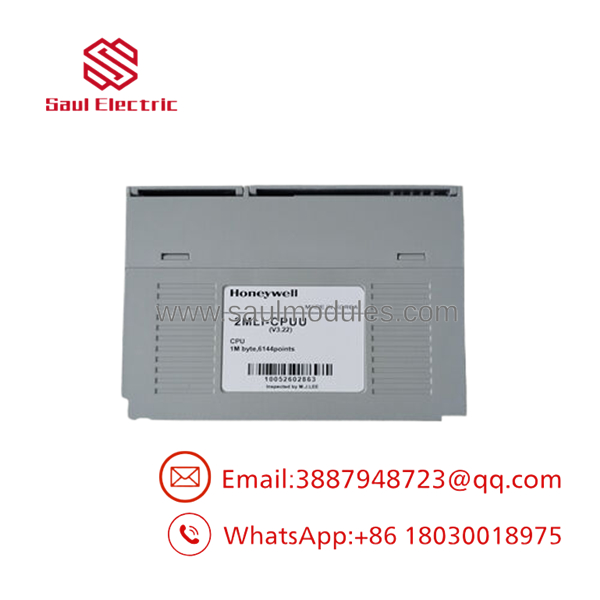

2MLI-CPUU

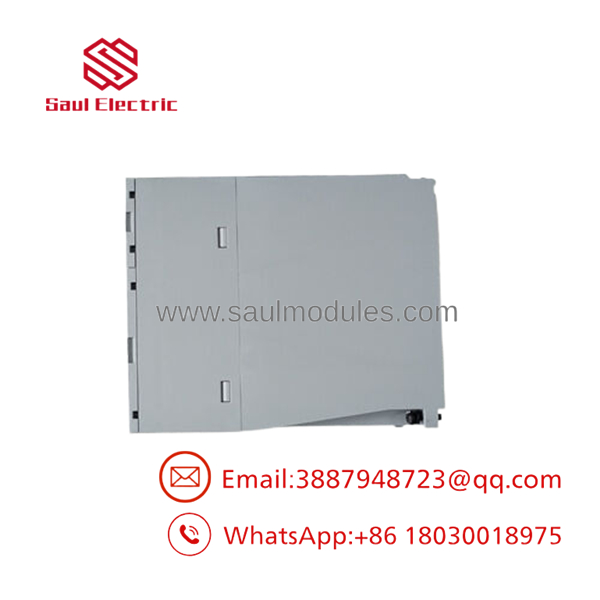

2MLI-CPUU

Transparency SOP: QA & Testing

Our inventory engineering facility applies a rigorous testing process to every 2MLI-CPUU module before it ships out to a job site:

1. Backplane Bus Diagnostic: The CPU is placed onto a live MasterLogic test chassis to ensure the address line contacts are executing commands perfectly across all expansion slots.
2. Instruction Cycle Audit: We push a demanding loop routine into the memory registers to verify the 32-bit processing core matches its rated microsecond speed thresholds.
3. Battery/RTC Health Check: The real-time clock and internal volatile RAM retention circuits are evaluated to ensure data does not clear out during emergency power outages.
4. Firmware Initialization: We scan and sync the operating system code to clear out any old field program artifacts, providing a clean slate for the user’s application load.

The Veteran’s Tech Trap Guide

⚠️ CRITICAL FIELD WARNINGS

• The Battery Swap Blindspot: The 2MLI-CPUU relies on an internal lithium battery to keep your volatile data registers and system clock alive when the panel loses main power. If you are swapping an existing module, do not throw away the original unit until you have extracted the project parameters over the programming port, or verify that the replacement battery plug is firmly seated into its terminal housing before cycling power.
• Firmware Mismatch Lockouts: When dropping this CPU into a rack containing older expansion cards or fieldbus gateways, check your programming utility version first. Loading a modern application compiled on an updated programming suite into a CPU running legacy base code can throw an immediate initialization error, causing the module to stay in “STOP” mode.
• Slot-Zero Seating Guard: Ensure the module alignment tabs engage fully with the lower groove of the backplane before pressing the unit home. Forcing the top latch into place when the bottom pins are misaligned can bend the gold-plated bus fingers, ruining the backplane rail or the CPU port.

Dynamic FAQ

• Q: Does the 2MLI-CPUU package include a fresh memory backup battery out of the box?
  • A: Yes. All of our New Surplus units arrive complete with a fresh industrial lithium backup battery tucked behind the front wiring cover flap, ready to preserve your internal data registers.
• Q: Can I program this specific module using standard modern Ethernet cables?
  • A: The base 2MLI-CPUU features a dedicated USB interface for direct laptop programming. If your automation topology requires remote programming over an active Ethernet network, you will need to add a dedicated communication module onto the base rack.
• Q: What is the exact procedure for clearing an “ERR” LED light fault on a replacement module?
  • A: A red “ERR” indicator typically points to a memory structure mismatch or an empty project configuration register. Connect your programming tool, clear the CPU internal memory blocks, and re-download your compiled hardware configuration file to clear the loop.
• Q: What type of replacement warranty protection comes with your refurbished Honeywell inventory?
  • A: We stand behind our work by backing every New Surplus and Refurbished Honeywell module with a comprehensive 12-month operational replacement warranty that begins the moment the item leaves our dock.
