Honeywell 51301874-100 TDC 3000 Low Level Analog Input Board

Description

Product Introduction & Engineering Value

When managing legacy infrastructure like a Honeywell TDC 3000 system, processing weak, unamplified sensor inputs requires significant hardware protection. The Honeywell 51301874-100 card is specifically engineered to handle Low Level Analog Inputs (LLAI), such as those from direct thermocouple lines, where electrical noise or field ground loops can easily corrupt subtle voltage readings.

Instead of routing these raw microvolt lines into a sensitive digital processor, the 51301874-100 uses a dedicated array of physical relays to safely switch and multiplex the active sensor lines. This mechanical and solid-state isolation barrier prevents field voltage surges from damaging upstream control hardware, allowing mature refinery and petrochemical installations to maintain rock-solid temperature loop stability.

Technical Specifications

Field Application & The “Trench” Experience

During an annual turnaround at a primary chemical distillation unit, a bank of critical column-top thermocouples suddenly began reporting intermittent, highly erratic temperature spikes on the operator console. A field inspection confirmed the sensors were sound, but a breakdown in an old field junction box had introduced high-voltage AC stray noise back into the rack, causing the multiplexer relays on the existing I/O board to fail.

Our facility quickly dispatched a certified 51301874-100 replacement card to the plant. The instrument technicians safely isolated the field termination assembly, unplugged the three heavy system ribbon cables, replaced the damaged board, and re-secured the bus connections. The temperature readings settled down immediately, filtering out the stray electrical noise and restoring stable, accurate tracking to the distillation loop.

Niche Application Environments:

• Multi-Zone Cracking Furnaces: Multiplexes massive arrays of direct-insert thermocouples to map temperature profiles across high-heat process walls.
• Boiler Tube Skin-Temperature Arrays: Gathers low-voltage thermal data points to track localized structural stress without requiring external transmitters.
• Cryogenic Liquid Storage Tanks: Routes delicate millivolt RTD loop measurements over long distances back to the central process manager.

Transparency SOP: QA & Testing

Every 51301874-100 board passing through our specialized legacy testing lab goes through a multi-stage validation sequence:

• Microvolt Isolation Audit: We apply isolated millivolt inputs to each individual channel, ensuring the active relay routes the signal perfectly without cross-talk or leakage into adjacent channels.
• Relay Contact Resistance Scan: The switching relays are cycled under test conditions to verify that their gold-plated contacts exhibit extremely low contact resistance, preserving weak millivolt sensor signals.
• Ribbon Bus Header Continuity: All multi-pin cable interfaces are tested for mechanical integrity and pin-to-trace continuity to prevent intermittent data loss.
• Conformal Coating Inspection: The board surface is checked under UV lighting to ensure its defensive environmental coating is intact, safeguarding the traces against moisture and atmospheric contaminants.

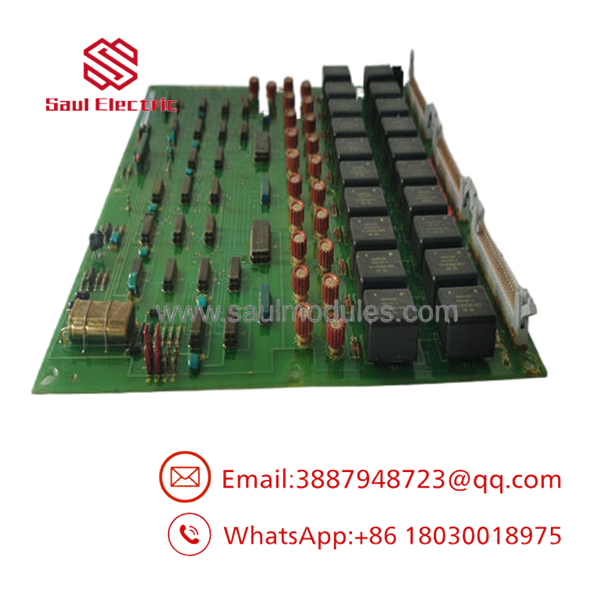

51301874-100

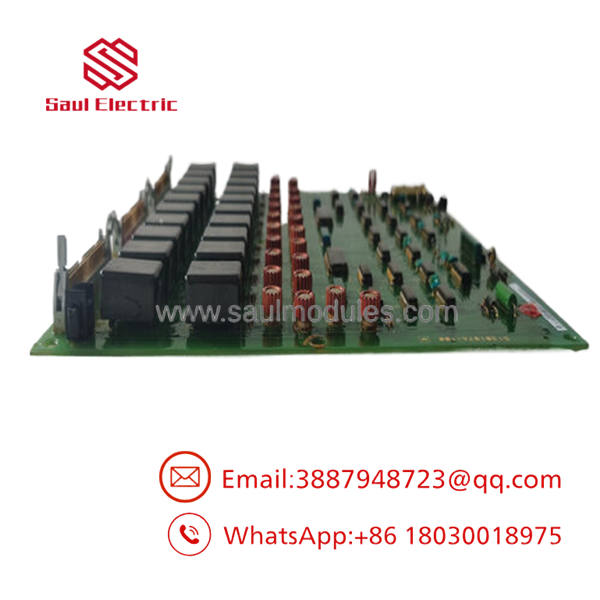

51301874-100

The Veteran’s Tech Trap Guide

⚠️ CRITICAL RETROFIT WARNINGS

• The Ribbon Cable Pin Misalignment: When reconnecting the three multi-pin ribbon cables to the edge of the 51301874-100 board, proceed with caution. Because these older connectors lack modern rigid shrouding, it is possible to accidentally shift the cable plug down by a single row of pins. Powering up the chassis with a misaligned connector will misroute your sensor signals and can short out the 24V supply lines on the board.
• Stray Field Volts Hazard: This card is designed to multiplex low-voltage signals (millivolts). If a field line inadvertently comes into contact with 120V or 240V AC utility power during maintenance, it will instantly weld the internal contacts of the small, sensitive signal relays shut, destroying the multiplexer circuit.
• Match the Exact Dash Suffix: Legacy TDC 3000 parts use specific dash extensions (like -100) to denote factory component updates or specific relay brands. Ensure your configuration records match this exact dash revision to prevent subtle timing or load differences within your I/O rack.

Dynamic FAQ

• Q: Does the 51301874-100 card handle standard 4-20mA current loop inputs?
  • A: No. This card is specifically optimized for low-level millivolt and thermocouple signals. High-level 4-20mA current signals require a High Level Analog Input (HLAI) module paired with appropriate shunt resistors.
• Q: Why does this board use mechanical relays rather than pure solid-state switching?
  • A: Mechanical signal relays provide excellent physical isolation and virtually zero voltage drop across the contacts. This is crucial for preserving the integrity of very weak microvolt thermocouple signals without introducing solid-state leakage or thermal drift.
• Q: Are the switching relays on this module field-replaceable if a channel gets damaged?
  • A: While the components are soldered directly to the conformal-coated multi-layer circuit board, they can be replaced by a technician skilled in industrial de-soldering and trace repair. However, we typically recommend swapping the entire board to ensure certified, system-wide reliability.
• Q: What type of warranty applies to legacy TDC 3000 components from your inventory?
  • A: To help ensure the longevity of mature control systems, we provide a full 12-month operational replacement warranty on all of our New Surplus and Refurbished TDC 3000 parts, starting from the date of shipment.
