Description
Product Introduction
The Honeywell 51304441-275 (Model MC-TDID52) is a high-density 32-channel Digital Input Field Termination Assembly (FTA) designed for Honeywell’s High-Performance Process Manager (HPM) and Advanced Process Manager (APM) subsystems. It provides physical field landing points for field dry contacts, proximity switches, and discrete status signals, marshaling them directly into the TDC 3000 or Experion control network.
Equipped with robust noise filtering, optical isolation, and surge protection circuits, the MC-TDID52 prevents field voltage spikes from damaging upstream I/O Processors (IOP). Replacing a failing or field-damaged FTA restores precise status sensing, clears bad-quality I/O points, and ensures continuous monitoring of critical process safety interlocks.
Key Technical Specifications
| Parameter | Value / Specification |
| Manufacturer | Honeywell Process Solutions |
| Part / Model Number | 51304441-275 / MC-TDID52 |
| Subsystem Compatibility | Honeywell HPM / APM / PM I/O Subsystem |
| Channel Count | 32 Discrete Input Channels |
| Input Signal Type | 24 VDC Dry Contact / Solid State Sensing |
| Field Wiring Termination | Heavy-Duty Screw Terminal Blocks |
| Interface Cable Mount | Dual Ribbon Cable / Multi-pin Header to IOP |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
Application Scenarios & The “Trench” Experience
Picture this: A critical pump station or ESD safety circuit in a chemical plant raises a persistent “Bad Input Channel” alarm on multiple valve limit switches. Diagnostic logs point to channel signal loss at the I/O rack. Field checks confirm the sensors are good, but field wiring line surges damaged the input isolation array on the field termination board.
In our process control hardware maintenance experience, keeping a bench-tested Honeywell MC-TDID52 / 51304441-275 FTA on hand enables a rapid field replacement. Swapping the terminal board and reconnecting the interface harness restores immediate, noise-free discrete signal transmission—instantly clearing I/O fault flags without disturbing controller configuration logic.
- Oil & Gas Processing – Contact status monitoring for emergency shutdown (ESD) valves and motor control centers.
- Chemical Manufacturing – High-density discrete limit switch and interlock monitoring across automated batch reactors.
- Power Plants – Safe signal marshaling for auxiliary breaker positions and thermal trip switches.

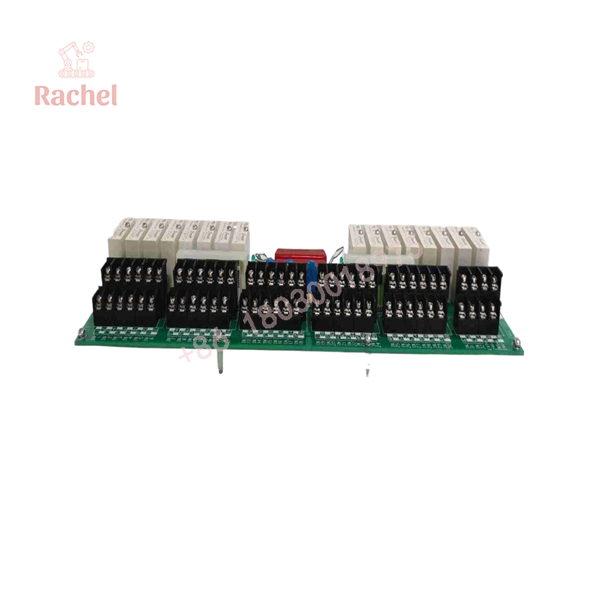

51304441-275 MC-TDID52

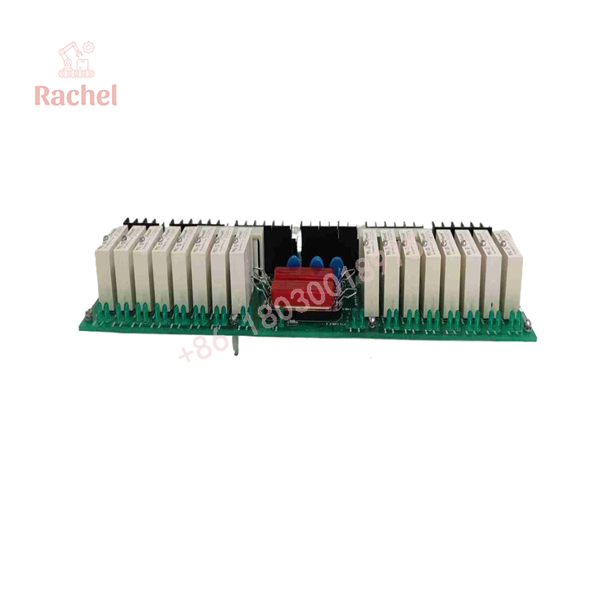

51304441-275 MC-TDID52
Transparency SOP: Quality Assurance & Testing
Every Honeywell 51304441-275 MC-TDID52 module undergoes a rigorous verification protocol prior to dispatch:
- Visual & Mechanical Inspection: Inspect terminal block screws, PCB traces, filter caps, and pin headers for corrosion, mechanical stress, or heat damage.
- Channel Continuity & Resistance Test: Perform point-to-point continuity checks across all 32 discrete input channels and power rails.
- Full 32-Point Signal Loop Test: Apply 24 VDC discrete inputs across each terminal block pair to verify clean signal transmission to the IOP interface header.
- Dielectric & Isolation Audit: Check isolation impedance between field channels and backplane logic grounds to ensure surge protection circuit integrity.
- ESD Protection & Packaging: Clean terminal strips with non-conductive solvent and double-seal the assembly in anti-static shielding bags with foam cushioning.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ De-Energize Field Sensing Power First! Always disconnect external 24 VDC wetting voltage sources prior to loosening terminal screws or unseating interface cables to avoid accidental short circuits.
- ❗ Verify Terminal Screw Torque: Loose screw terminations are the leading cause of intermittent channel dropouts. Ensure all wire connections are properly torqued after swapping the board.
- ⚠️ Check Interface Cable Latching: Ensure the multi-pin ribbon cables connecting the FTA to the Digital Input IOP are completely latched and locked into place. Partially seated cables cause multi-channel signal drops.
- ❗ Label Field Wires Before Disconnection: With 32 channels of field wiring on a single board, always mark field wire numbers clearly before removal to avoid cross-wiring channels during replacement. Trust me.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the Honeywell MC-TDID52 interchangeable with the 51304441-275 part number?
A: Yes, 51304441-275 is the specific board assembly part number for the Honeywell model MC-TDID52 32-point 24 VDC Digital Input FTA.
Q: Does this FTA support internal or external 24 VDC power routing?
A: The MC-TDID52 supports field contact power configuration via jumper selection or external power supply distribution depending on field sensing wiring.
Q: What warranty coverage comes with this surplus module?
A: We back all bench-tested surplus and refurbished Honeywell I/O assemblies with a full 12-month operational replacement warranty.
Q: How quickly can this module be shipped for emergency plant repairs?
A: We offer same-day dispatch and expedited express air freight (DHL/FedEx/UPS) to industrial plants worldwide.
