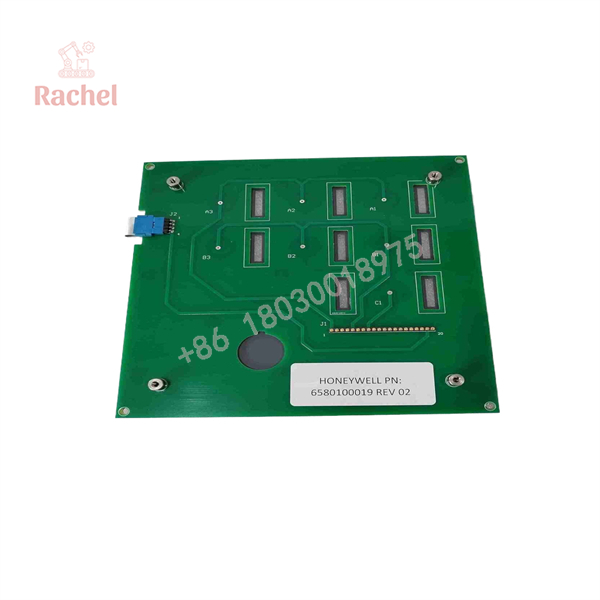

Honeywell 6580100019 TDC 3000 Control Module

Description

Product Introduction & Engineering Value

Legacy DCS environments often remain in production long after the original hardware supply chain has changed. The Honeywell 6580100019 exists as a maintenance-focused replacement component for facilities that continue operating TDC-based process control systems and require an exact hardware match.

For maintenance teams, the challenge is not simply finding a board with similar connectors. The correct replacement must match the TDC architecture, rack position, firmware expectations, and existing control database to avoid extended commissioning work.

Technical Specifications

Identification note: Honeywell legacy material numbers frequently require cross-reference against the actual hardware label because many TDC 3000 components share similar physical formats across different controller, communication, and I/O functions.

Field Application & The “Trench” Experience

A refinery maintenance department schedules a planned shutdown after a legacy TDC 3000 controller cabinet reports intermittent module diagnostics. The control strategy remains unchanged, but the engineering team cannot risk restarting the unit with an unreliable board.

During troubleshooting, technicians document the installed module number, rack location, cable assignments, and diagnostic information. The replacement stock is checked against the original Honeywell 6580100019 identification before installation.

After replacement, the team performs power-up diagnostics, confirms communication with the TDC network, verifies database recognition, and completes operational checks before returning the process unit to service.

The field lesson is simple: legacy DCS replacement work depends on documentation discipline. A visually similar module can still create hours of troubleshooting if the hardware identity is wrong.

Specific application scenarios

• Refinery process control cabinets — maintaining existing Honeywell TDC 3000 hardware during scheduled outages.
• Chemical batch processing systems — replacing aging controller-related hardware without a full DCS migration.
• Power generation auxiliary control systems — supporting long-life Honeywell process automation installations.

6580100019

6580100019

Transparency SOP: QA & Testing

A controlled inspection process for Honeywell 6580100019 inventory should include:

✓ Identification Review

• Confirm material number: 6580100019
• Check manufacturer markings.
• Record revision and assembly identifiers.

✓ Physical Condition Check

• Inspect PCB surface.
• Examine connectors and edge contacts.
• Check for corrosion, contamination, or repair traces.

✓ Electrical Evaluation

• Verify power circuits.
• Check for abnormal resistance values.
• Inspect components affected by long-term storage.

✓ Functional Verification

• Test communication behavior when compatible TDC equipment is available.
• Confirm diagnostic indicators.
• Verify module recognition.

✓ Final Documentation

• Capture label photographs.
• Record serial number.
• Package using ESD protection.

Honeywell continues to provide documentation and support resources for industrial automation and control products, although many legacy TDC components require account-based or archived documentation access.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Ordering by cabinet position only

A module installed in the same rack location is not automatically interchangeable. TDC systems contain multiple hardware families with similar mechanical formats.

PRO TIP: Always record the complete part number from the PCB label before removing the original unit.

⚠️ Trap #2 — Ignoring revision differences

Legacy Honeywell boards may have hardware revisions that affect compatibility with older controllers and software configurations.

Before replacement, document:

• Board revision
• Firmware label
• Existing system software version
• Rack configuration

⚠️ Trap #3 — Skipping controlled startup testing

Replacing a DCS module without checking diagnostics can introduce hidden communication or configuration issues.

A proper replacement sequence should include:

1. Installation verification
2. Power-up diagnostics
3. Network communication check
4. Process signal validation

Dynamic FAQ

Q1: What is Honeywell 6580100019?

Honeywell 6580100019 is a legacy Honeywell TDC control system hardware component used as a replacement module within industrial process automation installations.

Q2: Which Honeywell systems use 6580100019?

The part number is associated with Honeywell legacy TDC hardware. Exact system compatibility should be confirmed using the existing cabinet documentation and module identification.

Q3: Is 6580100019 a direct plug-in replacement?

Only after verification. Confirm rack compatibility, revision level, firmware requirements, and system configuration before installation.

Q4: What information should I provide when purchasing this module?

Provide:

• Full part number: 6580100019
• Existing module photos
• Board revision
• System model
• Application location

This reduces the risk of receiving an incompatible legacy spare.

Q5: How is New Surplus different from refurbished stock?

New Surplus normally refers to unused inventory stored from previous procurement cycles. Refurbished units have typically been inspected, repaired if required, and tested before resale.

Q6: What warranty is available for Honeywell 6580100019?

Warranty terms depend on supplier testing procedures and stock condition. Buyers should confirm whether the unit is New Surplus, refurbished, or tested used and request the applicable warranty period before purchase.
