Description
Product Introduction
The Honeywell 900ES1-0100 is an unmanaged 8-port industrial Ethernet switch designed specifically for integration with the Honeywell HC900 process controller platform. It connects CPU modules, Operator Interface (OI) touchpanels, PC-based HMI stations, and peer-to-peer controllers across a ruggedized local network.
Built for harsh cabinet environments, this switch eliminates the need for commercial-grade networking hardware that fails under high heat or electrical noise. It requires no software setup or IP address configuration—just mount it on the DIN rail, wire the 24V DC feed, and plug in your RJ45 drops.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | Honeywell |
| Part Number | 900ES1-0100 |
| Product Line | HC900 Controller System |
| Ports | 8 x RJ45 (10/100 Base-T auto-negotiating) |
| Network Type | Unmanaged Layer 2 Ethernet |
| Operating Voltage | 24V DC nominal (18-30V DC operational range) |
| Mounting | Standard 35mm DIN rail or direct rack integration |
| Status Indicators | Link/Activity LEDs per port, Power LED status |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Enclosure Rating | IP20 / NEMA 1 (Industrial Panel Mount) |
Application Scenarios & The “Trench” Experience
A thermal processing plant suffered intermittent communication dropouts between the main controller and three remote expansion racks. The culprit? A cheap commercial desktop switch installed inside the enclosure melted during a hot summer afternoon. Replacing it with an industrial-rated 900ES1-0100 restored reliable packet delivery instantly, handling heat spikes up to 60°C without shedding links.
- HC900 System Expansion – Links primary CPU racks to multiple remote I/O nodes across the plant floor.
- HMI / Operator Panel Networking – Connects station touchscreen interfaces directly to the controller backbone without message delays.
- Peer-to-Peer Control Loops – Pass high-speed Ethernet data between multiple HC900 units managing batch reactors or boilers.
- SCADA Gateway Integration – Feeds plant-wide network infrastructure from isolated control cabinet drops.
Transparency SOP: Quality Assurance & Testing
We do not just ship boxes; we test them on actual Honeywell HC900 test racks:
- Inbound Inspection: Inspect casing pins, terminal blocks, DIN clips, and factory serialization labels for authenticity and physical damage.
- Power Rail Stability Check: Power the module with 24V DC to verify internal power regulator stability and current draw.
- Live Handshake Testing: Connect all 8 RJ45 ports simultaneously to an active HC900 CPU and HMI setup to test link integrity.
- Traffic & Packet Drop Testing: Run high-volume Modbus TCP traffic across ports for 2 hours to confirm zero packet loss under load.
- ESD Static Packaging: Seal the module inside anti-static shielding with heavy foam cushioning for safe transport.

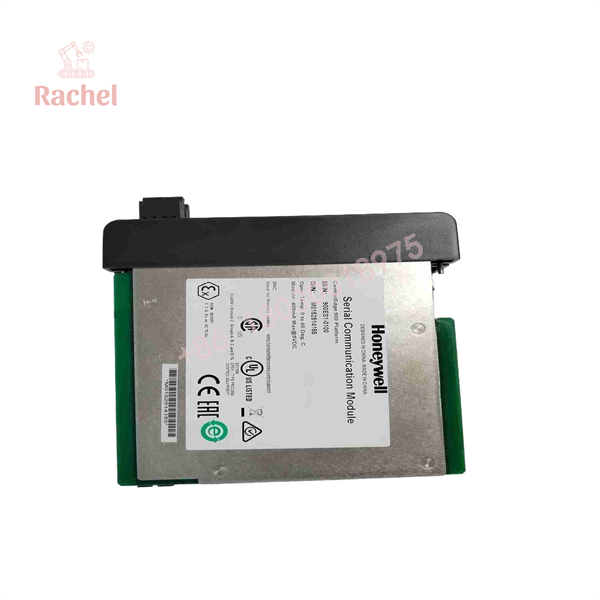

900ES1-0100
900ES1-0100
The Veteran’s Tech Trap Guide
- ⚠️ Do Not Mix Power Grounding: Ensure your 24V DC power supply ground matches the cabinet instrumentation ground. Ground loops through shielded Ethernet cables will cause transient communication drops that drive you crazy during troubleshooting.
- ❗ RJ45 Latch Lock Issue: Always use industrial CAT5e or CAT6 cables with molded strain reliefs. Cheap patch cables often snap their plastic retaining tabs inside the switch, resulting in loose connections from panel vibration.
- ⚠️ No Web Management Interface: Remember that the 900ES1-0100 is a completely unmanaged switch. You cannot log into it via a web browser to set VLANs, mirror ports, or check port speeds. If you need managed Layer 3 features, this is not the right card.
- ❗ Cable Run Limits: Keep copper RJ45 cable lengths strictly under 100 meters (328 feet) per segment. If your remote I/O rack is farther away, you must insert an Ethernet-to-Fiber media converter or intermediate repeater switch.
Frequently Asked Questions (FAQ)
Q: Is the Honeywell 900ES1-0100 a direct drop-in replacement for older HC900 network setups?
A: Yes. It is fully backward compatible with all generations of Honeywell HC900 controllers and expansion hardware using standard Ethernet communication protocols.
Q: Does this module require any software setup or configuration using Process Workbench?
A: No. It functions as an unmanaged layer 2 switch right out of the box. You simply connect power and Ethernet patch cables.
Q: Can I run this switch off a standard 24V DC cabinet power supply?
A: Yes, as long as your power supply delivers clean, regulated 24V DC within the 18 to 30V DC operating window.
Q: What is the warranty on this surplus unit?
A: We cover this module with a full 12-month replacement warranty from the date of delivery.
Q: Is this unit factory sealed or refurbished?
A: This specific listing is for New Surplus stock in its original factory packaging, fully verified by our engineering team before dispatch.
