Description
Product Introduction
The Honeywell CC-PAOH01 is an 8-channel High Level Analog Output (PAOH) module designed specifically for Honeywell Experion PKS Series C I/O architectures. It drives critical field actuators, control valves, and positioners by translating digital controller outputs into precise 4-20mA DC current loops.
Unlike lower-tier control cards, the CC-PAOH01 features isolated loop power distribution and rapid D/A conversion rates designed to maintain precise valve positioning under high plant vibration. In real-world deployment, swapping in a verified CC-PAOH01 card clears loop errors and stabilizes erratic valve actuation immediately without requiring controller database reconfiguration.
Key Technical Specifications
| Parameter | Specification / Value |
| Model Number | CC-PAOH01 |
| Honeywell Part Number | 51405039-175 |
| Output Channels | 8 Channels (Isolated) |
| Output Signal Range | 4-20 mA DC |
| D/A Conversion | 16-Bit Resolution |
| Load Impedance | 0 to 750 Ohms at 24 V DC loop supply |
| Operating Voltage | 24 V DC ± 10% (Internal Bus Powered) |
| Power Dissipation | 4.5 Watts (Typical) |
| Isolation Rating | 1500 V DC channel-to-logic bus isolation |
| Conformal Coating | Standard G1 / Optional G3 Harsh Environment |
| Mounting Format | Direct clip-on mount to Series C Output Termination Assembly (IOTA) |
Application Scenarios & The “Trench” Experience
It is 3:00 AM during a heavy rainstorm at a coastal refinery, and a primary crude distillation column feed valve starts hunting erratically because an analog output channel on the main rack has drifted out of calibration. The control room loses precise flow regulation, triggering high-pressure alarms. You trace the fault to a failing channel driver on the legacy output card. Slashing downtime to a minimum, you pull the faulty board and seat a pre-tested surplus CC-PAOH01 module, immediately restoring rock-solid positioning to the control valve.
- Oil & Gas Refining: Modulating fuel gas pressure control valves and crude charge flow control loops requiring high loop stability.
- Chemical Processing: Precise setpoint driving for reactant feed control valves in continuous exothermic reactors.
- Power Generation: Turbine steam valve governor actuation loops where fast response times and high resolution are non-negotiable.
- Water & Wastewater Treatment: High-accuracy chemical metering pump speed and stroke control loops.
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Honeywell Experion test rigs before they leave our bench.
- Inbound Physical Inspection: Every board is examined under magnification for clean PCB traces, undamaged backplane pins, and intact OEM seals.
- Series C IOTA Rig Verification: Modules are mounted onto an energized Series C test IOTA paired with a live Honeywell C300 Controller to check backplane communication handshakes.
- Precision Load Calibration: We connect a calibrated Fluke process meter to all 8 output channels, commanding step outputs (4mA, 12mA, 20mA) to verify current sink/source accuracy and zero-drift tolerance.
- Fault State Response Test: We simulate a controller disconnect to confirm that fallback and failsafe output states trigger exactly according to user configuration profiles.
- Anti-Static Packaging: Verified modules are sealed in conductive ESD shielding bags and encased in high-density foam to prevent shipping damage.

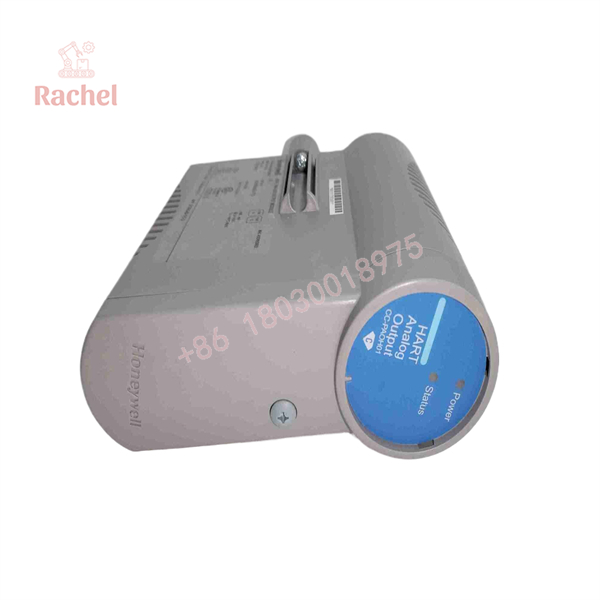

CC-PAOH01

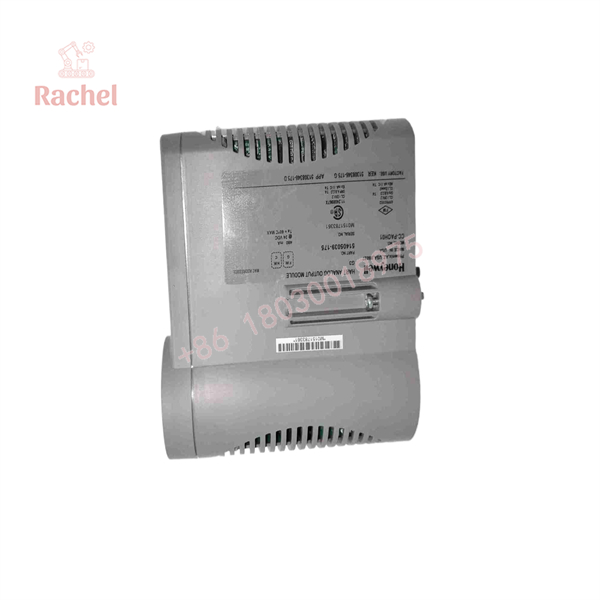

CC-PAOH01
The Veteran’s Tech Trap Guide
⚠️ Watch Out for Failsafe State Surges During Replacement
When pulling a live CC-PAOH01 module, associated control valves will default to their configured failsafe state (hold-last-value or go-to-zero). Ensure you coordinate with operators and place affected loops in manual or take appropriate mechanical safety precautions before unseating the card.
❗ Verify Loop Power and IOTA Jumper Settings
Never mix up sourcing and sinking loop configurations on the Series C IOTA terminal blocks. Incorrectly jumpered power rails will immediately trip channel protection fuses or damage internal loop driver transistors.
⚠️ Backplane Pin Alignment
Series C connector pins are robust, but forcing an angled card into the IOTA will bend the guide pins. Take your time aligning the side tracks, push straight back until the latch clicks, and secure both retaining screws evenly.
Frequently Asked Questions
Q: Is the CC-PAOH01 module hot-swappable in a live system?
A: Yes, Series C architecture supports Removal and Insertion Under Power (RIUP). However, because this card drives physical valves and actuators, always place the target control loops in manual mode or take necessary interlock precautions before pulling the module to prevent sudden field movement.
Q: Can this module drive HART-compatible final control elements?
A: The CC-PAOH01 provides high-level 4-20mA control signals. For full bi-directional HART communication pass-through on output loops, verify your exact system revision and IOTA wiring specifications, as specialized HART output configurations may be required.
Q: What is the maximum loop resistance supported by the outputs?
A: The module drives up to 750 Ohms of total loop resistance when powered by a standard 24 V DC industrial supply. Check your field cable length and instrument burden specifications to ensure you stay within budget.
Q: Are these modules brand new or refurbished?
A: We carry both Factory Sealed New Surplus and fully bench-tested Refurbished units. Every board is rigorously tested on our live test rigs and fully traceable.
Q: What warranty comes with this purchase?
A: Every CC-PAOH01 module is backed by our comprehensive 12-month operational warranty, giving your plant complete peace of mind.
