Honeywell CC-PFB401 Experion PKS Fieldbus Interface Module

Description

Product Introduction

The Honeywell CC-PFB401 is a specialized PROFIBUS DP master interface module engineered for the Experion PKS Series C automation platform. Operating directly alongside C300 process controllers, the CC-PFB401 bridges high-speed digital fieldbus networks with Honeywell’s Control Execution Environment (CEE), allowing seamless integration of variable speed drives, motor control centers (MCCs), smart actuators, and multi-variable instrumentation.

Built on the distinctive Series C inclined module frame, the CC-PFB401 eliminates internal cooling fans while delivering high noise immunity across demanding electrical environments. By handling protocol conversion and cyclic data exchange locally on the board, it offloads heavy communication traffic from the main C300 processor—making it an essential gateway card for modern industrial process plants utilizing fieldbus field topologies.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

When a fieldbus master gateway card fails in a continuous processing plant, you don’t just lose one sensor—you lose communication with dozens of smart drives and motor starters simultaneously. In our field experience, a paper mill experienced a sudden bus fault on its press section after a legacy PROFIBUS interface card locked up from electrical noise spikes. The whole line tripped. Swapping in a fresh, bench-tested Honeywell CC-PFB401 onto the Series C IOTA base restored the RS-485 master clock instantly and brought all 18 variable frequency drives back online before the batch dried in the rollers.

• Paper & Pulp Mills – Drive & Roll Speed Synchronization – Links multiple VFDs over PROFIBUS DP for real-time draw and tension control.
• Mining & Material Handling – Smart Motor Control Centers (MCC) – Ingests motor current, thermal data, and run status from intelligent overload relays.
• Oil & Gas Processing – Smart Valve Actuator Networks – Manages multi-turn motorized valves across tank farms and manifold skids.
• Water & Wastewater Facilities – Distributed Pump Control – Communicates with remote I/O drops and chemical dosing skids over a single shielded bus cable.

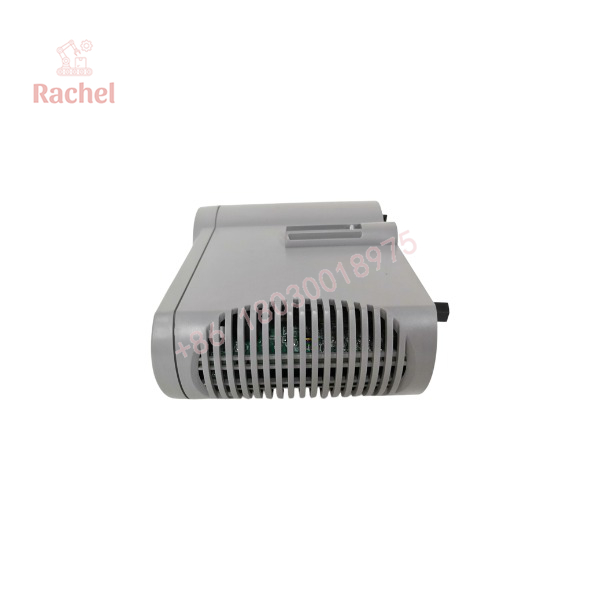

CC-PFB401

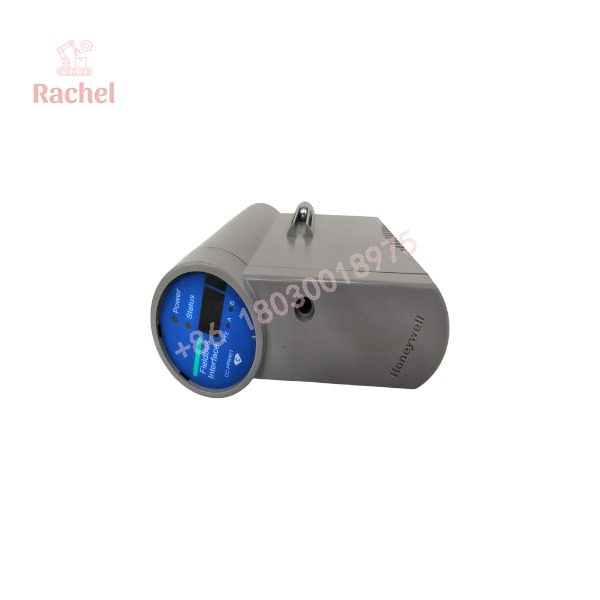

CC-PFB401

Transparency SOP: Quality Assurance & Testing

We don’t just ship complex communication cards blindly; every Honeywell CC-PFB401 module undergoes strict network verification on a live Experion test rig:

1. Inbound & Pin Inspection: Checking housing latches, backplane connector pins, and RS-485 port interface headers for physical wear or micro-fractures.
2. Backplane Handshake & Power-On: Seating the CC-PFB401 onto a live Series C IOTA to verify DC-DC power regulation, boot sequence LEDs, and system node recognition.
3. High-Speed Bus Communication Testing: Running cyclic data transfers over a multi-drop PROFIBUS DP test loop populated with drives and remote I/O blocks at speeds up to 12 Mbps.
4. Redundancy Failover Verification: Testing primary-to-secondary switchover times on a redundant IOTA setup to confirm hitless bus master transfers without dropping field slaves.
5. Anti-Static & Protective Packaging: Cleaning connector pins with isopropyl contact cleaner and sealing the module in heavy ESD shielding bags with fresh desiccant.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ Respect the 12 Mbps Line Termination! High-speed PROFIBUS DP networks operating at several megabaud are extremely sensitive to impedance mismatches. Always verify that active bus terminators are powered and switched ON at both physical ends of the segment, or signal reflections will destroy your CC-PFB401 packet transmission.

❗ Check Shield Grounding at the IOTA! Cable shield grounding must be continuous and bonded properly at the IOTA terminal bar. A loose shield wire on a PROFIBUS cable acts like an antenna, feeding high-frequency VFD noise directly into the CC-PFB401 transceiver.

⚠️ Match Software Device Descriptions (GSD Files): Before replacing or adding field devices on a CC-PFB401 network, ensure the exact GSD file revision is imported into your Experion Control Builder software. A mismatch between the hardware GSD definition and the physical slave device will block cyclic communication.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the Honeywell CC-PFB401 hot-swappable (RIUP supported)?

A: Yes. You can insert or remove the CC-PFB401 module under power (RIUP). In a redundant pair setup, pulling the active primary module triggers an immediate, hitless failover to the backup CC-PFB401 without dropping PROFIBUS DP slave communications.

Q: What is the maximum number of PROFIBUS devices a single CC-PFB401 can support?

A: The module supports up to 126 PROFIBUS DP slave addresses on a network, though physical segment limits (32 devices per segment without repeaters) and loop scan time requirements dictate optimal network sizing.

Q: Does replacing a CC-PFB401 require re-flashing the module firmware?

A: The C300 controller checks module firmware upon boot. If the replacement CC-PFB401 runs an older firmware version than what Experion expects, Control Builder can flash the correct firmware image over the network.

Q: What is the difference between CC-PFB401 and standard 4-20mA I/O cards?

A: Standard I/O cards handle discrete or analog voltage/current signals. The CC-PFB401 is a high-speed digital communication gateway that exchanges complex multi-variable data blocks over a single twisted-pair network cable.

Q: What warranty is provided on this surplus Honeywell PROFIBUS module?

A: All CC-PFB401 interface cards supplied carry a full 12-month functional replacement warranty. If the module experiences any hardware or communication failure under normal operating conditions within one year, we replace it or refund your purchase.
