Description
Product Introduction
The Honeywell CC-TAIX11 is a high-reliability, redundant Input/Output Termination Assembly (IOTA) built for Honeywell Experion PKS Series C control systems. It serves as the physical marshalling base and wiring interface for 16-channel analog input modules (such as the CC-PAIX01), supporting fault-tolerant redundant module configurations.
Engineered to handle critical process variables, the CC-TAIX11 provides secure terminal blocks and dedicated circuitry that allows dual module carrier mounting for uninterrupted signal acquisition. In plant operations, replacing a damaged or heat-compromised termination base with a verified CC-TAIX11 ensures stable loop continuity and preserves high-availability controller redundancy without requiring wholesale cabinet rewiring.
Key Technical Specifications
| Parameter | Specification / Value |
| Model Number | CC-TAIX11 |
| Honeywell Part Number | 51308365-175 |
| Assembly Type | Redundant Analog Input Termination Assembly (IOTA) |
| Compatible Modules | Series C High-Level Analog Input / Multiplexed Modules (e.g., CC-PAIX01) |
| Channel Capacity | 16 Channels (Configurable Single-Ended / Differential) |
| Input Signal Support | 4-20 mA, 0-5 VDC, 1-5 VDC |
| Redundancy Support | Dual module slot architecture for high-availability setups |
| Mounting Hardware | Standard DIN rail mounting or direct panel mount |
| Conformal Coating | Standard G1 / Optional G3 Harsh Environment protection |
| Enclosure Rating | Open-type open-frame backplane assembly (IP20 terminal protection) |
Application Scenarios & The “Trench” Experience
It is 3:15 AM at a Gulf Coast refining complex, and a redundant analog input rack servicing a primary fractionation unit throws a continuous cross-channel sync error. Plant operations are running blind on secondary backup because physical corrosion has bridged a redundant bus trace on the underlying termination base. Swapping out the compromised base with a pre-tested surplus CC-TAIX11 restores clean dual-module handshakes and signal path integrity, bringing the unit back to full fault-tolerant operation before daylight.
- Oil & Gas Refining: Critical multi-loop analog data acquisition in redundant architectures where single-point hardware failure cannot be tolerated.
- Chemical Processing: Continuous reaction monitoring loops requiring fault-tolerant signal conversion and high common-mode noise rejection.
- Power Generation: High-availability turbine and boiler auxiliary instrumentation where control redundancy is mandated by safety standards.
- Pulp & Paper Processing: Centralized marshalling for large-scale analog transmitter arrays in high-humidity continuous mills.

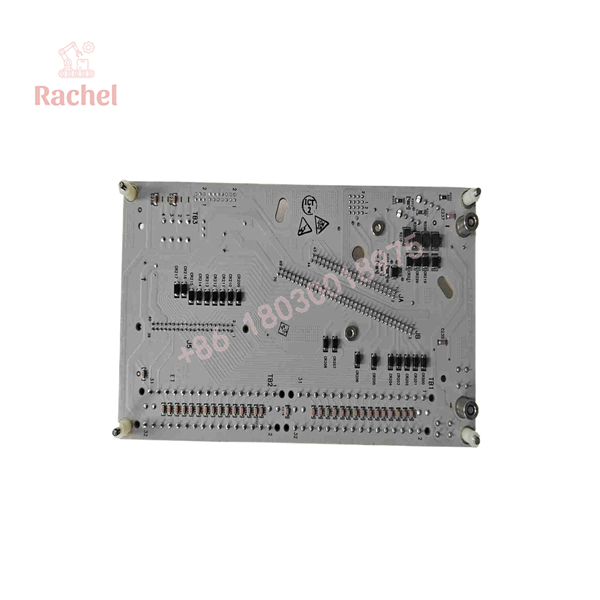

CC-TAIX11
CC-TAIX11
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we inspect and test every termination assembly to ensure zero physical or electrical defects.
- Inbound Visual Inspection: We examine terminal blocks under magnification for stripped screw threads, corrosion, hairline PCB cracks, and intact OEM holograms.
- Backplane Pin Integrity Check: Dual-slot connector pins and guide headers are measured and aligned to verify zero bending or oxidation prior to dispatch.
- Redundancy Bus & Trace Testing: Automated probe testing verifies trace resistance, power distribution rails, and dual-slot communication handshakes across all channel paths.
- Terminal Clamp Torque Verification: Screw clamp assemblies are stress-tested to ensure reliable wire retention under high-vibration industrial conditions.
- Anti-Static & Protective Packaging: Inspected assemblies are wrapped in heavy-duty ESD shielding and high-density foam to prevent shipping damage.
The Veteran’s Tech Trap Guide
⚠️ Watch Out for Redundant Module Slot Alignment
When seating electronic modules onto the dual-slot CC-TAIX11 base, ensure both primary and secondary cards match firmware revisions precisely. Mismatched cards on a redundant IOTA will reject synchronization and trigger configuration faults in Experion.
❗ Verify Terminal Screw Torque Limits
Do not overtighten field wiring screws on the CC-TAIX11 terminal blocks. Excessive torque will crack the molded plastic housing or strip the internal brass threads, forcing an unplanned base replacement during a turnaround.
⚠️ Isolate Power Before Replacing an IOTA
Never attempt to unseat or replace a termination assembly while live loop power or 24VDC system buses are energized. Always execute strict lockout/tagout (LOTO) protocols to protect against short circuits.
Frequently Asked Questions
Q: Is the CC-TAIX11 a standalone module or a base assembly?
A: The CC-TAIX11 is an Input/Output Termination Assembly (IOTA)—the physical base and terminal block unit that mounts to the cabinet panel to support redundant active analog cards.
Q: Can I use the CC-TAIX11 with non-redundant single modules?
A: Yes, but this base is specifically engineered with dual slots to support redundant configurations. Ensure your hardware planning matches your system engineering drawings.
Q: Are these termination assemblies brand new or surplus?
A: We stock both Factory Sealed New Surplus and fully inspected Refurbished units, ensuring your facility gets reliable hardware immediately.
Q: Why buy surplus instead of ordering direct from the OEM?
A: Long factory lead times for legacy Series C hardware can leave your maintenance team waiting months. Our ready-to-ship surplus inventory gets critical parts on-site immediately.
Q: What warranty comes with this purchase?
A: Every CC-TAIX11 assembly is backed by our comprehensive 12-month operational warranty, protecting your plant investment against unexpected hardware failures.
