Honeywell CC-TCNT01 C300 Controller IOTA

Description

Product Introduction & Engineering Value

The CC-TCNT01 is the IOTA/base termination assembly for the Honeywell C300 controller, not the C300 processor itself. The controller electronics plug into this assembly, while the IOTA handles the external cable and power connections required by the control architecture. Honeywell’s own documentation distinguishes the C300 controller from its associated IOTA.

That distinction is critical during procurement. The C300 controller is commonly identified as CC-PCNT01, whereas CC-TCNT01 is the companion IOTA. A replacement therefore has to match the installed controller architecture and IOTA generation. Secondary technical references specifically warn that Series C and later Series 8 IOTAs can have physical and connector differences.

Technical Specifications

The 0.311 A @ 24 VDC supply figure is published by industrial reference sources for the CC-TCNT01.

Important specification note: Publicly available sources contain conflicting descriptions of the CC-TCNT01’s physical generation and environmental specifications. For that reason, values such as temperature range, dimensions, and connector arrangement should be verified against the exact revision installed in the customer’s C300 cabinet rather than copied from an unrelated Series 8 assembly.

Field Application & the “Trench” Experience

A plant had a C300 controller reporting intermittent communication and power-related diagnostics. The controller itself had already been swapped, but the fault returned.

The maintenance team eventually shifted attention to the termination assembly. The FTE connections were inspected first, followed by the I/O Link cables, controller power connections, and redundancy wiring. A loose or degraded termination connection can create symptoms that look like a processor or network problem because several controller interfaces converge at the IOTA.

After the CC-TCNT01 connection points were inspected and the termination assembly was replaced, the controller was recommissioned and the FTE/I/O Link connections were validated individually.

The lesson: don’t replace a C300 processor simply because the controller reports communication faults. The IOTA is part of the electrical and physical interface chain.

Specific applications include:

• Experion PKS C300 process controllers
• Redundant C300 controller installations
• FTE-connected process-control cabinets
• C300 systems using dual I/O Link interfaces
• Legacy refinery, chemical, power, and manufacturing control systems

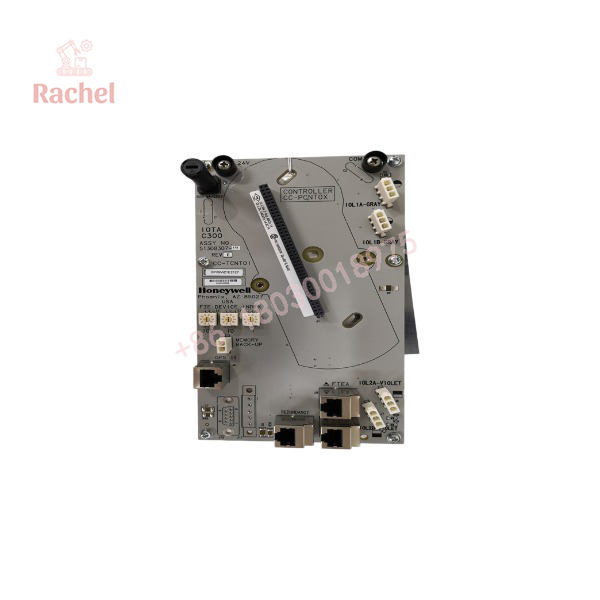

CC-TCNT01

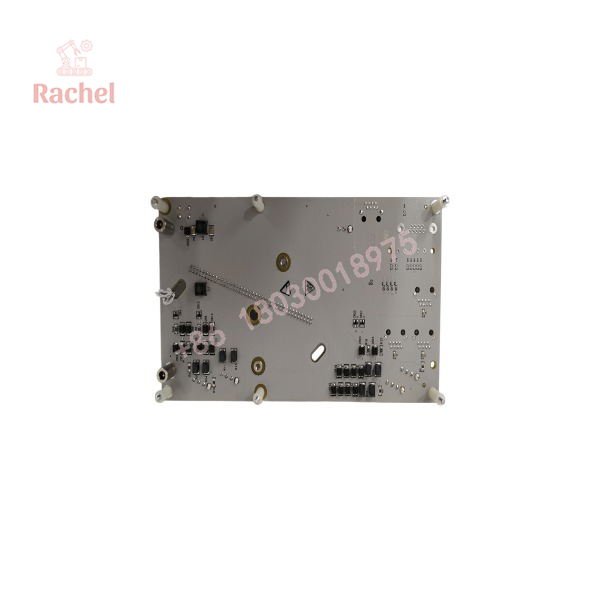

CC-TCNT01

Transparency SOP: QA & Testing

For New Surplus or Refurbished CC-TCNT01 inventory, QA should concentrate on the termination and interface functions.

1. Part-number verification — Confirm CC-TCNT01 and, where present, the 51308307-175 identification.
2. Revision inspection — Record the hardware revision because C300 IOTA generations can differ physically.
3. Connector inspection — Check FTE, I/O Link, redundancy, battery, time-source, and controller-interface connectors.
4. Terminal inspection — Look for loose contacts, oxidation, damaged pins, contamination, or heat discoloration.
5. Power-path verification — Check the 24 VDC distribution path for continuity and abnormal resistance.
6. Mechanical inspection — Verify mounting points and controller mating surfaces.
7. Controller test — Install the IOTA with a compatible C300 controller and verify normal controller startup.
8. Communication test — Where the appropriate test environment is available, verify FTE and I/O Link operation.
9. Final QA record — Document model, revision, serial information if available, condition, and test results.

A termination assembly should not be considered fully tested simply because it has no visible PCB damage.

The Veteran’s Tech Trap Guide

⚠️ CC-TCNT01 is not the C300 processor.

The C300 controller is identified as CC-PCNT01; CC-TCNT01 is the associated I/O termination assembly. Honeywell’s own product discussion confirms this distinction.

⚠️ Check the IOTA generation before ordering.

Secondary technical references identify physical and connector differences between Series C and Series 8 C300 IOTAs. Do not assume that a CC-TCNT01 listing is automatically compatible with every generation of C300 installation.

PRO TIP: Photograph the complete existing IOTA label, connector layout, and controller mounting arrangement before ordering. Include the Experion release and C300 controller part number in the RFQ.

⚠️ Do not treat FTE problems as automatically being network-switch problems.

The C300 IOTA is part of the controller’s physical interface chain. Inspect the FTE connectors, cabling, controller seating, and termination assembly before replacing higher-level network equipment.

⚠️ Redundant C300 systems require more than a controller swap.

The IOTA provides connections associated with the redundancy architecture, so both controllers, the associated cabling, and the termination hardware need to be considered when troubleshooting a redundant installation.

Dynamic FAQ

Q1. What is the Honeywell CC-TCNT01?

The CC-TCNT01 is the C300 Controller Input/Output Termination Assembly (IOTA) used with Honeywell’s Experion PKS C300 controller architecture.

Q2. What is the associated C300 controller?

The commonly associated controller is CC-PCNT01. The CC-PCNT01 contains the controller electronics, while CC-TCNT01 provides the termination and interface functions.

Q3. What connections does CC-TCNT01 provide?

The IOTA provides termination/interface points associated with FTE, I/O Link, controller redundancy, battery, and time-source connections, along with 24 VDC power distribution to the controller.

Q4. What is the CC-TCNT01 power requirement?

Published industrial references specify a 24 VDC supply with a 0.311 A rating for the CC-TCNT01. Verify the exact installed revision and system power design before applying this figure to a field installation.

Q5. Is CC-TCNT01 compatible with every C300 generation?

Not automatically. The C300 controller has been used with different IOTA generations, and secondary documentation identifies physical and connector differences between Series C and Series 8 implementations. Verify the revision, cabinet architecture, and Experion version before substitution.

Q6. How should New Surplus CC-TCNT01 inventory be authenticated?

Verify CC-, the applicable part number such as 51308307-175, hardware revision, connector arrangement, and physical condition. For higher-value procurement, request photographs of the actual unit and evidence of controller/interface testing.

Warranty: Warranty coverage depends on supplier and stock condition. For refurbished CC-TCNT01 units, request written functional warranty coverage and confirmation that the FTE, I/O Link, controller interface, and 24 VDC distribution paths were inspected or tested.
