Honeywell FC-TDIO51 | 16-Channel Safety FTA with Knife Disconnect

Description

Core Product Summary (Brand / Model / Key Attributes)

Honeywell FC-TDIO51 is a 16-channel Safety Manager SC field termination assembly (FTA) for 24 VDC safety digital I/O wiring. It provides the field-side interface between a Safety Manager SC I/O module and field devices, with knife-disconnect terminals and end-of-line (EOL) monitoring provisions.

The FC-TDIO51 is documented as a companion FTA for the Honeywell FC-PDIO01 32-channel Safety Digital I/O module. In the documented configuration, two FC-TDIO51 units provide the 16 wired field channels each required to terminate one FC-PDIO01 module. It is part of the Safety Manager SC Universal Marshaling architecture and uses FC-SIC System Interconnect Cables for connection to the associated IOTA.

Key Technical Specifications

Detailed Product Overview

The Honeywell FC-TDIO51 is a field termination assembly used in Safety Manager SC installations to connect 24 VDC safety digital I/O field wiring to the associated Safety Manager SC I/O module. It provides 16 wired field channels, knife-disconnect terminals, and end-of-line monitoring provisions in one termination assembly.

In the documented Safety Manager SC configuration, the FC-TDIO51 is used with the FC-PDIO01 Safety Digital I/O module. Because the FC-PDIO01 provides 32 configurable I/O channels, two FC-TDIO51 assemblies are used to provide the required 16 wired field channels each. The FTA is connected to the IOTA through FC-SIC System Interconnect Cables, forming the interface between the Safety Manager SC controller architecture and field devices.

The knife-disconnect provision allows an individual field circuit to be isolated at the termination assembly for maintenance or troubleshooting. The end-of-line monitoring provision supports supervised field-circuit designs, where the monitoring arrangement can help identify wiring or circuit-integrity conditions according to the configured safety application.

The FC-TDIO51 belongs to Honeywell’s Safety Manager SC Universal Marshaling architecture. In this architecture, field wiring is terminated at the FTA, while the Safety Manager SC I/O module and IOTA provide the controller-side interface. Correct FTA selection, cable use, and wiring arrangement are therefore integral to the safety function and must match the configured FC-PDIO01 channel functions.

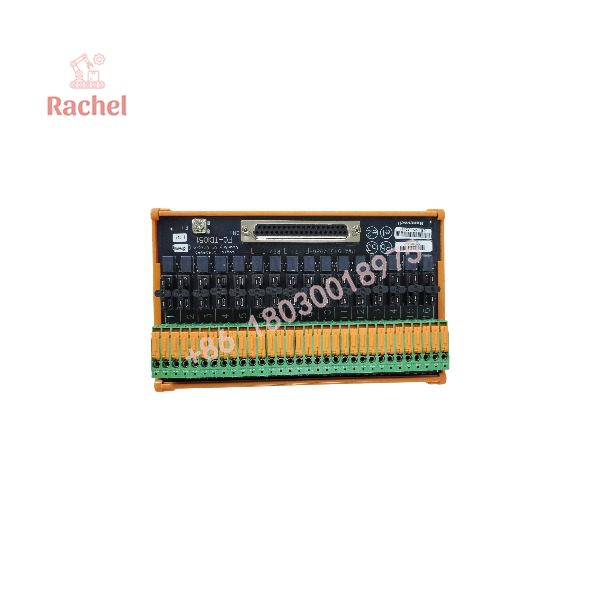

FC-TDIO51

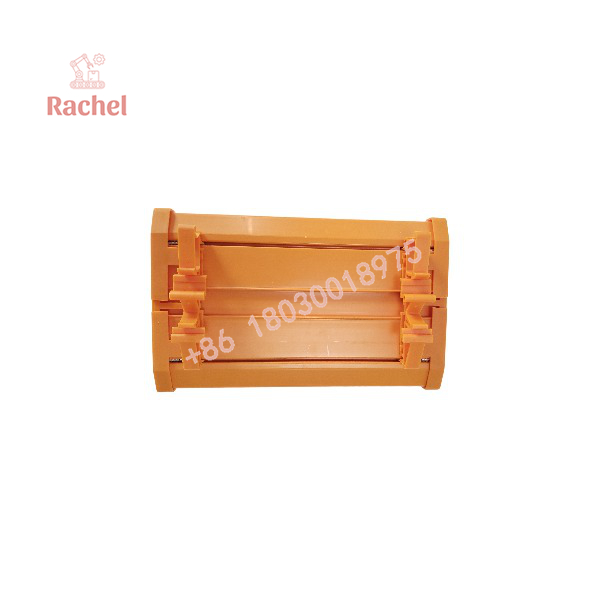

FC-TDIO51

Engineering Selection Highlights

• The FC-TDIO51 provides 16 wired 24 VDC field channels, so the number of field circuits determines how many assemblies are required.
• It is documented as a companion FTA for the FC-PDIO01; two FC-TDIO51 units are used with one 32-channel FC-PDIO01 module.
• Its knife-disconnect terminals allow individual field circuits to be isolated during maintenance without disturbing the complete termination assembly.
• Its end-of-line monitoring provision supports supervised field-circuit designs and must match the Safety Builder channel configuration.
• The FTA connects to the Safety Manager SC IOTA through FC-SIC System Interconnect Cables, so cable type and length must follow the documented system architecture.
• It is part of the Safety Manager SC Universal Marshaling Solution, making it relevant to both central and distributed Safety Manager SC installations.
• The 24 VDC field-voltage designation must be matched to the FC-PDIO01 channel configuration and field-power distribution design.

Dimensions, Mounting & Connection Notes

System Compatibility & Integration Requirements

FAQ

What is the Honeywell FC-TDIO51?
It is a Honeywell 16-channel Safety Manager SC field termination assembly for 24 VDC safety digital I/O field wiring.

Which I/O module does the FC-TDIO51 support?
It is documented as a field termination assembly for the Honeywell FC-PDIO01 32-channel Safety Digital I/O module.

How many FC-TDIO51 units are required for one FC-PDIO01?
Two FC-TDIO51 assemblies are used with one FC-PDIO01 module, providing 16 wired field channels each.

What disconnect function does it provide?
It provides knife-disconnect terminals for isolating individual field circuits.

What monitoring function does it provide?
It provides end-of-line monitoring provisions for supervised field-circuit designs.

How does it connect to the Safety Manager SC system?
It connects to the associated Safety Manager SC IOTA through FC-SIC System Interconnect Cables.

What field voltage does it use?
The FC-TDIO51 is a 24 VDC field termination assembly.

Verification & Troubleshooting Notes

• Confirm that the FC-TDIO51 is used with the FC-PDIO01 configuration and that the number of FTAs matches the number of field channels required.
• Verify that each FC-SIC System Interconnect Cable is correctly connected between the FTA and the associated Safety Manager SC IOTA.
• For a channel that is not reporting correctly, check the knife-disconnect position first; an opened disconnect will isolate that field circuit.
• Confirm that end-of-line components and wiring match the configured Safety Builder channel function and monitoring arrangement.
• Check the 24 VDC field-power distribution, fuse or protective-device status, and field-wiring continuity when multiple channels show related symptoms.
• Use Safety Manager SC diagnostics and Safety Builder channel status to distinguish an FTA or field-wiring issue from an I/O-module or controller-side issue.
• Do not bypass knife-disconnect protection, end-of-line monitoring, or safety-related field wiring during commissioning or troubleshooting.
