ICS Triplex T8403 Trusted TMR 24VDC Digital Input Module

Description

Product Introduction

The ICS Triplex T8403 Trusted Digital Input Module is a high-density, fault-tolerant 24 VDC interface card designed for mission-critical Safety Instrumented Systems (SIS). Built on a true Triple Modular Redundant (TMR) architecture, the module accepts signals from up to 40 field contact switches, pressure transmitters, or safety interlocks. Each field input feeds three completely isolated processing slices (FIUs), where onboard delta-sigma conversion and hardware voting eliminate single-point failures before passing data to the main processor.

Beyond simple ON/OFF detection, the T8403 integrates configurable line monitoring on a per-channel basis to catch open-circuit and short-circuit field wiring faults instantly. Its microsecond-level Sequence of Events (SOE) timestamping capabilities give instrumentation engineers precise root-cause visibility during unexpected plant trips. This combination of granular diagnostics and extreme isolation makes the T8403 a core building block for high-availability process safety loops.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A offshore gas platform running a legacy Trusted rack reports a “Faulted” diagnostic LED on an aging 24V digital input module. channel 12—which monitors the emergency shutdown valve (ESD) closed limit switch—shows a line fault, triggering an unvoted alarm in the control room. If the safety system drops to a 2-0 degraded mode, a second glitch will automatically trip the main compressor, flaring gas and costing over $400,000 in lost daily throughput. You don’t have weeks for a full cabinet upgrade; you need a pre-tested T8403 module swapped into the rack live to restore 3-2-0 voting fault tolerance immediately.

• Emergency Shutdown (ESD) Systems: Monitors manual push buttons, high-pressure limit switches, and trip valves across process vessels.
• Fire & Gas (F&G) Interlocks: Serves as the primary digital interface for flame detectors, heat sensors, and gas suppression manual stations.
• Burner Management Systems (BMS): Reads flame scanner dry contacts, fuel valve limit switches, and purge air pressure switches.
• Turbomachinery Safety: Handles fast-acting overspeed trip feedback and lube oil pressure switch contacts.

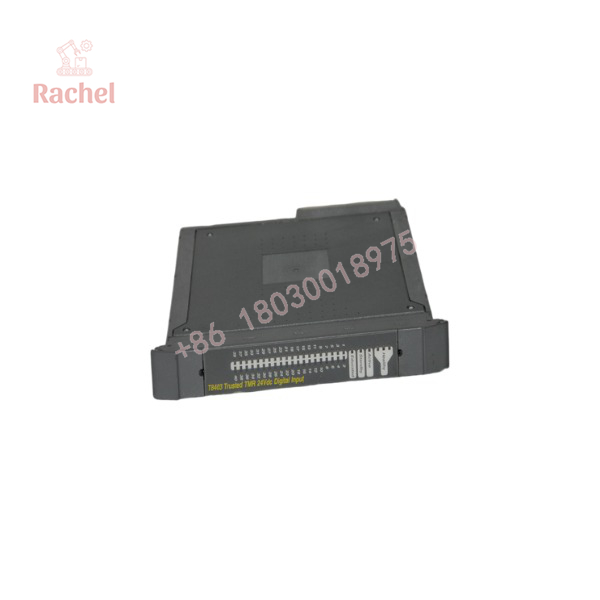

T8403

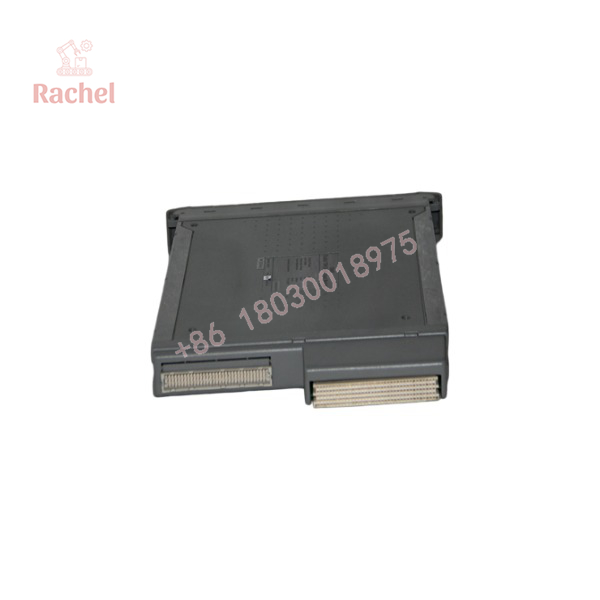

T8403

Transparency SOP: Quality Assurance & Testing

1. Inbound Visual & Physical Audit: Inspect the multi-pin backplane connector for microscopic pin drift, check the front panel ejector mechanisms, and verify factory serial label integrity.
2. Bench Top Power & Initialization: Mount card into an active T8300 Expander Chassis backplane; verify internal HIU/FIU logic rails and observe front-panel health LEDs (Active/Standby/Educated).
3. Triplicated Input Injection Test: Connect a calibrated multi-channel test rig to feed 24 VDC step-inputs across all 40 channels simultaneously; verify that all three processing slices read within 0.5 VDC tolerance.
4. Line Monitoring & Fault Simulation: Inject open-circuit and short-circuit faults on selected channels to confirm that line-monitoring diagnostic flags populate accurately in Workbench software.
5. SOE Timestamping Verification: Trigger rapid state changes and inspect the sequence-of-events log to verify 1 ms event resolution.
6. ESD Packaging & Dispatch: Seal in static-shielding bags with desiccant and ship in custom heavy-duty shock foam enclosures.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Do Not Skip Field Resistor Check: If line monitoring is enabled for a channel on the T8403, you must have end-of-line (EOL) resistor networks installed at the field device. Swapping in a card with line monitoring turned ON when field wiring lacks resistors will immediately register false short-circuit faults.
• ❗ Verify SmartSlot Companion Configuration: Before pulling a faulted card for an online hot swap, double-check your rack configuration in Toolset. Ensure the target slot is paired correctly as a SmartSlot or dedicated Companion Slot, or you risk losing input data during the transfer.
• ⚠️ Watch the Module Alignment Pin: The rear FTU connectors engage dense pin arrays. Align the card carefully with the chassis top and bottom guides before pushing the ejector levers. Forcing the module in cocked will break backplane pins.
• ❗ Match Hardware Suffix Revisions: Pay attention to suffix variants like T8403 vs T8403CX. While many revision steps are cross-compatible, conformal coating thickness and underlying component revisions vary—always confirm compatibility with severe environment ratings before installation in harsh off-shore panels.

Frequently Asked Questions (FAQ)

Q: Can I hot-swap the T8403 module while the plant is live?

A: Yes. The T8403 supports live online replacement when inserted into a slot configured for SmartSlot or adjacent Companion Slot functionality. The system will automatically “educate” the new module and sync parameters without tripping safety loops.

Q: How does the T8403 handle a single channel component failure?

A: Because each of the 40 channels contains three distinct measurement circuits (FIUs), a component failure on one circuit is automatically out-voted by the other two. The module raises a maintenance alarm while maintaining continuous, uninterrupted safety monitoring.

Q: Does the T8403 require an external field power supply?

A: The T8403 logic power is supplied via the chassis backplane (20–32 VDC). However, field contact loops require an external 24 VDC supply routed through the appropriate Field Termination Assembly (FTA) or Field Termination Unit (FTU).

Q: What is the benefit of onboard 1 ms Sequence of Events (SOE)?

A: During a process shutdown, multiple inputs change state within milliseconds. The T8403 timestamps every state change at the hardware level with 1 ms resolution, allowing engineers to identify the exact initial trip cause rather than secondary cascading faults.

Q: What warranty is provided on surplus or refurbished T8403 cards?

A: All clean surplus and fully tested refurbished T8403 modules are backed by a full 12-month replacement warranty.
