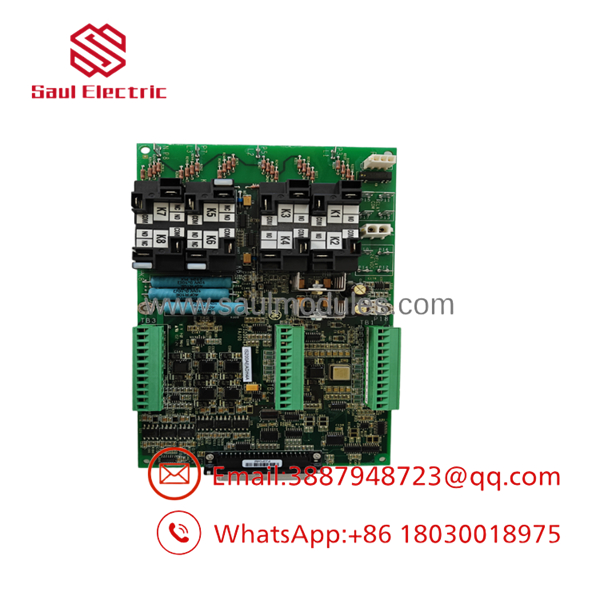

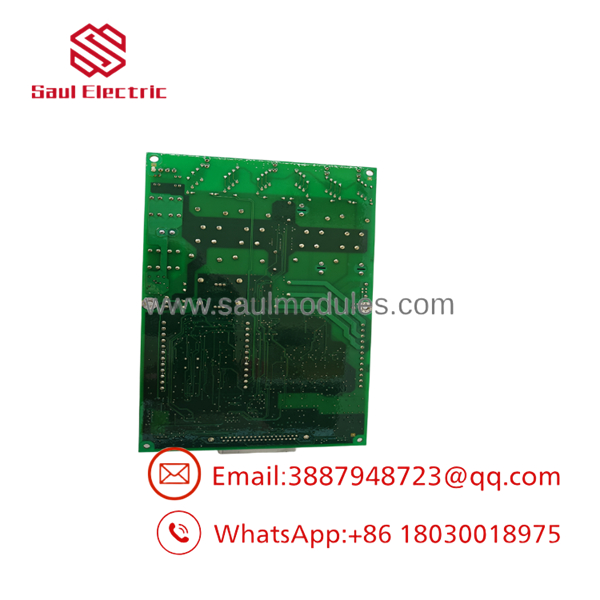

The GE IS200AEADH4A, identified with part number 109W3660P001, is a Mark VI analog input module used in turbine control systems. It collects field signals from sensors and feeds them into the control architecture for monitoring and sequencing.
What matters in the field is signal integrity. The IS200AEADH4A is built for noisy turbine environments where isolation, stable acquisition, and rack-level compatibility are non-negotiable. In a speedtronic cabinet, this is the kind of board you replace when process data must stay clean and the unit cannot afford bad inputs.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model | IS200AEADH4A |
| Alternate Part Number | 109W3660P001 |
| Brand | GE |
| Series | Mark VI / Speedtronic |
| Product Type | Analog input module / I/O board |
| Application | Turbine control and monitoring |
| Channel Isolation | 1500V RMS channel-to-channel |
| Use Case | Field analog signal acquisition |
| System Role | Input interface to controller |
| Typical Environment | Gas or steam turbine control cabinets |
Application Scenarios & The “Trench” Experience
A trench failure here usually starts small. One bad analog path, one noisy terminal, one drifting channel, and suddenly the operator is chasing phantom temperature or vibration values while the turbine rack keeps throwing confusion at the screen. That is a bad day.
- Power generation – gas turbine monitoring – this module is required because turbine control needs clean analog input handling under heavy electrical noise.
- Steam turbine control – field signal acquisition – it fits when the Mark VI cabinet needs direct sensor inputs for runtime supervision.
- Combined-cycle plants – critical process monitoring – it is needed when the control system must keep analog channels stable across demanding operating conditions.
- Heavy industrial energy systems – redundancy-focused I/O – it is required when downtime tolerance is low and replacement must match the existing rack architecture.
Field case: a turbine installation started showing erratic analog readings that looked like sensor failure, but the real issue was the input board. Maintenance swapped in a verified IS200AEADH4A with the correct part number and the signals settled immediately. That is the kind of repair that saves hours of unnecessary troubleshooting.
Transparency SOP: Quality Assurance & Testing
We do not just ship boxes; we test them on actual GE racks.
- Inbound Inspection: Verify part number, suffix, label condition, connector wear, and signs of prior repair.
- Live Rig Testing: Install the module in a compatible Mark VI setup and confirm signal handling and board response.
- Electrical Parameter Checks: Check channel behavior, insulation integrity, and noise resistance where applicable.
- Firmware Verification: Record board identity and any revision markings available from the lot.
- Final QC & Anti-Static Packaging: Clean, bag, pad, and ship in ESD-safe packaging with test notes.
- IS200AEADH4A 109W3660P001
- IS200AEADH4A 109W3660P001
The Veteran’s Tech Trap Guide
- ⚠️ Do not mix up the part number and the suffix. and 109W3660P001 need to line up exactly.
- ❗ Check whether the issue is the field wiring or the board. Bad termination can imitate a failed I/O card.
- ⚠️ Turbine cabinets are noisy. If isolation or grounding is wrong, the board will look guilty even when the root cause is elsewhere.
- ❗ Take photos before removal. Terminal layout, jumpers, and harness routing matter more than people admit.
Frequently Asked Questions
Q: Is the hot-swappable?
A: In practice, no. Treat it as a controlled maintenance replacement, not a live pull.
Q: What system is it used with?
A: It is associated with GE Mark VI / Speedtronic turbine control systems.
Q: What does it do?
A: It acquires analog field signals and passes them into the turbine control system for monitoring and control.
Q: Why is this cheaper than OEM direct?
A: Because it is usually sold through surplus or refurbished channels instead of active factory production.
Q: Is it fake or refurbished?
A: Seller quality varies, so verify labels, suffix, rack fit, and test results before buying.
Q: What should I verify before installation?
A: Confirm the exact part number, terminal compatibility, and Mark VI rack fit before you drop it in.
