Description
Product Introduction
The Kawasaki 0190-81237 is an industrial controller board assembly integrated into Applied Materials (AMAT) semiconductor tool platforms powered by Kawasaki robotics. Operating within vacuum transfer chambers, atmospheric Equipment Front End Modules (EFEMs), and wafer sorters, this unit serves as a primary control bridge between the tool’s central host computer and the multi-axis robot arm inside the processing cell.
In semiconductor fabrication, wafer placement precision requires sub-millimeter positioning accuracy without inducing mechanical vibration that could dislodge or fracture fragile silicon substrates. The 0190-81237 processes high-speed optical encoder feedback, regulates motor current loops via downstream power amplifiers, and maintains strict safety and vacuum interlock handshakes to prevent catastrophic tool collisions.
Key Technical Specifications
| Parameter | Value |
| Part Number | 0190-81237 (AMAT Reference) |
| OEM Manufacturer | Kawasaki Robotics |
| Application | Semiconductor Wafer Transfer Robots (AMAT End Effectors, Sorters) |
| Motion Control Type | Multi-axis coordinated path calculation with low-vibration interpolation |
| Logic Supply Voltage | Regulated internal DC power rails (+5 VDC / ±12 VDC / +24 VDC) |
| Encoder Interface | Multi-channel absolute / differential optical encoder inputs |
| Host Communication | Serial (RS-232/422) / Parallel Host Bus / SECS-GEM protocol support |
| Operating Environment | Class 1 to Class 10 Cleanroom Compatible |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
Application Scenarios & The “Trench” Experience
A hardware fault on the 0190-81237 halts wafer movement across entire processing bays, trapping 300mm or 200mm production wafers inside etch, CVD, or PVD vacuum chambers.
- AMAT Centura / Endura / Producer Cluster Tools: Managing vacuum transfer arm acceleration to swap wafers between load locks and process modules.
- Atmospheric Wafer Sorters & Aligners: Executing high-speed transfer routines from FOUPs to pre-aligner stages for OCR scanning.
- Cleanroom Wafer Edge Inspection Cells: Maintaining precise rotational and z-axis motor control during optical defect mapping.
Field Case Study: An atmospheric wafer handler inside a 300mm fab began generating intermittent “Arm Motion Timeout” errors during high-speed FOUP unloads, leaving wafers partially extended into the pre-aligner stage. Visual inspection and cable continuity tests showed no physical faults. Diagnostics isolated an aging logic buffer chip on the primary 0190-81237 controller card. Swap-replacing the card with a pre-tested surplus unit restored low-latency serial handshakes with the tool host, clearing the timeout alarms and bringing the tool back online within 45 minutes.
Transparency SOP: Quality Assurance & Testing
Every Kawasaki 0190-81237 module undergoes strict verification prior to warehouse dispatch:
- Mechanical & Visual Audit: Comprehensive check of surface-mount components, edge connector gold fingers, PCB traces, and part label authenticity.
- Power-On Self-Test (POST): Mounting into an energized test rack to confirm onboard voltage regulation, internal clock initialization, and LED status startup.
- Multi-Axis Encoder & Motion Loop Simulation: Testing feedback processing across active encoder channels to confirm smooth velocity profile generation.
- Host Communication Loopback Verification: Transmitting high-density data packets over serial and bus channels to verify signal integrity and zero packet drops.
- ESD-Safe Cleanroom Packaging: Vacuum-sealing the verified unit in heavy anti-static shielding bags with moisture desiccant prior to padded dispatch.

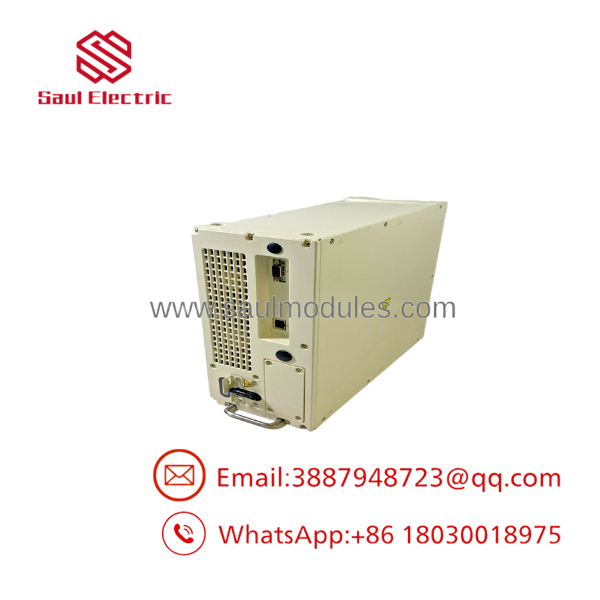

0190-81237

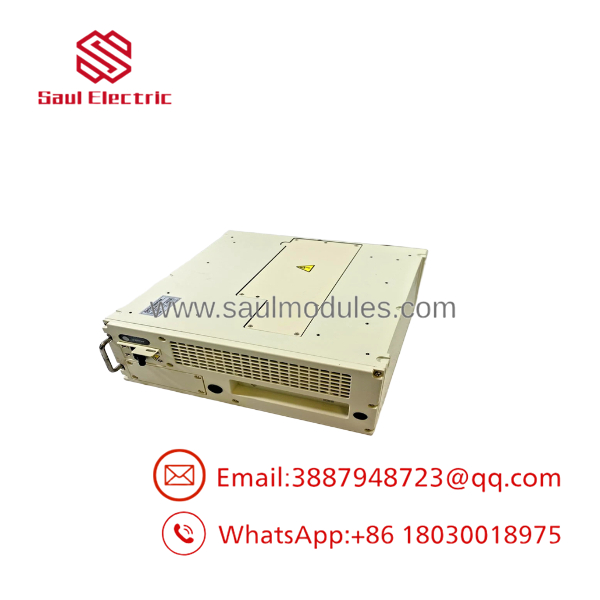

0190-81237
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ CRITICAL WARNING: Always isolate power to the robot controller rack and associated cluster tool before removing or seating the 0190-81237 assembly. Hot-swapping will arc edge connector pins, destroying sensitive optical encoder receivers and transceiver ICs.
- ❗ Backup Robot Calibration & Teach Data: The 0190-81237 or its associated memory modules store fine arm kinematics and pick/place home coordinates. Always save tool coordinate parameter files before installing a replacement card to avoid re-teaching every chamber slot.
- ⚠️ Verify Hardware DIP Switch & Jumper Positions: Before inserting a replacement card, compare all onboard jumper headers and DIP switch blocks side-by-side with the original unit. Mismatched jumpers can set incorrect baud rates or alter axis orientation profiles.
- ❗ Inspect Optical Fiber & Encoder Cable Leads: If replacing the board due to position drift, check external ribbon and encoder cables for micro-pinches. High-frequency electrical noise from a damaged cable can mimic a failing controller card.
Frequently Asked Questions (FAQ)
Q: Is the 0190-81237 an Applied Materials or Kawasaki part number?
A: “0190-81237” is Applied Materials’ primary spare part number for this sub-assembly, which is manufactured directly by Kawasaki Robotics to AMAT tool specifications.
Q: Can this unit be hot-swapped while the tool is energized?
A: No. Power to the controller enclosure must be completely disconnected and capacitor banks allowed to discharge before servicing internal card assemblies.
Q: Does this board require firmware updates upon installation?
A: The board must match the firmware build expected by your tool’s host software. Restoring your facility’s saved backup configuration file ensures full parameter compatibility.
Q: What warranty coverage is provided with this unit?
A: All Kawasaki 0190-81237 assemblies come with a full 12-month replacement warranty starting from the date of invoice.
