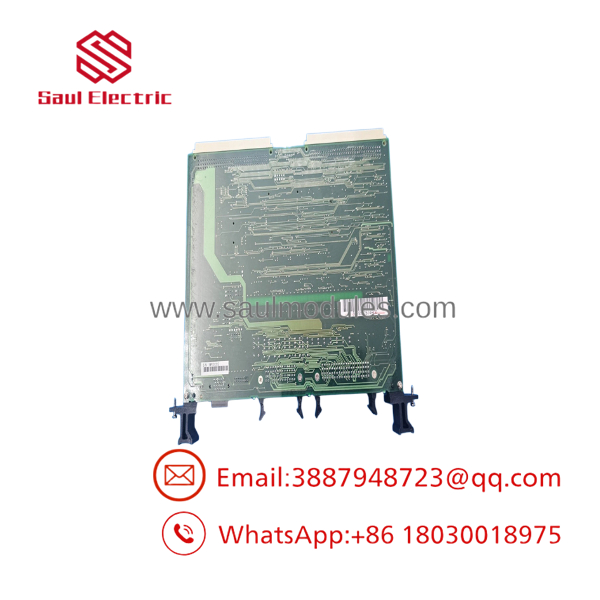

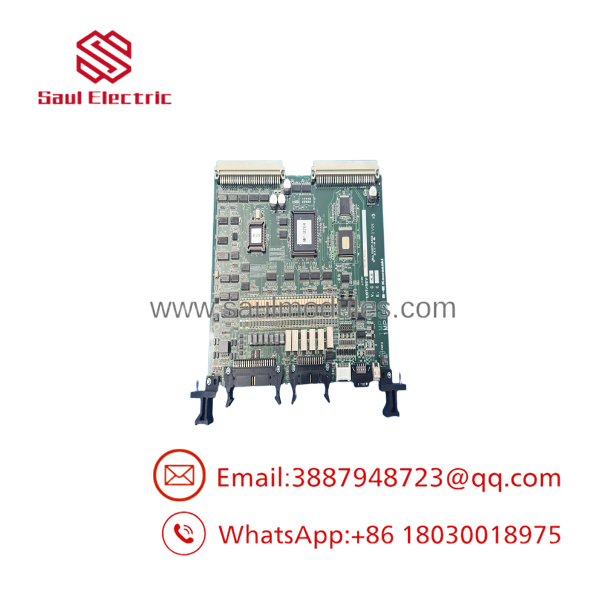

Kawasaki 50999-2614R00 1MP-52 Robot Controller PCB

Description

Product Introduction & Engineering Value

Kawasaki 50999-2614R00 is a legacy 1MP-52 robot controller PCB card used in Kawasaki robotic control hardware. The part is particularly relevant to maintenance teams supporting older Kawasaki systems where a board-level replacement is preferable to replacing an entire controller assembly.

The important procurement identifiers are 50999-2614R00, 1MP-52, and MP-U20A. Secondary listings also associate the board family with 1MP-12 and 1MP-42, so the complete controller configuration should be checked before treating any related 1MP board as a substitute.

Technical Specifications

The MG08 V.C. revision and 1MP-12/1MP-42 relationships are specifically shown in current inventory descriptions.

I would not publish a processor type, memory capacity, supply voltage, I/O count, or connector pinout as a confirmed specification without Kawasaki documentation for the applicable controller. That information is not established by the available part listings.

Field Application & the “Trench” Experience

A maintenance technician is dealing with an aging Kawasaki controller that intermittently fails during initialization. The diagnostic trail eventually points toward the controller PCB. The original board is marked 50999-2614R00 / 1MP-52.

The replacement search looks straightforward.

It isn’t.

A used board can carry the correct Kawasaki part number while having a different physical revision, configuration, or installed memory components. The current inventory record identifies MG08 V.C. and additional 1MP designations, making an actual-board comparison worthwhile before installation.

For a critical production cell, photograph the original board before removal. Record every label. Then compare the replacement—not just the seller’s catalog description.

Niche application scenarios

• Legacy Kawasaki robot controller: replacement of a failed 1MP-52 controller PCB.
• MP-U20A control architecture: maintenance of board-level controller electronics.
• Automated assembly cell: restoration of an aging Kawasaki robot controller without replacing the complete cabinet.
• Industrial robot refurbishment: stocking a tested 50999-2614R00 as a critical electronic spare.

50999-2614R00

50999-2614R00

Transparency SOP: QA & Testing

For New Surplus or Refurbished 50999-2614R00, use a documented board-level test process:

1. Part verification — Confirm 50999-2614R00.
2. Board verification — Confirm 1MP-52.
3. Revision inspection — Compare the installed revision, including MG08 V.C. where applicable.
4. PCB inspection — Examine connectors, solder joints, traces, capacitors, and signs of overheating.
5. Configuration check — Record switches, jumpers, memory devices, and other configurable components.
6. Controller installation test — Install only in a known-compatible Kawasaki controller.
7. Startup test — Verify normal controller initialization.
8. Diagnostic test — Confirm that board-related alarms are absent.
9. Robot communication test — Verify communication with the applicable robot/controller system.
10. Final QA record — Document the tested serial/board identification and warranty.

Bench power alone is not enough. A controller PCB should be tested through the functions for which it is actually used.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Treating 1MP-52 and 1MP-42 as automatically interchangeable

Current listings group 1MP-52, 1MP-12, and 1MP-42 with 50999-2614R00. That is useful cross-reference information, but it does not establish unrestricted interchangeability.

PRO TIP: Match the complete Kawasaki part number first. Use related board numbers only as secondary verification.

⚠️ Trap #2 — Ignoring the revision

One current listing identifies the board as 1MP-52, Rev. MG08 V.C. If the installed board carries a revision marking, photograph it before ordering.

⚠️ Trap #3 — Buying a board without knowing the controller

The available documentation associates the board with MP-U20A. Do not assume that every Kawasaki controller using an 1MP-series board has the same configuration.

⚠️ Trap #4 — Confusing “working surplus” with OEM-new

A current market listing describes this exact part as used working surplus. That is not the same condition as factory-new inventory.

Ask for the actual unit’s photographs and test report.

Dynamic FAQ

What is Kawasaki 50999-2614R00?

It is a Kawasaki 1MP-52 robot controller PCB card associated with the MP-U20A controller/system family.

What board designation is associated with this part?

The primary designation is 1MP-52. Current listings also reference 1MP-12 and 1MP-42 in connection with the part.

What revision is documented?

A current working-surplus listing identifies the board as Rev. MG08 V.C.

Is 50999-2614R00 still available?

Yes. It remains available through the secondary industrial-automation market. Current listings include used working-surplus examples.

Can I replace 50999-2614R00 with another 1MP-series board?

Not automatically. Verify the complete part number, board designation, revision, controller model, connector arrangement, configuration hardware, and firmware requirements before substitution.

Is New Surplus stock available?

The current evidence confirms used working-surplus inventory. It does not establish that every listing described as “surplus” is unused or factory-new. Ask the supplier to state the condition explicitly in writing.

What should I request before purchasing?

Request:

• Actual-unit photographs
• 50999-2614R00 label confirmation
• 1MP-52 board marking
• Revision information
• Controller compatibility
• Functional test procedure and results
• Warranty terms

What warranty should I expect?

Warranty terms are supplier-specific. Do not treat a secondary-market warranty as a Kawasaki OEM warranty. For a production-critical spare, obtain the warranty period and covered failure conditions in writing before purchase.
