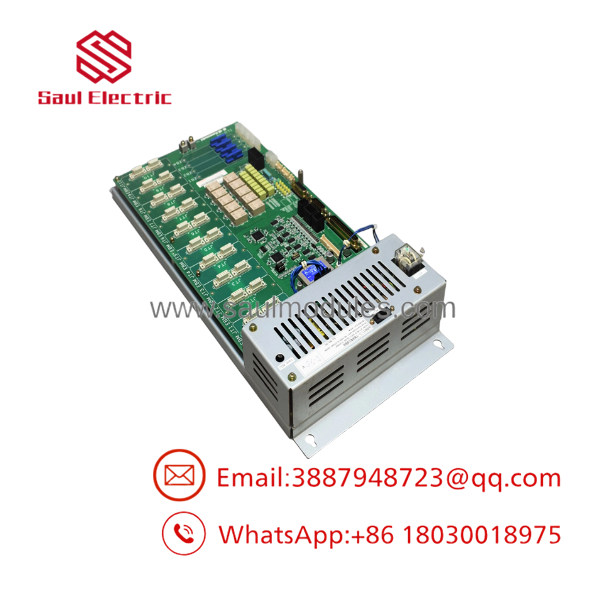

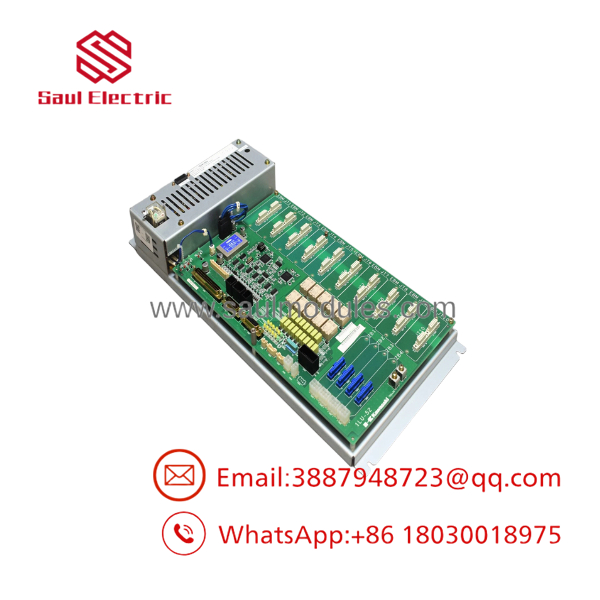

Kawasaki 50999-2254R00 Robotic Drive Unit Control Board

Description

Product Introduction

The Kawasaki 50999-2254R00 (commonly identified by sub-designations 1LU-42 or 1LU-52) is a specialized control board embedded inside Kawasaki robotic servo amplifier drive units. Engineered for multi-axis industrial robots across welding, material handling, and assembly cells, this card bridges the gap between the controller’s main CPU and the high-power IGBT stage, ensuring precise torque, velocity, and position regulation.

Unlike general digital I/O modules, the 50999-2254R00 processes high-frequency optical encoder signals directly and converts motion commands into accurate gate pulses with minimal latency. Installing a verified replacement restores smooth axis interpolation and clears servo drive communication or tracking errors across demanding robotic duty cycles.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It is 1:45 AM during a high-volume shift, and Axis 2 on a palletizing robot suddenly trips with a “Servo Driver Error – Current Loop Failure.” The robot collapses mid-pick, leaving the line completely blocked. The line supervisor is calculating lost throughput by the minute. Your tech swaps the external resolver cable, but the error persists—the current feedback circuit on the 1LU drive control board has drifted out of spec. Having a tested 50999-2254R00 card ready in your spare parts crib converts a potential 12-hour overhaul into a simple card swap.

Industry Applications:

• Automotive Spot & Arc Welding: Manages precise joint path control under heavy electrical noise and high duty cycles.
• Palletizing & Packaging Lines: Coordinates rapid acceleration profiles for multi-axis articulated arms without inducing vibration.
• Machine Tending & CNC Handling: Provides micro-positioning accuracy during fast load/unload operations inside machine tools.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Kawasaki equipment racks before they leave our static-free bench.

1. Inbound Inspection: Microscopic check for burned trace lines, thermal stress discoloration around driver ICs, bulging capacitors, and bent connector pins.
2. Live Rig Testing: Insertion into a functional Kawasaki servo drive rack to verify cold boot, parameter initialization, and drive handshake.
3. Feedback Signal Validation: Oscilloscope testing on encoder channel inputs and gate-drive PWM outputs to ensure clean signal transitions without noise distortion.
4. Firmware & Sub-Model Audit: Verification of exact 1LU-42 / 1LU-52 board layout variations to guarantee proper physical and electrical parity.
5. ESD Protection & Packaging: Chemical cleaning with specialized PCB contact cleaner, wrapped in anti-static shielding bags, and securely boxed with high-density foam.

50999-2254R00

50999-2254R00

The Veteran’s Tech Trap Guide (Crucial Value-Add)

In our field experience, replacing servo drive control boards requires extra care to avoid damaging replacement components. Here are key warnings:

• ⚠️ Confirm Your 1LU Variant: Check the silkscreen marking on your original card (e.g., 1LU-42 vs. 1LU-52). While both share the base part number 50999-2254R00, minor component revisions or jumper placements can affect current-loop tuning for specific motor frame sizes.
• ❗ Wait for DC Bus Discharge: NEVER unseat this card right after hitting the E-stop. High-voltage DC link capacitors on the servo drive chassis stay charged for several minutes. Touching the board header before the charge LED goes out can ruin the board and present a safety hazard.
• ⚠️ Inspect the Power Electronics First: If a shorted IGBT module caused your initial drive fault, dropping in a new control board without checking the power stage can immediately blow the gate-drive components on the replacement 50999-2254R00. Test the drive module’s output transistors with a multimeter before installing the replacement card.
• ❗ Wrist Straps Are Mandatory: Gate drive ICs on servo boards are extremely susceptible to static electricity. Always wear a grounded ESD wrist strap when handling the card to prevent latent oxide breakdown.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the Kawasaki 50999-2254R00 hot-swappable?

A: Absolutely not. Attempting to pull or insert this card with control power or 3-phase mains applied will damage the backplane interface and likely destroy the onboard logic chips. Always de-energize the entire controller cabinet.

Q: What is the difference between 50999-2254R00 and standard PLC boards?

A: While standard PLC boards handle general I/O logic, the 50999-2254R00 is a dedicated drive control board. It handles real-time current loops, velocity feedback, and high-frequency PWM switching commands directly within the robot’s servo drive rack.

Q: Do I need to recalibrate robot arm zero positions after replacing this board?

A: In most cases, zero position (revolution count) data is stored in the main CPU memory or battery-backed pulse coders. Replacing this drive control board should not erase calibration data, though you should always verify joint alignment after power-up.

Q: Are these replacement units original OEM?

A: Yes. All our stock consists of genuine Kawasaki Robotics hardware. We source our inventory through verified factory surplus, system upgrades, and decommissioned industrial lines.

Q: What warranty coverage comes with this board?

A: We supply every 50999-2254R00 board with a full 12-month replacement warranty. If the card experiences an operational failure under normal working conditions within one year, we will exchange it or issue a prompt refund.
