Kawasaki 50999-2646R11 1GW-51 Robot Controller PCB

Description

Product Introduction & Engineering Value

Kawasaki 50999-2646R11 is a legacy 1GW-51 robot controller PCB card used in Kawasaki robotic control equipment. The R11 revision is part of the procurement identity and should not be omitted when matching a replacement board.

This part is also significant in semiconductor-equipment spare-parts inventories, where Kawasaki 1GW-series controller boards are used with wafer-handling and process equipment. Available listings identify 50999-2646R11 as a controller PCB rather than a complete robot controller.

Technical Specifications

The 1GW-51 / 1GW-41 / 1GW-11 relationship is explicitly shown in current inventory documentation.

A useful distinction: 50999-2646R11 should not be confused with Kawasaki 50999-2145R10, even though both are identified with the 1GW-51 designation in secondary-market catalogs. The complete part number and revision remain critical.

Field Application & the “Trench” Experience

Consider an older semiconductor handling system with a Kawasaki robot controller that begins failing during initialization. The maintenance team finds the installed board marked 1GW-51, but the spare cabinet contains another Kawasaki 1GW-series PCB.

This is exactly where part-number discipline matters.

1GW-51 alone is not enough. Current listings show multiple Kawasaki part numbers carrying the 1GW-51 designation, including 50999-2145R10 and 50999-2646R11. They should not be treated as interchangeable simply because the board model appears similar.

Niche application scenarios

• Wafer-handling robot controller: replacement of a failed 1GW-series controller PCB.
• Semiconductor process equipment: maintaining Kawasaki robotic hardware integrated into legacy process tools.
• 300 mm wafer handling: controller-board replacement in older automated material-handling architectures.
• Legacy Kawasaki robot refurbishment: maintaining board-level spares for equipment where complete controller replacement is impractical.

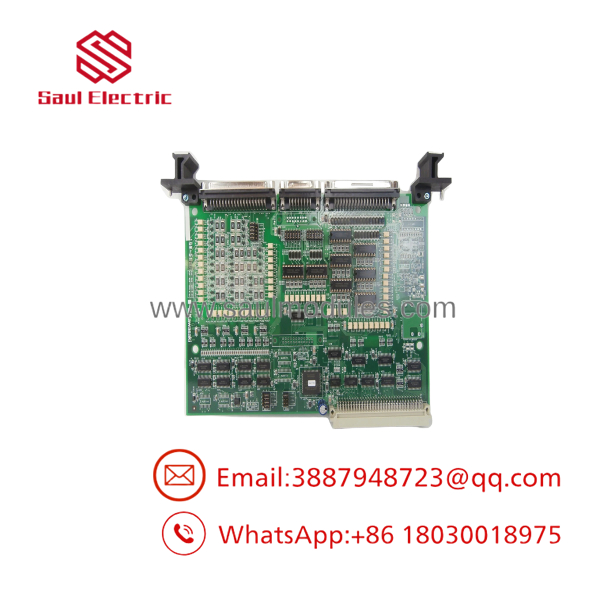

50999-2646R11

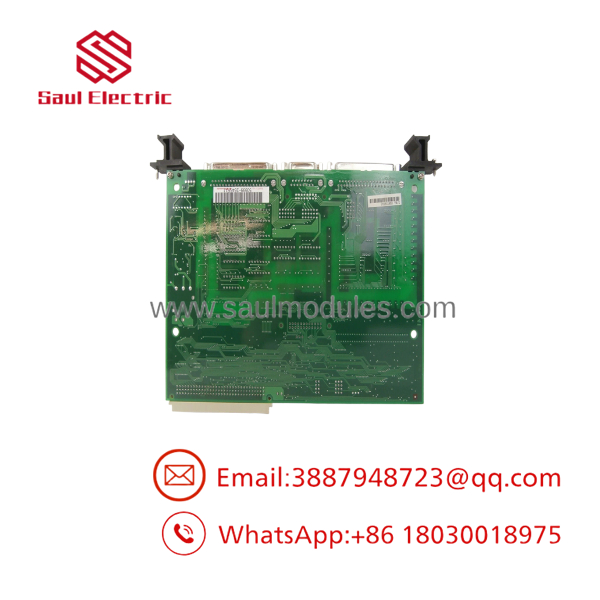

50999-2646R11

Transparency SOP: QA & Testing

For New Surplus or Refurbished 50999-2646R11, a proper acceptance procedure should include:

1. Exact identification — Confirm 50999-2646R11.
2. Board marking — Verify 1GW-51.
3. Revision check — Confirm R11, not merely a generic 1GW-51 board.
4. Physical inspection — Examine PCB traces, connectors, solder joints, capacitors, and signs of thermal damage.
5. Configuration inspection — Record switches, jumpers, memory devices, and secondary labels.
6. Controller compatibility — Verify the intended Kawasaki controller and equipment.
7. Controlled power-up — Perform the test in a compatible controller/test fixture.
8. Diagnostic verification — Confirm normal controller initialization.
9. Functional test — Verify the board’s actual controller functions rather than only checking for power.
10. QA documentation — Record the test configuration and warranty against the actual board.

A seller saying “working” is not the same as providing a functional test report.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Assuming every 1GW-51 is interchangeable

This is the big one.

Kawasaki 50999-2145R10 is also listed as a 1GW-51 controller PCB, while 50999-2646R11 is separately identified as a 1GW-51 board. The matching designation does not establish electrical or firmware interchangeability.

PRO TIP: Specify 50999-2646R11 + 1GW-51 + controller model on the RFQ.

⚠️ Trap #2 — Losing the R11 suffix

Do not order “Kawasaki 50999-2646” and assume the supplier will automatically provide R11.

For legacy controller boards, revision control matters.

⚠️ Trap #3 — Confusing this board with a complete robot controller

50999-2646R11 is a PCB card, not a complete Kawasaki robot controller cabinet. The surrounding controller hardware remains part of the compatibility assessment.

⚠️ Trap #4 — Accepting a generic surplus description

Current inventory explicitly describes the available example as used working surplus, with visible signs of previous use and handling.

That is useful inventory, but it should not be represented as factory-new simply because the supplier calls it “surplus.”

Dynamic FAQ

What is Kawasaki 50999-2646R11?

It is a Kawasaki 1GW-51 robot controller PCB card. Current listings also associate the board with 1GW-41 and 1GW-11 designations.

What is the 1GW-51 designation?

It is the board/model designation associated with Kawasaki 50999-2646R11 in current industrial spare-parts listings.

Is 50999-2646R11 the same as 50999-2145R10?

No—not by part number alone. Both have been listed as 1GW-51 boards, but they carry different Kawasaki part numbers and revisions. Compatibility should be established from the controller documentation and installed hardware.

Is this board used in semiconductor equipment?

Yes. Kawasaki 1GW-series controller boards appear in secondary-market inventories associated with semiconductor and wafer-handling equipment. One current inventory source specifically categorizes 50999-2646R11 under wafer-handling robots and controllers.

Is 50999-2646R11 available as used surplus?

Yes. A current listing identifies an actual 50999-2646R11 / 1GW-51 unit as used working surplus and states a 90-day warranty/satisfaction guarantee for that inventory.

Is New Surplus the same as Used Working?

No. Used Working means the actual component has previously been used and is being sold as functional. New Surplus normally means unused OEM inventory that entered the secondary market. Always request the supplier’s written condition classification.

What should I request before buying?

Request photographs of the actual 50999-2646R11 board, including the part-number label, 1GW-51 marking, revision information, connectors, and any configuration hardware. Also request the actual test procedure, test results, warranty period, and confirmation of whether the board was tested in a Kawasaki controller.

What is the safest replacement strategy?

Match the complete 50999-2646R11 part number first, then verify the 1GW-51 designation, controller model, physical connectors, configuration hardware, and firmware requirements. Do not substitute another 1GW-series board solely because the model designation looks similar.
