Kawasaki 9EA-31 70904LR Control Module

Description

Product Introduction & Engineering Value

Kawasaki 9EA-31, part number 70904LR, should be identified from the complete physical nameplate and its associated Kawasaki equipment before replacement. The two identifiers should be retained together when purchasing, since either one may be used in legacy maintenance records or supplier databases.

I would not treat 9EA-31 as a generic PLC or I/O module without manufacturer documentation establishing that classification. For a legacy component, the safest procurement decision comes from matching the complete part number, hardware revision, connector arrangement, and parent-system configuration.

Technical Specifications

Technical identification warning

I could not establish a sufficiently reliable manufacturer source for the detailed electrical and functional specifications of Kawasaki 9EA-31 / 70904LR. Therefore, I would not publish an assumed voltage, I/O count, protocol, CPU type, or application classification as fact.

That is particularly important with legacy Kawasaki hardware. A wrong electrical specification can turn an inventory replacement into a damaged component.

Field Application & the “Trench” Experience

A realistic maintenance situation involves an older Kawasaki automation cabinet with a failed component identified as 9EA-31 / 70904LR. The plant has no current OEM documentation immediately available, while several online listings show similar Kawasaki assemblies.

The maintenance team should resist the temptation to select the closest-looking replacement.

Start with the original label. Photograph every marking. Trace the component to the cabinet drawing and parent controller. Then compare connector positions, wiring, electrical ratings, and revision information before installation.

Niche application scenarios

• Legacy Kawasaki machine-control cabinet: replacement during scheduled electrical maintenance.
• Automated production equipment: restoration of a discontinued Kawasaki control assembly.
• Material-handling system: replacement of legacy control hardware while retaining the existing machine architecture.

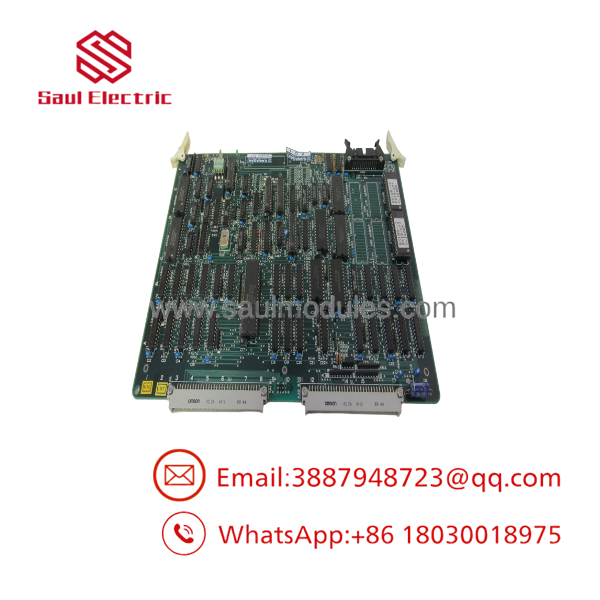

9EA-31 70904LR

Transparency SOP: QA & Testing

For New Surplus or Refurbished 9EA-31 70904LR stock:

1. Identity verification — Confirm both 9EA-31 and 70904LR.
2. Nameplate recording — Capture serial number, revision, and secondary markings.
3. Physical inspection — Check connectors, terminals, housing, PCB condition, and mounting hardware.
4. Electrical verification — Establish the correct input/output requirements before applying power.
5. Bench test — Use only an approved fixture based on verified specifications.
6. System test — Where possible, test in the appropriate Kawasaki equipment.
7. Functional verification — Confirm the actual machine-control function supported by the component.
8. QA documentation — Record the test environment, measured results, condition, and warranty.

For this particular part number, I would not accept a supplier’s “tested OK” statement without asking what was actually tested.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Using only the 9EA-31 number when searching

The additional identifier 70904LR is valuable. Search and purchase using both identifiers:

Kawasaki 9EA-31 / 70904LR

This reduces the risk of receiving a similar but incompatible assembly.

⚠️ Trap #2 — Assuming it is a standard PLC module

Do not infer the hardware category from the physical appearance. Establish the component’s function from Kawasaki documentation or the original machine drawings.

⚠️ Trap #3 — Applying power before confirming specifications

For unknown legacy hardware, this is an avoidable failure. Verify voltage, polarity, connector pinout, and load requirements first.

⚠️ Trap #4 — Ignoring revision information

If the original component has a revision or modification code, record it. Legacy Kawasaki systems can depend on specific hardware revisions.

Dynamic FAQ

What is Kawasaki 9EA-31 70904LR?

It is a Kawasaki legacy industrial automation part identified by model 9EA-31 and part number 70904LR. The exact hardware function should be confirmed against the associated Kawasaki system documentation.

What type of module is 9EA-31?

The available identification is not sufficient to reliably classify 9EA-31 as a CPU, I/O module, power supply, or communication module. A positive identification should use the physical nameplate and parent-equipment documentation.

What voltage does Kawasaki 9EA-31 70904LR require?

The voltage should be verified from the exact unit’s technical documentation. Do not apply power based on an assumed specification.

Can another 9EA-series Kawasaki part replace it?

Not automatically. Compare the complete part number, electrical characteristics, connector arrangement, hardware revision, and parent-system compatibility before substitution.

How should New Surplus 9EA-31 70904LR be verified?

Request photographs of the actual unit, complete nameplate markings, revision information, condition classification, applicable functional test results, and written warranty terms.

What information would make positive identification easier?

The most useful information is a clear photograph of the 9EA-31 / 70904LR nameplate, plus the Kawasaki controller or machine model where the component is installed. That can distinguish the component from similarly numbered legacy Kawasaki hardware.

Is a warranty available for New Surplus stock?

Warranty terms depend on the supplier and condition of the inventory. For a critical legacy spare, obtain the warranty duration and return procedure in writing before purchase.
