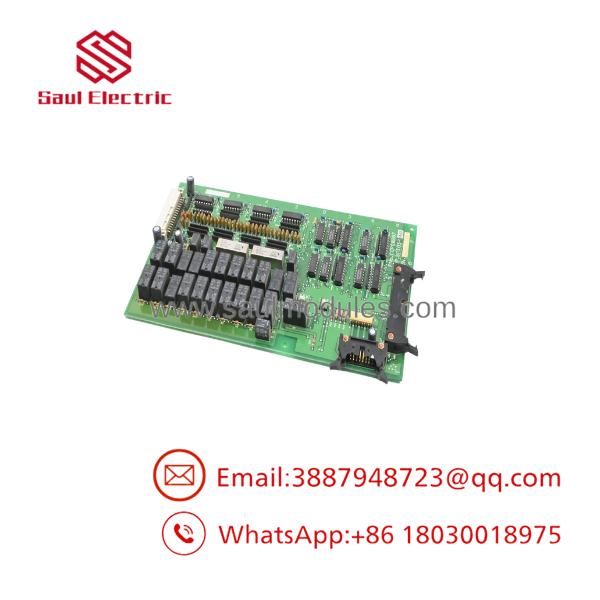

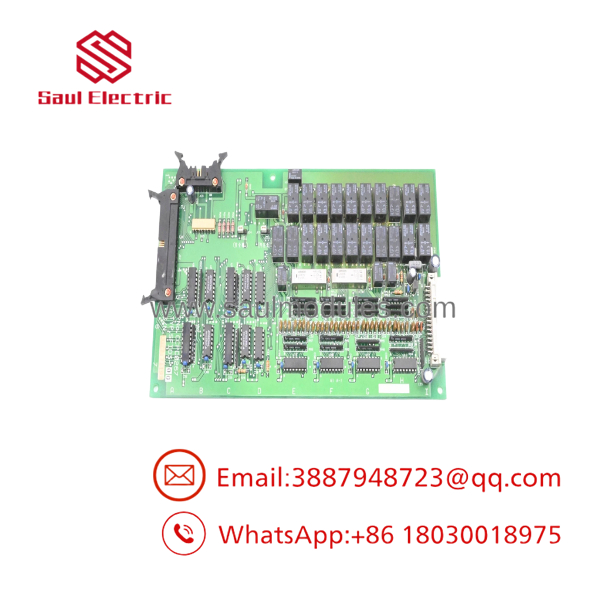

Kawasaki CCPC0267 SFI03-00 Robot Controller Safety Interface PCB Board

Description

Product Introduction

The Kawasaki CCPC0267 (commonly carrying the sub-type marking SFI03-00 or SFI03-01) is a specialized safety interface circuit card engineered for Kawasaki industrial robot controller cabinets. Deployed across automated spot welding, pick-and-place, and heavy-payload transfer systems, this board serves as the primary hardware gatekeeper between peripheral cell safety sensors and the controller’s main drive enable circuits.

Unlike general-purpose software I/O modules, the SFI03-00 hardware handles hardwired, redundant emergency stop (E-stop) loops, deadman switch inputs from the teach pendant, and safety fence interlocks. Swapping a degraded CCPC0267 board restores determinism to the safety circuit, clears unrecoverable safety interlock trip alarms, and allows motor power to latch on reliably.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It is 3:15 AM on a Sunday, and a robot cell inside a high-speed automotive stamping plant drops motor power with a non-clearable “Safety Gate Interlock Fault.” The maintenance tech verifies all cell safety curtains, light beams, and enclosure doors are physically closed, but the controller refuses to reset the safety loop. Diagnostic probing confirms that a safety relay channel on the CCPC0267 board has welded contacts due to years of continuous electrical cycling. Every 15 minutes the press line sits idle costs thousands in lost production. Dropping in a fully bench-tested CCPC0267 SFI03-00 card clears the latching fault instantly and lets you re-energize the servo drive rack.

Industry Applications:

• Automotive Body-in-White Welding: Interfaces light curtains, perimeter fencing, and welding cell gate interlocks directly with cabinet safety contactors.
• High-Speed Palletizing Lines: Manages deadman switch signals from the teach pendant and perimeter E-stop buttons during manual teach modes.
• Machine Tending & CNC Handling: Monitors hardware interlock handshakes between machine tool doors and the robot controller backplane.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Kawasaki equipment racks before they leave our static-free bench.

1. Inbound Inspection: High-magnification microscopic scan for thermal stress discoloration around relay contacts, cracked PCB traces, degraded capacitors, and bent connector pins.
2. Live Rig Testing: Insertion into a functional Kawasaki robot controller rack to verify proper cold boot-up and backplane communication handshakes.
3. Safety Loop Validation: Hardwired functional testing of both primary and secondary safety channels under simulated E-stop drops and gate trips to verify positive contact switching.
4. Hardware & Suffix Audit: Verification of exact board revision markings (SFI03-00 vs SFI03-01) to ensure physical and functional parity.
5. Final Cleaning & ESD Packaging: Ultrasonic wash of non-sensitive zones, vacuum-sealed in static-shielding bags, and secured in custom high-density protective foam.

CCPC0267 SFI03-00

CCPC0267 SFI03-00

The Veteran’s Tech Trap Guide (Crucial Value-Add)

In our field experience, servicing safety interface cards requires strict attention to detail to avoid damaging replacement hardware:

• ⚠️ Match Onboard Jumpers Side-by-Side: Before sliding the replacement CCPC0267 board into the card cage, lay it on an ESD mat next to your original unit. Copy over every jumper and shorting plug setting exactly. Misconfigured jumpers can keep the controller in a permanent E-stop condition or bypass safety loops unintentionally.
• ❗ Never Pull Under Power: Shut down main cabinet power and wait 3 to 5 minutes for internal DC link capacitors to discharge completely. Pulling this board live can arc edge connectors and damage adjacent CPU or bus communication modules.
• ⚠️ Check External Safety Contacts First: If the original board failed due to a severe voltage surge on an external 24V safety line (e.g., a crushed cable on a safety gate), test the incoming field wiring before installing the replacement card. A shorted field wire will destroy the input optocouplers on the replacement board immediately.
• ❗ ESD Wrist Straps Are Mandatory: Logic and interlock ICs on safety boards are sensitive to electrostatic discharge. Always wear a grounded wrist strap during handling to prevent latent gate damage that leads to intermittent safety trips down the road.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the Kawasaki SFI03-00 board hot-swappable?

A: No. Attempting to pull or insert this card while the cabinet rack is energized will cause electrical transients, ruin the backplane edge connectors, and damage onboard logic components. Always lock out main cabinet power before servicing.

Q: Are and SFI03-01 revisions interchangeable?

A: In almost all Kawasaki C-Series and D-Series controller racks, the SFI03-01 revision serves as a direct, backward-compatible drop-in replacement for the . However, always verify onboard jumper configurations against your original board before applying power.

Q: Will swapping this board erase my robot’s taught programs or calibration points?

A: No. Positional teach data, user routines, and encoder calibration data are stored on the main CPU memory card or battery-backed SRAM. The manages safety hardware logic and interlock signaling, so your program memory remains completely intact.

Q: Are these replacement boards authentic OEM components?

A: Yes. All our stock consists of genuine Kawasaki Heavy Industries / Kawasaki Robotics hardware sourced directly from factory surplus buybacks, plant upgrades, and verified decommissioned industrial facilities.

Q: What warranty comes with this surplus safety board?

A: Every board includes a full 12-month replacement warranty. If the card experiences an operational failure under normal working conditions within 365 days, we will exchange it or issue a prompt refund.
