Description
Core Product Summary
The KEBA FB201 is an industrial fieldbus interface and I/O expansion card designed for integration within KEBA Kemro modular automation control systems. Commonly deployed in specialized machinery such as injection molding equipment, plastics processing systems, and robotic cells, the FB201 facilitates stable real-time data exchange between central controller processors and field-level hardware.
The card connects directly into system backplane slots or expansion carrier racks, serving as an interface gateway for digital and analog signal channels. Its design focuses on high signal integrity, rapid processing response, and seamless communication with KEBA control CPUs and operating panels.
Key Technical Specifications
| Specification Parameter | Verified Detail |
| Product Type | Fieldbus Interface / I/O Expansion Card |
| System Family | KEBA Kemro Series Control Platform |
| Module Designation | FB201 (also variant FB 201/E) |
| Functionality | Analog and Digital Signal Processing / Field Interface |
| Mounting Form Factor | Rack-mounted modular expansion card |
| Application Focus | Injection molding machines, plastics processing, industrial robotics |
Detailed Product Overview
The KEBA FB201 serves as a communication and I/O expansion node within KEBA’s modular control environment. In complex machinery systems, such as injection molding presses, central processing units require dedicated high-speed cards to interface with sensors, actuators, and peripheral fieldbuses. The FB201 handles these signal paths to maintain deterministic processing times required for motion control and pressure/temperature regulation.
Integrating the module requires a compatible KEBA Kemro rack enclosure and system central processing unit. Communication parameters and signal assignments are established within the system’s software development environment during machine configuration. By delegating fieldbus translation and I/O interfacing to the FB201, the overall control architecture maintains low latency and consistent cycle times across critical machine operations.

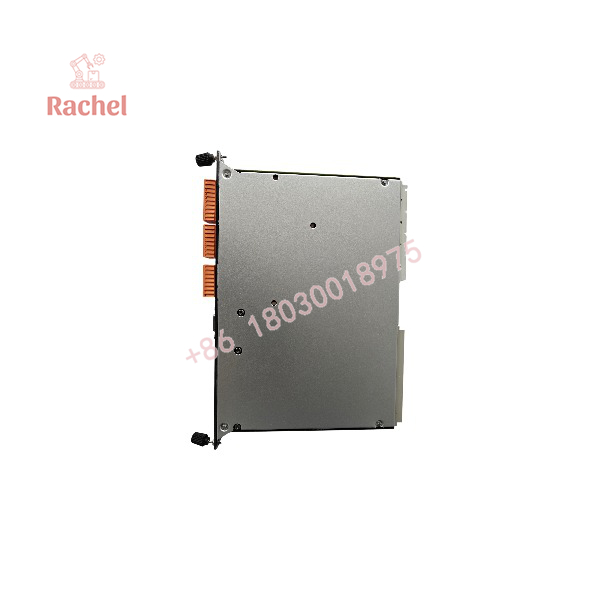

FB201

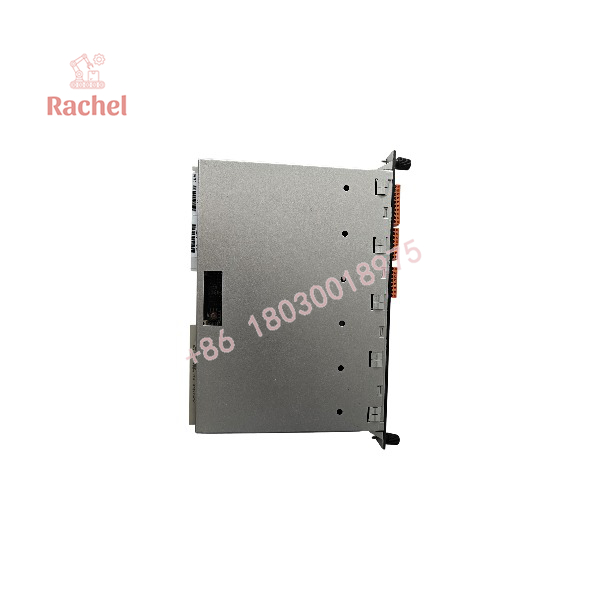

FB201
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| System Architecture | KEBA Kemro modular automation series | Inserts directly into designated backplane expansion slots. |
| Main Controller | Compatible KEBA Central Processing Units (CPUs) | Works in conjunction with system CPUs for coordinated control logic. |
| Engineering Software | KEBA system configuration tool environment | Software setup is required to define I/O mapping and fieldbus node parameters. |
| Target Equipment | Plastics processing machinery, injection molding presses, robotics | Tailored for high-duty-cycle industrial automation equipment. |
Dimensions, Mounting & Connection Notes
- Form Factor: Modular rack-mount card format designed for KEBA controller backplanes.
- Installation: Secures via front-panel mounting screws into the expansion rack frame; power and backplane signals connect via standard edge connectors.
- Wiring & Interfacing: Field connections interface via front-panel terminal strips or multi-pin connectors depending on specific sub-variant revisions.
- Handling: Static-sensitive electronics; standard ESD protection measures (grounding wrist straps) must be used during insertion or removal.
FAQ
What is the KEBA FB201?
The KEBA FB201 is a fieldbus interface and I/O expansion card used in KEBA Kemro industrial control systems.
Where is the FB201 typically deployed?
It is primarily used in plastics processing equipment, injection molding machinery, and industrial automation system architectures.
How does the FB201 interface with the control system?
It mounts directly into the rack backplane of a KEBA controller system, exchanging data directly with the main CPU.
Is the FB201 hot-swappable?
No. Main system power should be fully isolated before installing, removing, or servicing the module to prevent electrical damage to backplane connectors.
