KEYENCE KV-7500 High-Speed CPU Unit

Description

Product Introduction

The KEYENCE KV-7500 stands as a flagship real-time logic controller CPU built specifically for high-throughput automated assembly, packaging, and precision robotics. Designed to drive ultra-fast machine cycles, it processes basic instructions in an astounding 0.96 nanoseconds. It bridges industrial networks seamlessly using dual built-in EtherNet/IP interfaces, making it a favorite for data-heavy smart factory installations.

Unlike general-purpose PLCs that choke when executing complex mathematical scripts alongside heavy fieldbus comms, the KV-7500 offloads network overhead internally to maintain stable scan times. Integrating this unit gives system integrators massive memory headroom, built-in SD card logging, and front-panel diagnostic access without requiring external programming consoles on the plant floor.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s midnight on a high-speed battery cell assembly line, and the main controller starts throwing random task overrun errors during vision-guided pickup sequences. The previous-gen PLC scan time spiked above 12ms, missing optical trigger pulses and creating an instant bottleneck. To be honest, these intermittent timing ghosts drive plant engineers crazy. Swapping in a KV-7500 knocks the cycle time down to under 1.5ms, maintaining microsecond-level synchronization across multiple servo axes and saving hundreds of parts per hour from scrap.

• Electronics & Semiconductor Assembly – High-Speed Pick-and-Place – Crucial for deterministic processing of optical sensor signals and rapid motion triggers.
• Automotive EV Battery Cell Manufacturing – Precision Line Synchronization – Delivers uninterrupted EtherNet/IP motion data to multiple伺服 drives simultaneously.
• Automated Packaging Systems – Multi-Axis Camming & Inspection – Handles high-volume vision camera feedback without degrading PLC logic scan speeds.

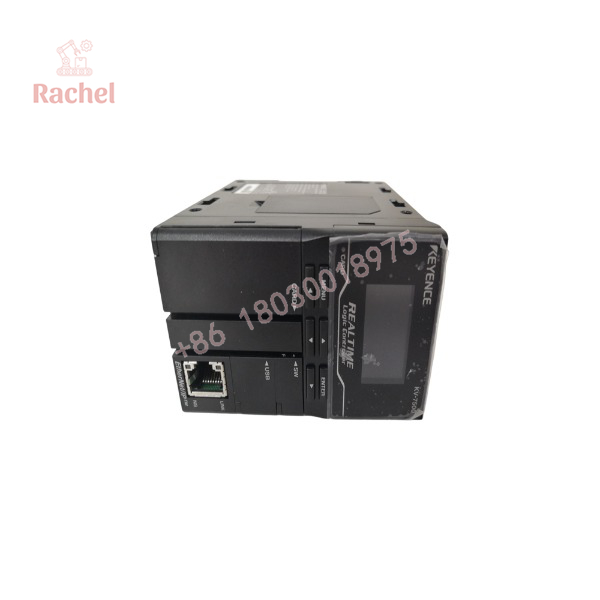

KV-7500

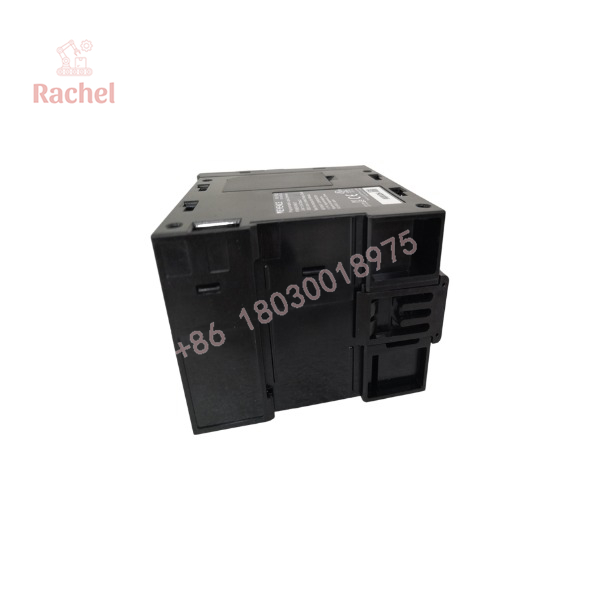

KV-7500

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual KEYENCE expansion racks.

1. Inbound Inspection: Verification of physical housing integrity, OEM security seals, and pin connector alignment on the backplane interface.
2. Power-On Self-Test (POST): Mounting on a KV-7000 base chassis to verify bootloader completion, LED behavior, and OLED screen functionality.
3. Firmware & Memory Audit: Reading internal registers via KV STUDIO to verify revision levels, clearing retention registers, and testing memory read/write cycles.
4. Communication Loopback Testing: Exercising both EtherNet/IP ports under full-duplex traffic loads to verify packet loss tolerances and MAC address validity.
5. Final Anti-Static Packaging: Sealing the CPU in static-dissipative material alongside fresh battery buffers before dispatching.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ SD Card File System Formatting: Do not insert a standard off-the-shelf FAT32 SD card without checking compatibility. KEYENCE CPUs are notoriously picky about SD card controller chips. Use industrial-grade KEYENCE SD cards (like the KV-M1G) for datalogging; standard consumer cards will corrupt under high write frequency and hang the CPU.
• ❗ EtherNet/IP IP Address Conflicts: The front OLED Access Window allows you to change IP addresses directly on the unit. One thing to watch out for: if you upload a program from KV STUDIO that forces a static IP in software settings, it will overwrite manual display entries upon reboot. Always match your project file IP with your physical deployment plan.
• ⚠️ Expansion Unit End Covers: Never run the KV-7500 CPU without the end cover (KV-7000C) installed on the right side of the expansion bus interface. Leaving the expansion contacts exposed causes electrical noise interference, leading to random bus errors or hardware faults.

Frequently Asked Questions (FAQ for Conversion)

Q: Can I replace a KV-5500 or KV-5000 directly with a KV-7500?

A: Not directly on the same rack. The KV-7500 belongs to the KV-7000 series backplane architecture. While you can convert the software project inside KV STUDIO easily, you will need to swap the physical CPU and expansion base units.

Q: Does the KV-7500 require a backup battery for memory retention?

A: No, main program memory is stored in non-volatile flash ROM. However, an optional battery (KV-B1) preserves real-time clock settings and volatile SRAM device values during long power outages.

Q: Can I perform online editing over the EtherNet/IP port?

A: Yes, the KV-7500 supports seamless online editing, monitoring, and firmware updating over EtherNet/IP or the USB mini-B front port without stopping execution.

Q: Is this unit new or pulled from an active system?

A: We provide factory-sealed New Surplus units, as well as thoroughly bench-tested refurbished units pulled from clean working environments. Every unit is backed by our full functional guarantee.

Q: What is the warranty coverage on this CPU?

A: Every KEYENCE KV-7500 unit comes with our comprehensive 12-month repair or replacement warranty from the date of purchase.
