Description
Core Product Summary
The Keysight / Agilent E1460A is a high-density, 64-channel relay multiplexer module built on the VXIbus standard. Occupying a single C-size VXI slot, this register-based module utilizes latching armature switches to provide configurable, high-point-count signal switching within automated test system environments.
The board features versatile wiring topologies, allowing re-configuration into 64 2-wire, 32 3-wire, 32 4-wire, or 128 single-ended latching relay channels. Engineered for test system integration, the module interfaces with standard terminal blocks and utilizes SCPI-compatible command protocols when controlled via a VXI command module or slot-0 controller.
Key Technical Specifications
| Technical Parameter | Specification Detail |
| Brand | Keysight Technologies / Agilent Technologies / HP |
| Model Number | E1460A |
| VXI Form Factor | C-size, 1-slot module |
| Module Architecture | Register-based VXI instrument |
| Switch Element Type | Armature latching relays |
| Maximum Channel Capacity | 64 channels (topology dependent) |
| Topologies Supported | 64 2-wire, 32 3-wire, 32 4-wire, or 128 single-ended channels |
| Interface / Connection | Terminal block wiring interface (QUIC / screw terminal options) |
| Programming Protocol | SCPI command set (via VXIbus controller) |
Detailed Product Overview
The Keysight / Agilent E1460A is a high-density C-size VXI multiplexer module designed for signal routing in complex automated test systems. Built on a register-based VXI architecture, the unit maximizes physical slot efficiency by providing up to 64 differential switching channels within a single-slot footprint.
The core switching subsystem utilizes latching armature relays. Because latching relays remain locked in their last commanded state without continuous current flow, they generate low internal heating during extended testing routines, preserving measurement precision across low-level analog channels. The internal relay layout supports multiple field-configurable topologies, allowing system designers to set up the board for 2-wire, 3-wire, 4-wire, or single-ended signal paths based on test requirements.
System deployment is supported by front-access screw terminal block assemblies or QUIC quick-interconnect housings. Programmers interact with the module via SCPI commands routed through a VXI slot-0 controller or command module, enabling automated open/close operations and channel scan sequences.
Engineering Selection Highlights
- VXI Standard Compliance: Operates as a single C-size slot register-based VXI module, integrating into standard VXI mainframes.
- Configurable Switching Topologies: Supports multiple internal channel groupings (such as 64 2-wire or 128 single-ended channels) without external hardware redesign.
- Latching Relay Design: Employs latching armature relays that hold switch states without continuous power draw, minimizing thermal offset generation across channels.
- High Channel Density: Accommodates high point-count automated test applications within a compact single VXI slot profile.
- System Integration Compatibility: Interfaces directly with screw terminal blocks or QUIC terminal housing options for organized fixture wiring.

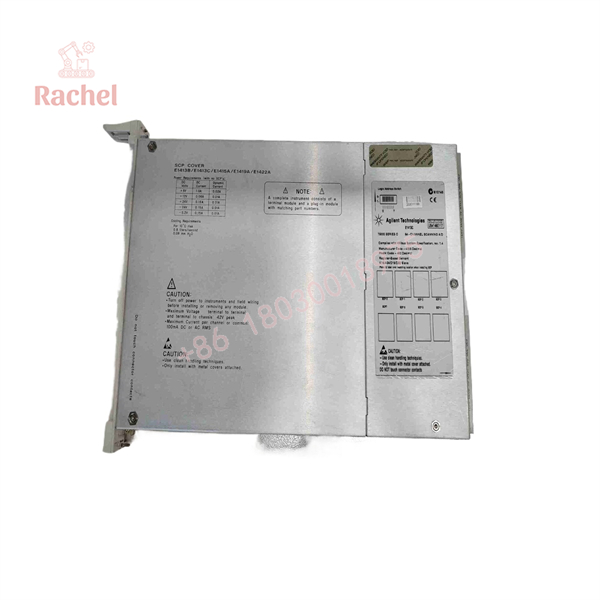

- E1460A

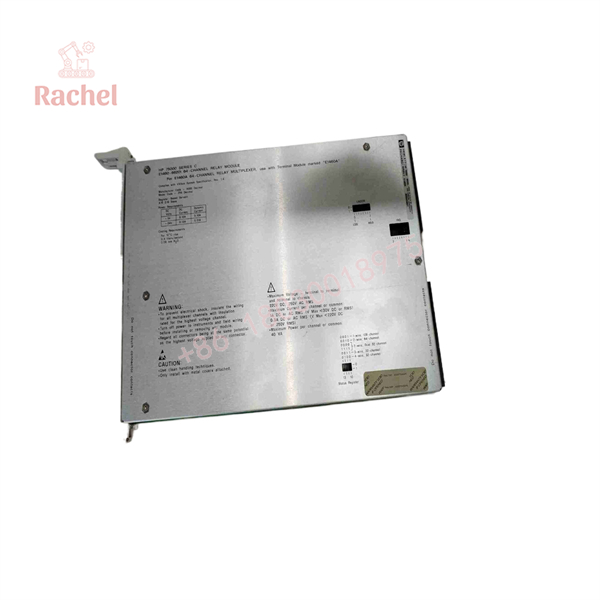

- E1460A
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Chassis Requirement | C-size VXI Mainframe | Occupies one physical C-size VXI card slot. |
| System Control | VXI Command Module / Slot-0 Controller | Translates SCPI commands into register-level VXI commands. |
| Terminal Blocks | E1460-66510 / QUIC Screw Terminal Housing | Required to route field and test fixture signals directly to the module header. |
| Software Tools | SCPI Driver / Instrument Management Libraries | Configured via VXI-compliant instrument drivers. |
Dimensions, Mounting & Connection Notes
- VXI Module Size: Standard C-size VXIbus module.
- Slot Width: Single-slot width requirement in a standard C-size VXI mainframe slot.
- Rear Connections: Connects directly into the backplane via standard VXI P1/P2 connector architecture.
- Front Connections: Mates with dedicated multi-pin front terminal blocks (e.g., QUIC terminal housing or standard screw-terminal assemblies) for field wiring access.
Applications & System Role
The Keysight Agilent E1460A serves as a central switching matrix/multiplexer element within VXI-based automated test equipment (ATE) architectures. Located between signal measurement instruments (such as digital multimeters, oscilloscopes, or signal sources) and the device under test (DUT), it automates routing across high-density connection points.
Due to its high channel density and flexible relay configurations, it is suited for automated testing environments such as cable/wire harness testing, printed circuit board (PCB) assembly functional testing, insulation resistance testing, and multi-point signal routing skids.
FAQ
What type of module is the Agilent Keysight E1460A?
The E1460A is a C-size, 1-slot, register-based VXI 64-channel relay multiplexer module.
What channel topologies can be configured on the E1460A?
It can be configured to operate as 64 2-wire channels, 32 3-wire channels, 32 4-wire channels, or 128 single-ended channels.
What type of switches are used in the module?
The unit utilizes latching armature relays.
How is external signal wiring connected to the E1460A?
Wiring is routed through detachable terminal blocks (such as screw terminal blocks or QUIC terminal block housings) that attach to the front panel.
Which command set is used to program the module?
The E1460A is programmed using SCPI (Standard Commands for Programmable Instruments) commands sent via an active VXI controller.
