Description
Product Introduction
The KOKUSAI CXP-544A KOMS-A2 is a specialized control board manufactured by Kokusai Electric for use in industrial automation and semiconductor process equipment. It functions as a main control or CPU module, handling signal processing, protection logic, and communication with higher-level systems.
In many installations it generates PWM control signals (commonly in the 20–60 kHz range) for power stages such as IGBT inverters used in induction heating or RF systems. The board integrates power management, modulation, and fault-protection circuits. Communication interfaces typically include industrial serial links (RS-485 or similar) for status feedback and setpoint exchange with PLCs or HMIs.
Because this is an OEM-specific board, exact configuration and firmware are tied to the host equipment. Matching the original revision and verifying compatibility with the existing system is essential before replacement.
Key Technical Specifications
| Parameter | Value (typical / reported) |
|---|---|
| Manufacturer | KOKUSAI (Kokusai Electric) |
| Type | Main control / CPU board |
| Power Supply | 24 VDC (common industrial range) |
| PWM / Control Output | 20–60 kHz range reported (application-dependent) |
| Communication | RS-485 / industrial serial (reported) |
| Form Factor | Compact modular board |
| Operating Temperature | Industrial range (approx. 0…60 °C typical) |
| Protection Features | Over-current, over-voltage, thermal (reported) |
| Application Focus | Semiconductor process tools, induction heating, industrial control |
| Documentation | Limited public datasheets; OEM-specific |
Note: Detailed electrical ratings and pinouts are equipment-specific. Confirm against the original unit or host system documentation.
Application Scenarios & The “Trench” Experience
It’s 02:50 on a semiconductor tool or induction-heating line and the main control board has failed. The process chamber or power stage is offline. You need a known-good CXP-544A KOMS-A2 that matches the original revision, accepts the existing connectors, and restores control without a full system redesign.
- Semiconductor Process Equipment – Etch, deposition, or related tools – Provides central control and signal processing for RF or plasma subsystems.
- Induction Heating / Power Conversion Systems – High-frequency IGBT drivers – Generates PWM pulses and handles protection logic for the power stage.
- Industrial Automation Retrofits – Specialized machines using Kokusai control architecture – Direct board-level replacement when the original unit fails.
- Spare-Part Stocking for Critical Tools – Maintaining uptime on unique OEM equipment – Keeping a verified spare reduces long lead-time risk.
Field Case Study
A semiconductor equipment service team lost the primary control board on a process tool during a weekend run. OEM lead time was measured in weeks. A tested surplus CXP-544A KOMS-A2 was sourced, installed, and verified against the original configuration. After confirming power and communication links, the tool returned to production the next shift. The experience reinforced the value of holding verified spares for these specialized boards.

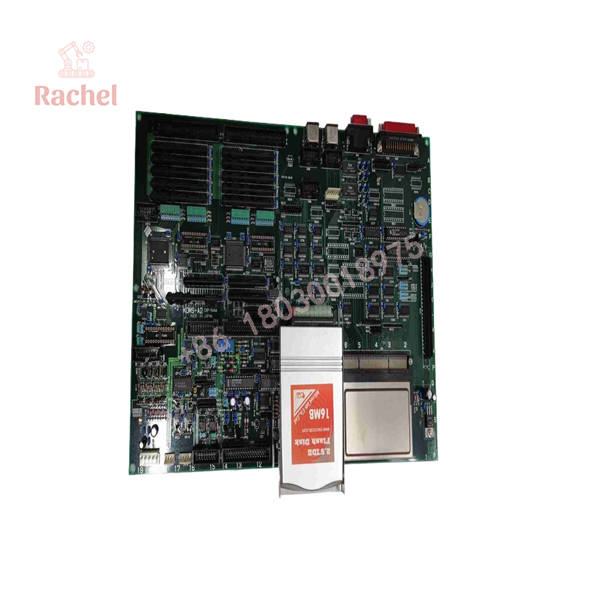

CXP-544A KOMS-A2

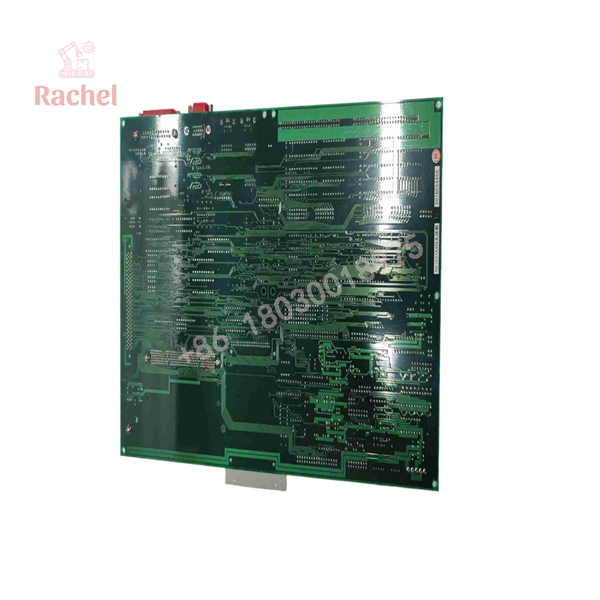

CXP-544A KOMS-A2
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; every board is inspected and functionally checked to the extent possible outside the original host system.
- Inbound Inspection – OEM labeling and revision verification, visual inspection of connectors, components, and conformal coating.
- Basic Power & Interface Checks – Powered at 24 VDC where applicable; communication ports and status indicators verified.
- Electrical Parameter Checks – Supply current, key signal paths, and protection circuit response checked where accessible.
- Revision & Configuration Notes – Hardware revision and any visible configuration settings documented.
- Final QC & Anti-static Packaging – Functional observation, serial documentation, and ESD-safe packaging for industrial shipment.
The Veteran’s Tech Trap Guide
⚠️ Revision matching is critical. These boards are often revision-sensitive. Installing a different hardware or firmware level can prevent the host system from recognizing the board or cause protection faults.
❗ Host-system specific. The CXP-544A KOMS-A2 is not a general-purpose PLC module. It is designed for particular Kokusai equipment. Confirm mechanical fit, connector pinout, and software compatibility before installation.
⚠️ Limited public documentation. Official datasheets and configuration manuals are typically available only through the equipment OEM or authorized service channels. Do not assume generic industrial-board behavior.
❗ Power and grounding. Use the correct supply voltage and proper grounding. Incorrect polarity or noisy power can damage the board or cause intermittent faults.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the CXP-544A KOMS-A2 a standard PLC or I/O module?
A: No. It is a specialized OEM control / CPU board used primarily in Kokusai semiconductor or industrial process equipment.
Q: Can it be programmed like a general PLC?
A: Programming and configuration are typically handled through the host equipment software or OEM tools, not as a standalone programmable controller.
Q: What warranty is provided?
A: 12 months from ship date on tested new-surplus units.
Q: Why is pricing sometimes lower than OEM channels?
A: Genuine Kokusai boards move through surplus and specialized industrial channels. They remain original hardware; lower pricing reflects inventory dynamics rather than refurbished or non-OEM product.
Q: How do I confirm compatibility?
A: Match the full part marking (CXP-544A KOMS-A2), hardware revision, and connector configuration against the original board. When possible, verify with the equipment service documentation.
Q: Are communication interfaces standardized?
A: Reported interfaces include industrial serial links such as RS-485. Exact protocols and pinouts are equipment-specific.
Q: Is documentation readily available?
A: Public documentation is limited. Detailed manuals and configuration data are normally obtained through Kokusai or authorized equipment service partners.
