Kollmorgen 60WKS-M240/03-PB Analog Servo Amplifier

Description

3. Product Introduction & Engineering Value

The 60WKS series was Kollmorgen’s analog-era answer to driving brushless synchronous servo motors — this predates the digital SERVOSTAR line that eventually replaced it, and plenty of these amplifiers are still doing real work in machines that never got upgraded because the mechanics still run fine.

The /03 designation in this part number identifies it as the 3-amp output variant in the 240V family, rated for 3-phase input at 0.5 kVA. It’s a 4-quadrant output stage design, built with intermediate-circuit smoothing capacitors and fuses plus an auxiliary power supply — meaning it can drive the motor in both directions and both motoring and regenerative modes, which matters for anything doing rapid reversals or controlled deceleration.

4. Technical Specifications

Verified/documented parameters:

• Output current rating: 3 A (this /03 variant specifically — other current ratings, like /06, /12, /22, /26, exist in the same family with different part suffixes)
• Rated voltage: 172 V
• Power rating: 0.5 kVA
• Phase configuration: 3-phase
• Output stage: 4-quadrant, for full-range motoring and regenerative braking
• Setpoint inputs: Dual analog setpoint inputs (SW1, SW2)
• Feedback input: Tachometer input (Ta) for closed-loop speed control
• Control inputs: Digital control inputs (separate from analog setpoint)
• Status output: Ready/Standby contact (BTB)
• Setup potentiometers: Ramp (P301), Setpoint (P302), Offset (P303), Tacho (P304, with tacho adjustment R310), AC-Gain (P305), Peak current (P306), Effective current/I²T limit (P307)
• Monitoring: I²T monitoring for thermal/overload protection
• Optional expansion: Option Board -01 (adds ramp generator, 1:1 control, and limit switch inputs PSTOP/NSTOP); optional external 24V auxiliary voltage supply
• Mounting: Module backplane-based (F60WKSMB/R60WKSMB), designed for multi-axis rack installations (e.g., 19″ rack module housing up to 9 units)
• Compatible peripheral equipment: Isolation transformers, mains filter, and 56WK-P240/80-B power supply unit documented as companion hardware

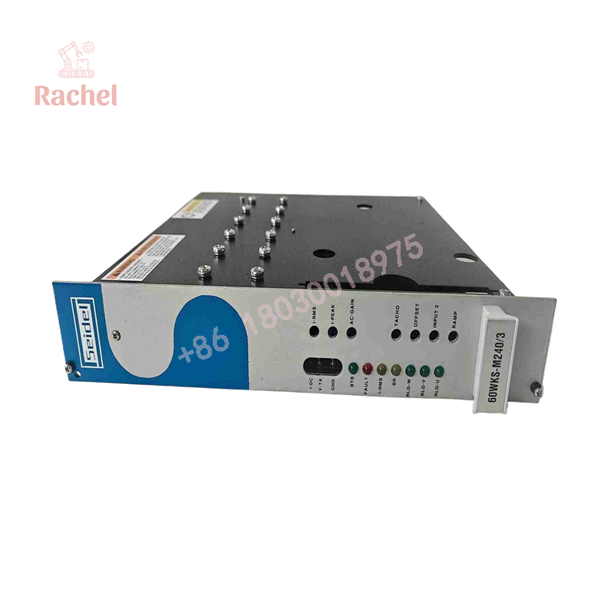

60WKS-M240/03-PB

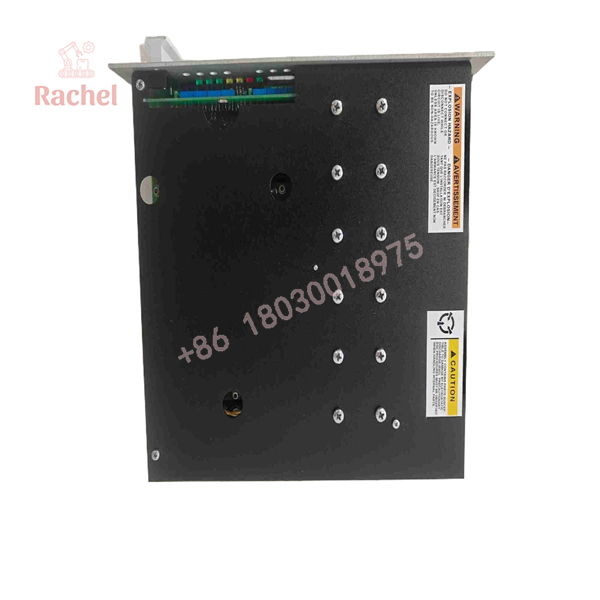

60WKS-M240/03-PB

5. Field Application & The “Trench” Experience

Illustrative scenario — not a specific reported incident:

A common troubleshooting pattern with analog servo amplifiers like this: an axis starts drifting or oscillating after years of stable operation, and the instinct is to replace the amplifier outright. Before doing that, checking the setup potentiometers — particularly Tacho (P304) and AC-Gain (P305) — against the original commissioning settings is worth doing first. Analog potentiometer-based tuning can drift slightly with age and vibration in a way that a digital drive’s stored parameters wouldn’t, and a small potentiometer adjustment sometimes resolves what looks like a hardware fault.

Specific application scenarios:

• Multi-axis rack installations, where several 60WKS amplifiers share a single 19″ rack module and a common 56WK-P power supply
• Legacy machine tool or packaging equipment axes still running original analog Kollmorgen drive hardware, where full digital retrofit isn’t justified by the mechanics’ remaining service life
• Systems requiring 4-quadrant regenerative braking, such as indexing or reversing applications where rapid direction changes are routine

6. Transparency SOP: QA & Testing

Generic verification framework for surplus/refurbished 60WKS amplifiers:

1. Visual and connector inspection — check module backplane connector condition, potentiometer condition, and capacitor condition (age-related electrolytic capacitor degradation is a real concern on analog drives this old)
2. Power-up and Ready/Standby (BTB) contact test — confirm the unit reaches ready state correctly
3. Setpoint and tacho input functional test — verify SW1/SW2 setpoint response and Ta tachometer feedback function correctly on a bench setup
4. I²T monitoring verification — confirm thermal/overload protection trips correctly under a simulated overload condition

(General framework — substitute your actual documented QA process where it differs.)

7. The Veteran’s Tech Trap Guide

⚠️ Current rating suffix matters — /03, /06, /12, /22, /26 are not interchangeable. Ordering “a 60WKS-M240” without matching the exact suffix means mismatching the amplifier’s output current rating to your motor’s actual requirement.

⚠️ Analog potentiometer drift is a real long-term maintenance item. Unlike a digital drive with stored parameters, tuning on this amplifier lives in physical potentiometers (Ramp, Setpoint, Offset, Tacho, AC-Gain) that can shift slightly over years of vibration and thermal cycling. Document your original settings if you ever need to replace or recommission a unit.

PRO TIP: If you’re troubleshooting instability, check the option board configuration (-01, if installed) before assuming a core amplifier fault — the ramp generator and limit switch functions on that board interact with the base unit’s control loop in ways that aren’t always obvious from the main potentiometers alone.

⚠️ This is a 4-quadrant regenerative design — the ballast/intermediate circuit smoothing components handle real energy during braking. Don’t assume a straightforward swap to a non-regenerative amplifier type would behave the same way in an application built around this unit’s braking characteristics.

8. Dynamic FAQ

Q: What’s the difference between the /03, /06, and /12 variants?
The suffix number indicates the output current rating in amps — /03 is the 3A variant covered here; /06, /12, /22, and /26 are higher-current variants in the same family, each a distinct part number.

Q: Does this amplifier support regenerative braking?
Yes — it’s a 4-quadrant output stage design with intermediate-circuit smoothing capacitors and fuses, supporting both motoring and regenerative operation.

Q: What motor types is this amplifier designed for?
Brushless synchronous servo motors, per Kollmorgen’s own description of the 60WKS series.

Q: Is a tachometer required for this amplifier to function?
The unit includes a dedicated tachometer input (Ta) for closed-loop speed feedback — check your specific application’s control configuration to confirm whether tacho feedback is required or optional for your setup.

Q: What warranty applies to used/refurbished stock?
Varies by seller — some resellers list 2-year warranties on repaired units; confirm the specific term at time of purchase.

Q: Is this part still manufactured by Kollmorgen?
No — the 60WKS series is a retired/legacy analog product line, superseded by Kollmorgen’s digital SERVOSTAR series. Current sourcing is through surplus, refurbished, and repair channels.
