Description
Product Introduction & Engineering Value
The AHD70E4-44S is a high-speed Kollmorgen AC servo motor intended for demanding motion-control equipment. Its published rating reaches 8,000 RPM, with a 350 V electrical rating, 22 A current rating, and 1.8 Nm torque specification. The model is also listed as discontinued, making exact-part-number sourcing relevant when maintaining older machinery.
For a replacement, the motor nameplate is only the starting point. The connected servo amplifier, feedback arrangement, mechanical mounting, shaft configuration, and motor winding data all need to match the existing motion system. AHD70E4-44S should therefore be treated as an exact replacement component, not as a generic 8,000-RPM servo motor.
Technical Specifications
- Manufacturer: Kollmorgen / Kollmorgen Industrial
- Part Number: AHD70E4-44S
- Motor Type: AC servo motor
- Series: AHD
- Maximum Speed: 8,000 RPM
- Voltage Rating: 350 V
- Current Rating: 22 A
- Nominal Torque: 1.8 Nm
- Feedback: Resolver/feedback system associated with the motor configuration
- Approximate Weight: 3.33 kg / 7.35 lb
- Status: Discontinued according to current secondary-market listings
- Application: Closed-loop industrial motion control
The 8,000-RPM, 350-V, 22-A, and 1.8-Nm specifications are independently repeated by multiple current parts databases.
Important specification note: Publicly available listings do not provide enough authoritative information to establish every mechanical dimension, winding constant, feedback pinout, or exact mating amplifier. Those values should be taken from the motor nameplate and the original Kollmorgen machine documentation before commissioning.
Field Application & The “Trench” Experience
Picture an older automated production machine running a high-speed positioning axis. The original AHD70E4-44S develops a bearing or feedback fault, and production stops. The maintenance team finds that the motor is no longer a current catalog item. A physically similar replacement is available, but its electrical and feedback characteristics do not match the existing amplifier.
That is where an exact AHD70E4-44S replacement has practical value. Instead of redesigning the axis around a different motor, the maintenance team can preserve the existing mechanical interface and servo architecture, subject to verification of the drive and feedback compatibility.
Current industrial parts listings classify this exact model as a discontinued AC servo motor.
Specific application scenarios
- High-speed CNC auxiliary axes — rapid positioning where an 8,000-RPM motor rating is relevant.
- Automated material-handling mechanisms — rotary indexing and positioning equipment requiring closed-loop speed and torque control.
- Legacy production machinery — replacement of an obsolete Kollmorgen motor without immediately redesigning the complete servo axis.
- Specialized machine-tool motion systems — applications where motor/drive matching and resolver feedback are already established.

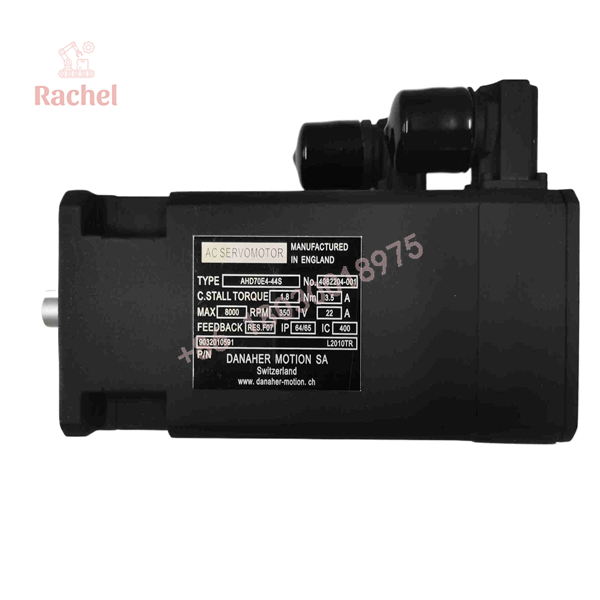

AHD70E4-44S

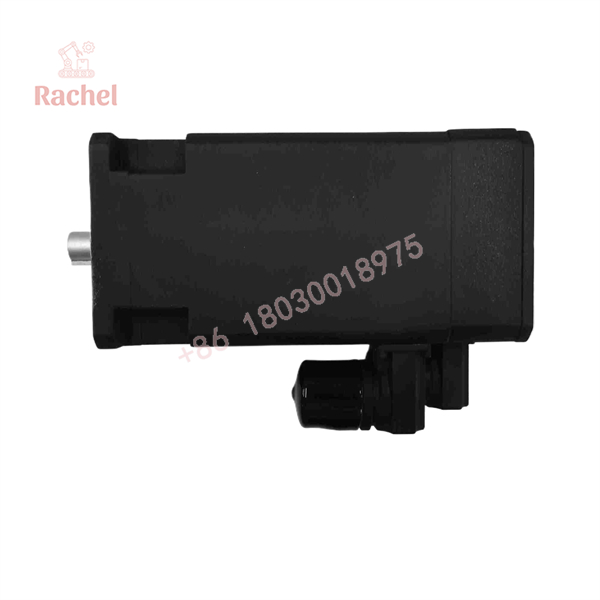

AHD70E4-44S
Transparency SOP: QA & Testing
For a new-surplus AHD70E4-44S, inspection should focus on both electrical condition and mechanical integrity:
1. Identity verification
Check the AHD70E4-44S model marking, manufacturer label, serial information, and any additional motor code before shipment.
2. Mechanical inspection
Inspect the shaft, flange, bearings, connector, housing, mounting holes, and shaft seal area. Look for corrosion, impact damage, excessive shaft play, or signs of contamination.
3. Electrical testing
Check winding-to-winding resistance and insulation resistance using procedures appropriate for the motor and test equipment. Values should be evaluated against the applicable Kollmorgen documentation rather than against an arbitrary generic servo-motor threshold.
4. Feedback verification
The feedback circuit should be checked for continuity and correct signal behavior. If a compatible drive/test bench is available, verify feedback tracking during controlled motor rotation.
5. Functional test
Where equipment permits, run the motor through a controlled low-speed test before progressing toward its rated operating range.
This distinction is important because marketplace listings offer the AHD70E4-44S in several conditions, including never-used original packaging, never-used repackaged stock, and refurbished units.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Confusing the motor with the amplifier.
Some online listings incorrectly describe the AHD70E4-44S as a servo drive or amplifier. The stronger available evidence identifies it as an AC servo motor. Verify the nameplate before ordering a replacement component.
⚠️ Trap #2 — Matching only voltage and RPM.
A 350-V, 8,000-RPM motor is not automatically interchangeable with another motor having the same headline ratings. Feedback type, winding characteristics, torque constant, mechanical dimensions, shaft configuration, and drive compatibility all matter.
PRO TIP: Record the complete motor nameplate before removing the failed unit. If the machine uses a legacy Kollmorgen amplifier, capture the amplifier model and existing motor parameters at the same time.
⚠️ Trap #3 — Applying insulation testing without considering the feedback electronics.
Do not blindly megger every terminal on a servo motor assembly. Isolate feedback circuitry and follow the applicable manufacturer’s test procedure. Incorrect test connections can damage sensitive feedback components.
Dynamic FAQ
Is the Kollmorgen AHD70E4-44S a servo motor or servo drive?
It is an AC servo motor. Current industrial parts references classify the AHD70E4-44S under servo motors and specify 8,000 RPM, 350 V, 22 A, and 1.8 Nm.
What is the maximum speed of the AHD70E4-44S?
The published specification is 8,000 RPM.
What are the key electrical ratings?
Current reference listings identify 350 V, 22 A, and 1.8 Nm as the principal published ratings. These values should not be used alone to configure a replacement drive; the complete motor/drive application data should be verified.
Is the AHD70E4-44S discontinued?
Yes. Current Radwell and other industrial parts listings identify the model as discontinued by the manufacturer.
What should I verify before purchasing a replacement?
Verify the complete AHD70E4-44S part number, nameplate data, feedback arrangement, shaft and flange dimensions, connector configuration, and the connected servo amplifier. For legacy equipment, a photograph of the motor nameplate is particularly useful for avoiding a near-match.
Is New Surplus the same as factory-new?
No. New Surplus generally refers to unused inventory that is being sold outside a current factory supply channel. Ask for the actual nameplate photographs, serial information, packaging condition, and test report. Warranty terms are supplier-specific; for example, current marketplace listings distinguish between unused and refurbished condition and provide their own warranty terms.
