Product Introduction & Engineering Value
Tuning high-response automation machinery requires a compact drive amplifier capable of delivering rapid current loops without introducing thermal drift or high-frequency noise. The Kollmorgen CP310250 servo drive serves as a dependable motion control workhorse, leveraging advanced digital sinewave commutation to guarantee smooth low-speed profiling and high-speed dynamic tracking.
Engineered for seamless compatibility with Kollmorgen Goldline and similar brushless servo motors, this unit integrates cleanly into multi-axis cabinet layouts. Automation specialists rely on its proven architecture and onboard software environment to shorten setup times and maintain strict kinematic precision on legacy production lines.
Technical Specifications
- Drive Family: Kollmorgen SERVOSTAR CD / PD Motion Control Series
- AC Line Input Voltage: 190 to 230V AC, 3-phase (line-to-line)
- Continuous Output Current: 10 Amps RMS
- Peak Output Current: 20 Amps RMS (approx. 2-second duration)
- Control Architecture: Advanced digital signal processor (DSP) core with sine-wave commutation
- Physical Dimensions: Height: 256 mm (10.08 in) | Width: 99 mm (3.90 in) | Depth: 163 mm (6.42 in)
- Programming / Setup Tool: Kollmorgen MotionLink software environment via serial communication port
- Diagnostic Interface: Front-panel status display and fault code LED indicators

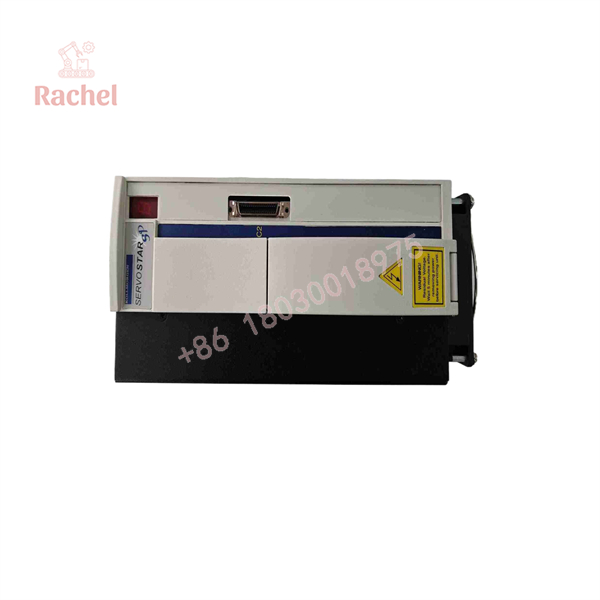

CP310250

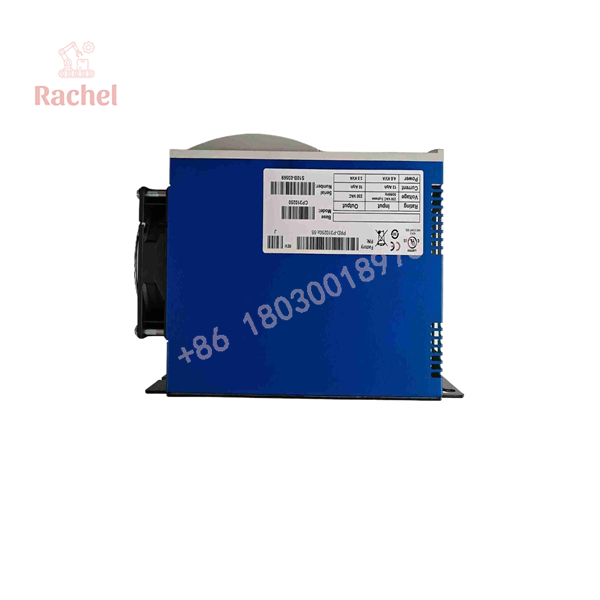

CP310250
Field Application & The “Trench” Experience
During a high-speed production run at a packaging facility, a legacy multi-axis cartesian handler faulted out permanently when an internal power stage failed on an older servo amplifier. Sourcing a complete control architecture upgrade would have meant days of unplanned downtime and extensive rewiring. The maintenance team located a verified, bench-tested surplus Kollmorgen CP310250 unit in local inventory, transferred the parameter set via MotionLink, and mounted the drive onto the subpanel. The system cleared its fault register instantly upon power-up, matching the kinematic profile of the adjacent axes and bringing the packaging line back to full capacity within an hour.
Targeted Application Scenarios:
- High-Speed Electronic Assembly Pick-and-Place Cells: Driving multi-axis positioning stages requiring rapid settling times and high peak torque delivery.
- Precision CNC Auxiliary Indexing Axes: Managing smooth rotational velocity control under varying cutting loads.
Transparency SOP: QA & Testing
Step 1: Visual Board & Component Scan
Comprehensive optical inspection of power capacitors, gate driver ICs, and heat sink thermal interfaces for signs of stress or contamination.
Step 2: Bus Voltage & Power Stage Check
Controlled application of 3-phase AC input voltage via a variable auto-transformer to verify pre-charge circuit operation and DC bus ripple suppression.
Step 3: Dynamic Motor Load Simulation
Coupling the drive to an active dynamometer test bench running a matching brushless servomotor to validate encoder feedback handling and current loop tuning.
Step 4: Thermal Stress Burn-In
Continuous operation under a simulated load cycle for 24 hours to eliminate infant mortality risks prior to warehouse packaging.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ DC BUS CAPACITOR DISCHARGE HAZARD: Never disconnect motor power cables or touch the internal terminal block immediately after powering down the CP310250. High-voltage energy stored in the internal DC bus capacitors requires several minutes to bleed off completely. Always verify zero voltage with a multi-meter before servicing.
PRO TIP: When replacing a failed drive, always check the physical jumper and parameter settings for resolver or encoder feedback type. Mismatched feedback configurations can cause immediate runaway or over-speed fault codes upon the first enable command.
Dynamic FAQ
- Q: Can the CP310250 be programmed using standard PC software?
- A: Yes, the drive communicates with the Kollmorgen MotionLink software package via a serial connection interface, allowing users to configure gains, limits, and operational modes effortlessly.
- Q: Is this drive compatible with single-phase input power, or is 3-phase strictly required?
- A: The CP310250 is engineered for 190–230V AC 3-phase operation. Running it on single-phase input without proper derating or auxiliary filtering can lead to excessive DC bus ripple under heavy loads.
- Q: Are your replacement CP310250 units brand new or refurbished?
- A: Because this specific generation is largely transitioned by the OEM, our stock comprises verified New Surplus and rigorously reconditioned, fully tested units.
- Q: What warranty coverage comes with this drive?
- A: Every CP310250 unit is backed by our comprehensive 12-month full replacement warranty covering all functional performance aspects.
