Description
Core Product Summary

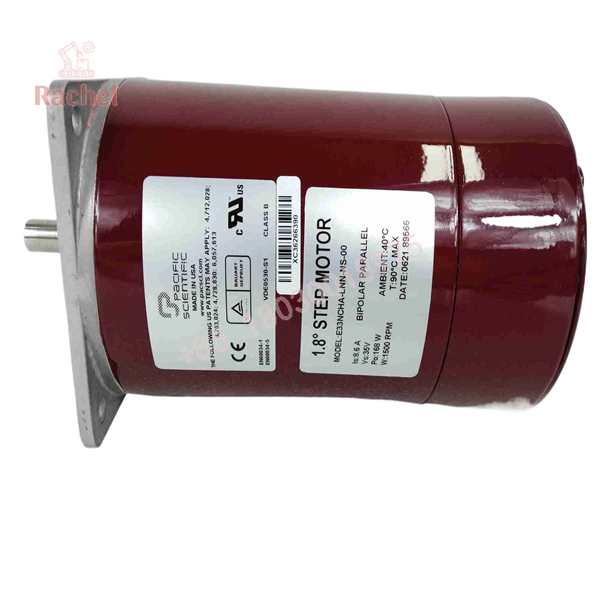

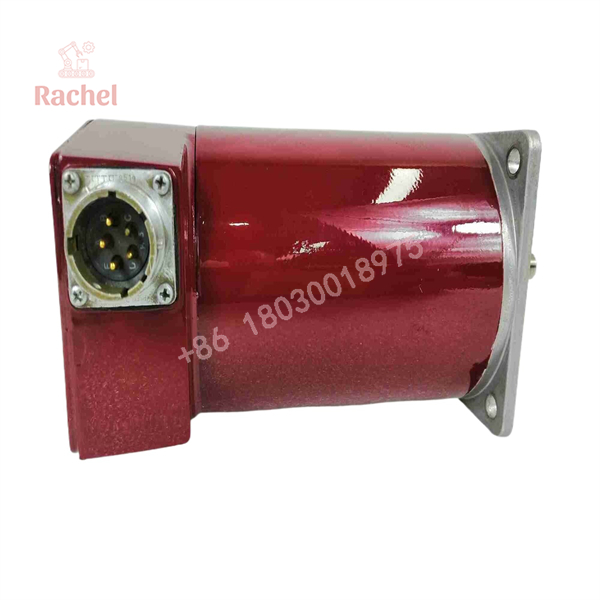

The Kollmorgen E33NCHA-LNN-NS-00 is a three-stack hybrid stepper motor from the Kollmorgen E Series. It uses SIGMAX construction, a smooth shaft, a standard NEMA end bell, and a NEMA 34 flange.
The motor is a two-phase, 1.8° step-angle stepper motor with Class B insulation and winding type A. Its four leadwires are parallel-connected, with a rated current of 8.6 A in the parallel configuration and 6.64 Nm holding torque. The model is identified as a stepper motor without encoder feedback.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Kollmorgen |
| Model | E33NCHA-LNN-NS-00 |
| Product type | Hybrid stepper motor |
| Series | Kollmorgen E Series / E3H3 Series |
| Frame size | NEMA 34, 3.38 × 3.38 in flange |
| Motor construction | SIGMAX, 3-stack |
| Shaft type | Smooth shaft |
| End bell | Standard NEMA |
| Step angle | 1.8° |
| Phases | 2 |
| Winding type | A |
| Leadwire configuration | 4 leadwires, parallel connection |
| Rated current, parallel | 8.6 A |
| Holding torque | 6.64 Nm |
| Insulation class | Class B |
| Feedback | None; open-loop stepper motor |
| Weight | 3.8 kg |
The E33NCHA-LNN-NS-00 is documented as a three-stack SIGMAX stepper motor with a NEMA 34 flange, 8.6 A parallel rated current, and 6.64 Nm holding torque.
Engineering Selection Highlights
- NEMA 34 flange → confirms the mechanical mounting interface and motor-frame class for replacement or new-machine design.
- 1.8° step angle → provides 200 full steps per revolution, which defines the base positioning resolution before microstepping.
- 8.6 A parallel rated current → the stepper drive must be selected and configured for the motor’s parallel winding connection and current setting.
- 6.64 Nm holding torque → establishes the static torque capacity; application torque, acceleration, and duty cycle must be evaluated separately.
- Three-stack SIGMAX construction → identifies the motor’s physical length and torque-producing stack configuration.
- Smooth shaft and no encoder feedback → the motor is intended for open-loop stepper control unless an external feedback device is added by the system designer.
- Four parallel-connected leadwires → wiring must match the parallel configuration; incorrect series or parallel connection changes current and torque behavior.
E33NCHA-LNN-NS-00
E33NCHA-LNN-NS-00
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
|---|---|---|
| Motor type | Two-phase hybrid stepper motor | Requires a compatible two-phase stepper drive. |
| Winding connection | Four leadwires, parallel connection | The drive current setting must match the 8.6 A parallel rating. |
| Step angle | 1.8° | The control system must account for 200 full steps per revolution. |
| Feedback | No integrated encoder feedback | Position verification requires an external feedback device if closed-loop operation is required. |
| Mounting interface | NEMA 34 flange, smooth shaft | The mechanical coupling and mounting bracket must match the NEMA 34 frame and smooth-shaft design. |
The available references identify the motor as an open-loop stepper motor with a NEMA 34 flange, 1.8° step angle, and parallel winding connection.
Dimensions, Mounting & Connection Notes
| Item | Verified Data |
|---|---|
| Flange size | NEMA 34, 3.38 × 3.38 in |
| Shaft | Smooth shaft |
| Motor stack | 3-stack SIGMAX construction |
| Leadwires | 4, parallel connection |
| Weight | 3.8 kg |
The motor uses a NEMA 34 flange and smooth shaft, with four parallel-connected leadwires. The available references do not provide verified shaft-diameter, body-length, connector, or cable-exit dimensions for publication.
Detailed Product Overview
The Kollmorgen E33NCHA-LNN-NS-00 is a three-stack hybrid stepper motor in the Kollmorgen E Series. Its SIGMAX construction and NEMA 34 flange identify it as a larger-frame stepper motor intended for industrial motion applications requiring relatively high holding torque. The model is documented with a smooth shaft, standard NEMA end bell, Class B insulation, and winding type A.
The motor’s electrical configuration is central to drive selection. It has four leadwires connected in parallel and a rated current of 8.6 A in that configuration. The drive must therefore be capable of supplying and regulating the required phase current, and its current setting must match the parallel winding arrangement. The 1.8° step angle corresponds to 200 full steps per revolution; microstepping, if used, is a function of the selected stepper drive rather than an inherent motor specification.
The E33NCHA-LNN-NS-00 is identified as a stepper motor without encoder feedback. In an open-loop system, position is inferred from the number and frequency of command pulses, so load conditions, acceleration profile, and available torque margin are important design considerations. If an application requires position verification or closed-loop correction, the system designer must add an appropriate external feedback solution; the available references do not identify an integrated encoder for this exact model.
Mechanically, the motor uses a NEMA 34 flange and smooth shaft. The three-stack SIGMAX construction contributes to its 6.64 Nm holding torque and 3.8 kg weight. Mounting and coupling must preserve shaft alignment and avoid side loading; the available references do not provide verified shaft dimensions or bearing-load limits for this exact model.
Applications & System Role
The E33NCHA-LNN-NS-00 is the actuator in an open-loop stepper-motion system. A compatible stepper drive converts pulse and direction commands into phased motor currents, causing the motor to rotate in discrete 1.8° steps.
Its NEMA 34 frame, 6.64 Nm holding torque, and three-stack construction make it a fit for industrial positioning axes that require substantial static torque without integrated feedback. Typical fit scenarios include indexing, positioning, and coordinated motion applications where the drive and mechanical system are designed for open-loop stepper operation.
FAQ
What is the Kollmorgen E33NCHA-LNN-NS-00?
The Kollmorgen E33NCHA-LNN-NS-00 is a NEMA 34, three-stack SIGMAX hybrid stepper motor from the Kollmorgen E Series.
What is its step angle?
It has a 1.8° step angle, equivalent to 200 full steps per revolution.
How much holding torque does it provide?
Its documented holding torque is 6.64 Nm.
What current does it require?
The motor has a rated current of 8.6 A in its parallel winding configuration.
Does it include an encoder?
No. It is identified as a stepper motor without encoder feedback.
What frame size does it use?
It uses a NEMA 34 flange, measuring 3.38 × 3.38 in.
What type of shaft does it have?
It has a smooth shaft and a standard NEMA end bell.
How is it connected?
It uses four leadwires with a parallel winding connection.
